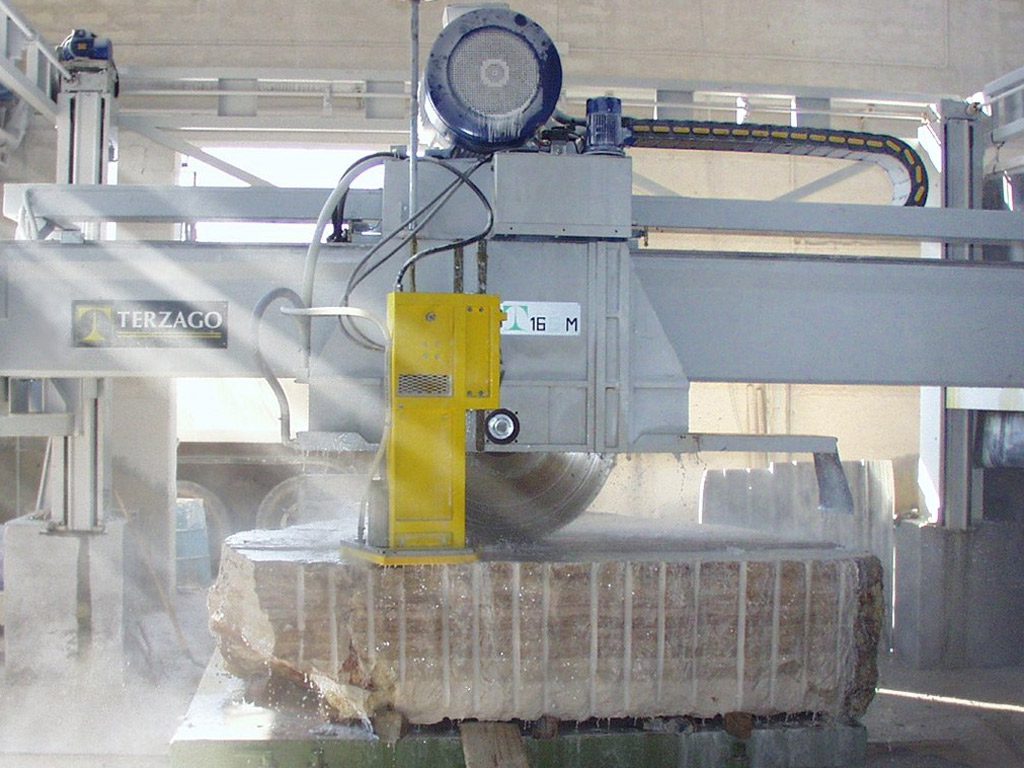

Block Cutters
All tradition Terzago block cutters are built with dimensional generosity, with strong cast iron bridge for a time performance of undisputed length.
Built in the four columns frame or in the two columns frame.
For marble and granite, mono or multi discs.
FEATURES
- Machine suitable for both small and large workshops for marble/granite.
- Small-dimension motor connected directly to blade, with inverter.
- Blade unit/bridge action electronically controlled on bearings, by encoder.
- Head vertical action with auto-braking motor, controlled by encoder on prismatic guide.
- Motorised rotating bench with auto-positioning 0° – 360°; blocking with hydraulic brakes.
- 0° – 90° tilting head even for small runs, auto-blockable in position with hydraulic brake.
- P 55 LX cabinet houses electronic and electrical control / right-left slide, forward-backward bridge movement, head rising/lowering, bench rotation.
- Automatic axes control with fast reaction; translation of bridge; automatic table rotation.
- Electronic tilting of blade cutting unit.
- Single marble run / small increasing granite steps according to programmed depth.
- Selection of 20 different cutting widths to be repeated up to 99 times.
- Cutting, and blade head return limit switches self-setting electronically.
- Beam movement limit switches self-setting.
- Automatic bench tilt programming for continuous circular or orthogonal cutting.
- Through runs or part runs possible.
- All axes can be moved together to reduce lime wastage.
- Profiles can be set directly from the keyboard; concave/convex arches on rising/descending tilts of any angle.
- Linear and circular profiles for horizontal/vertical axes of the blade head possible.
- Resident menu cycles: cross-cutting, facing – slab-cutting, concave-convex, shaping, interpolated shaping.
- Specific prog. with CAD/CAM, converter, and ISO, for profiles and shapes drawn on CAD connected externally in serial RS 232 (optional)
Technical Details
| T14 SM | T16 SM | |
|---|---|---|
| Blade longitudinal stroke | 4000 mm | 4000 mm |
| Useful cutting stroke with 1000 mm blade | 3500 mm | 3500 mm |
| Blade vertical stroke | 2200 mm | 2200 mm |
| Bridge translation | 2800 mm | 2800 mm |
| Max. vertical blade diameter | 1400 mm | 1600 mm |
| Horizontal disc diameter | 400 mm | 400 mm |
| Depth of vertical cuts - max. | 510 mm | 610 mm |
| Blade motor power | 110 kW | 110 kW |
| Total auxiliary motors power | 7 kW | 7 kW |
| Water consumption at 3 bar | 250 l/min | 250 l/min |
| Weight | 13500 kg | 13800 kg |
