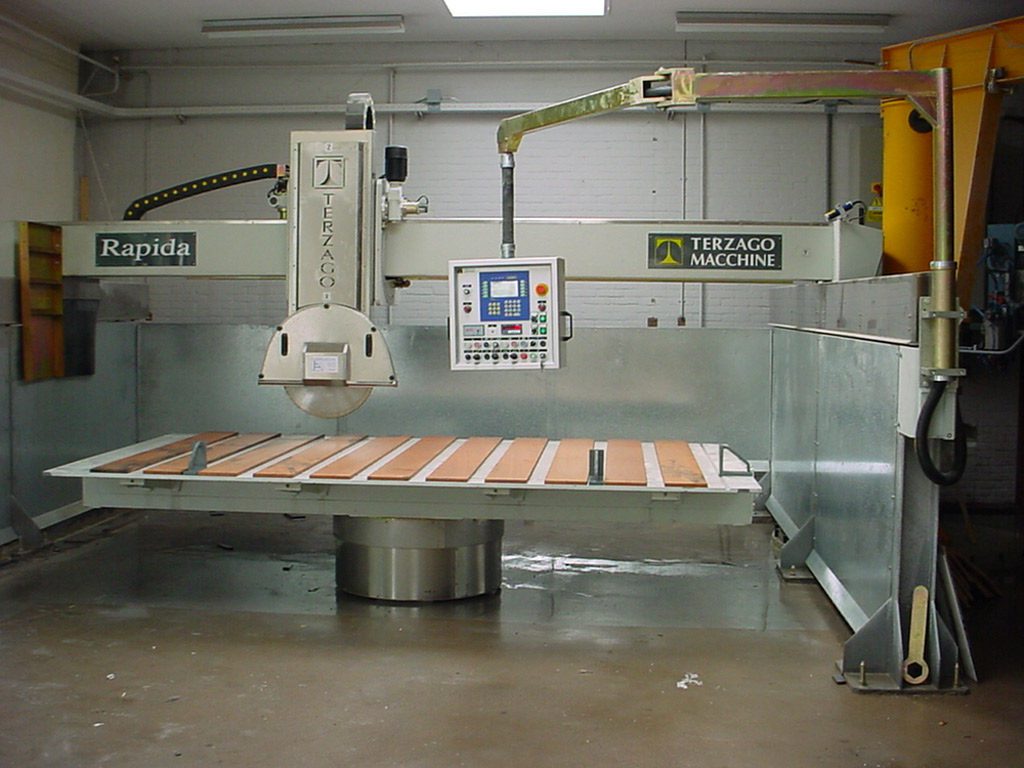

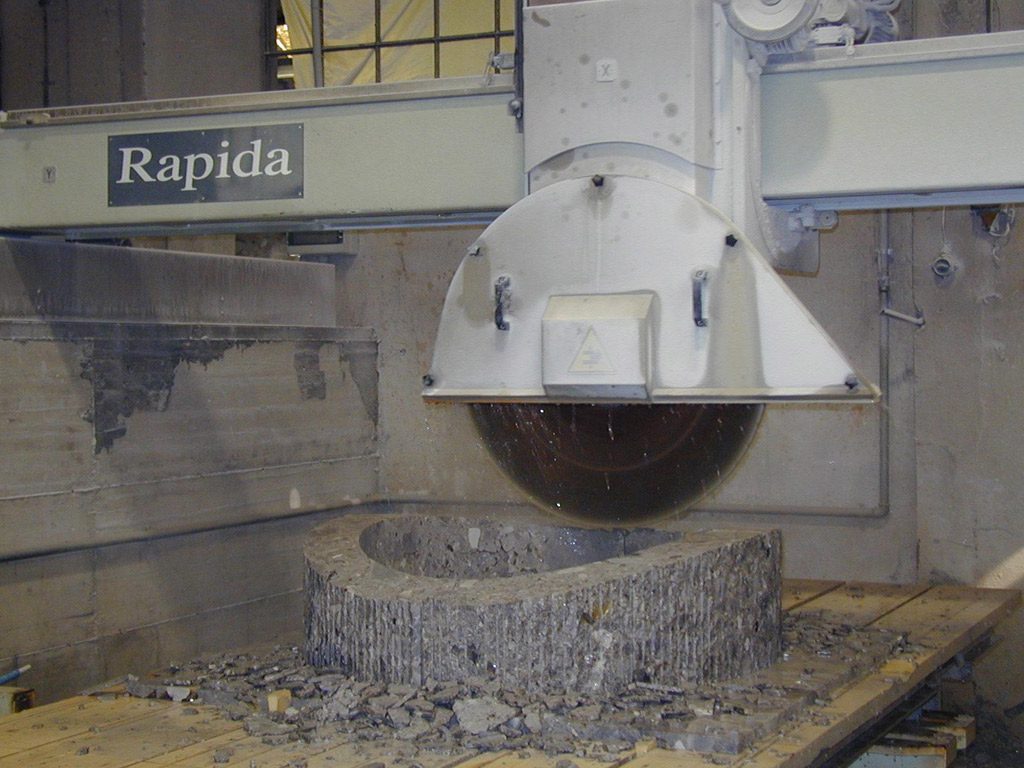

Automatic Bridge Cutting Saw
Bridge saw machine with main parts built in cast iron
With a PLC touch screen for easy and intuitive use of program for cutting and moving.

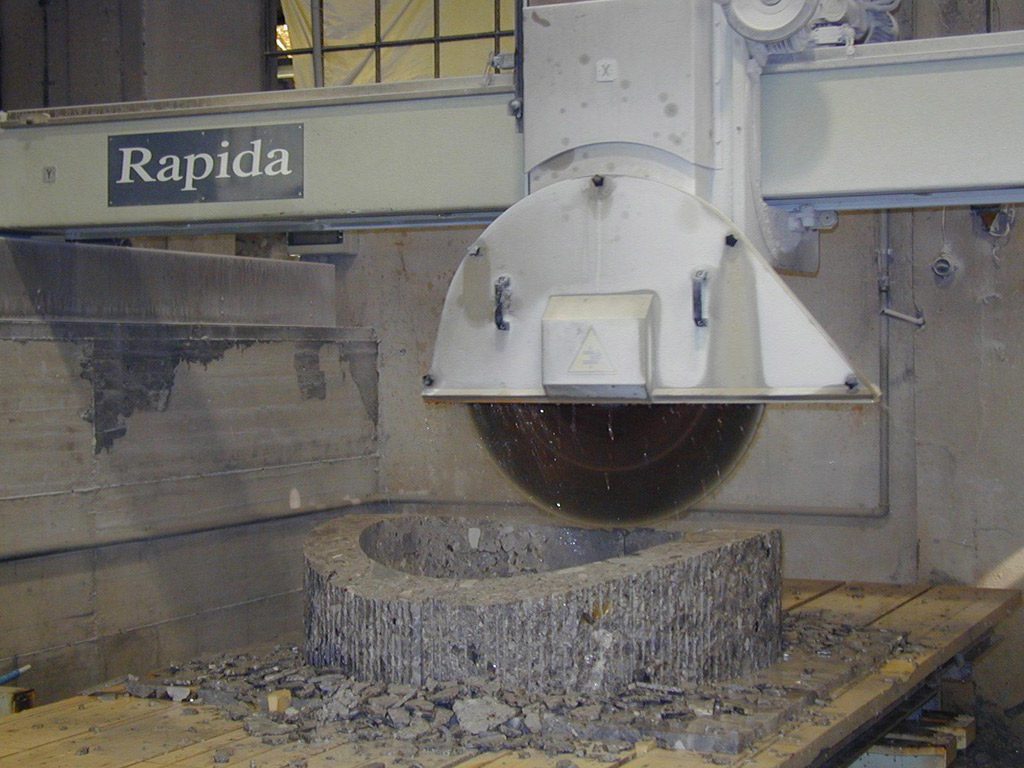

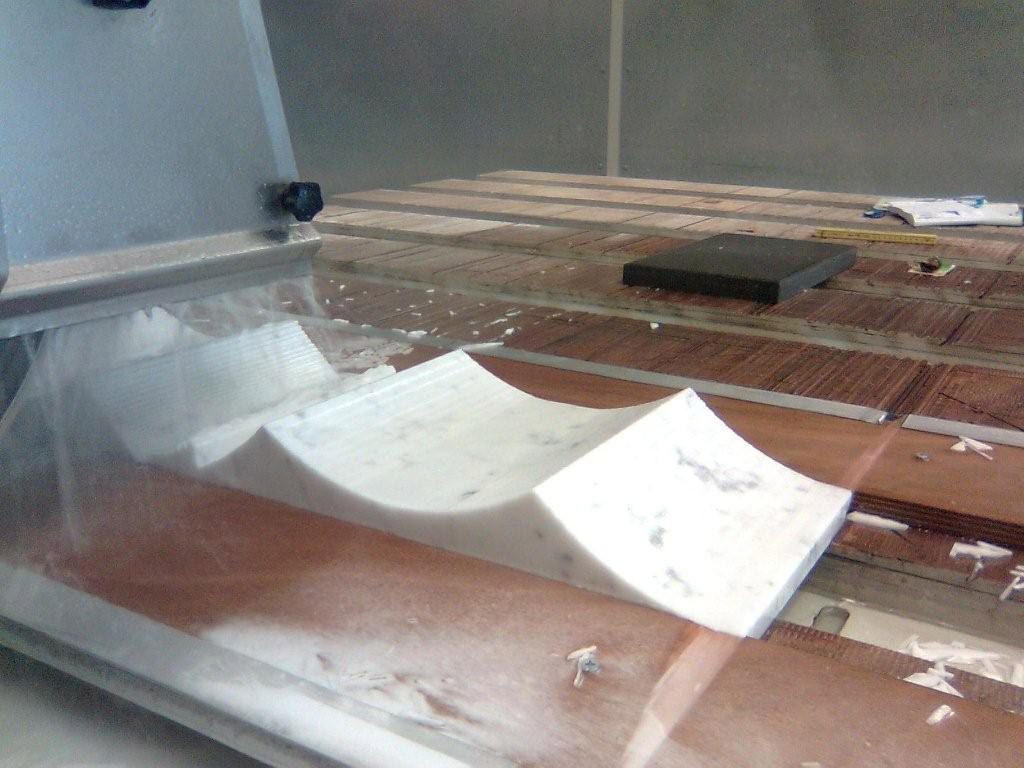

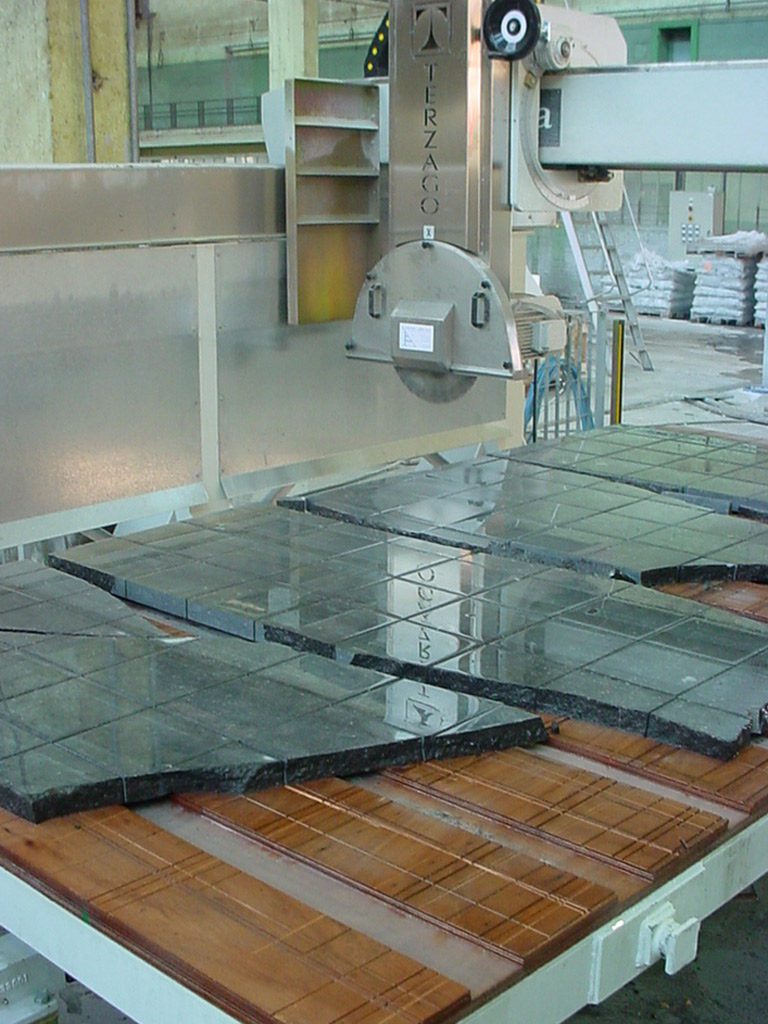

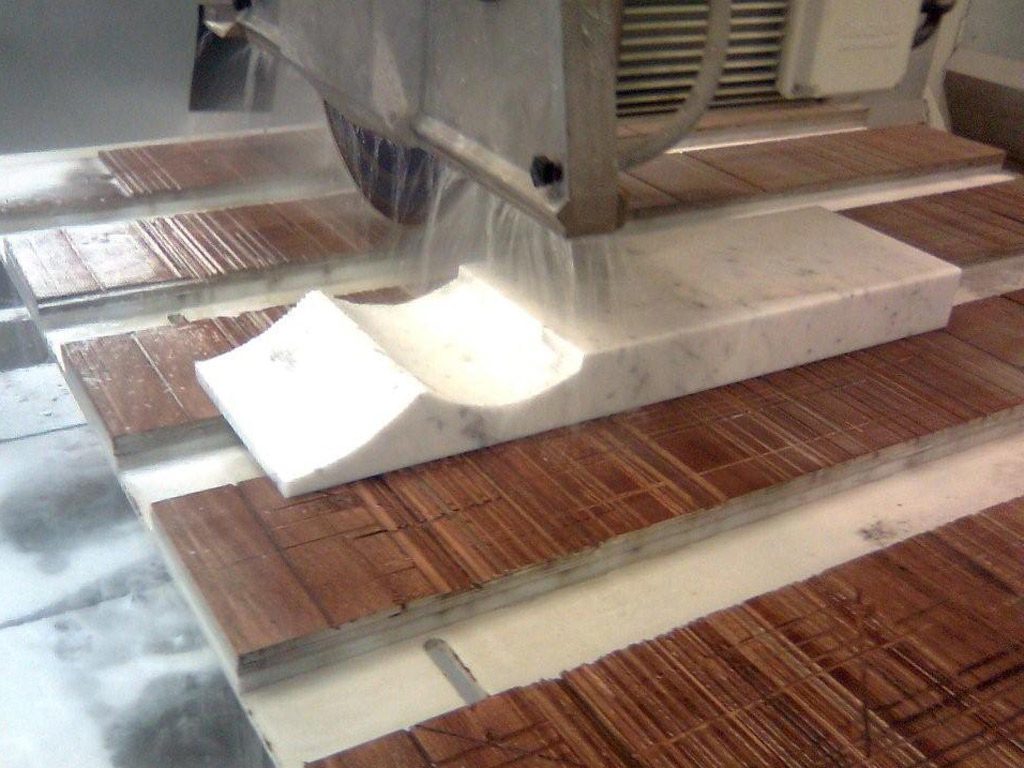

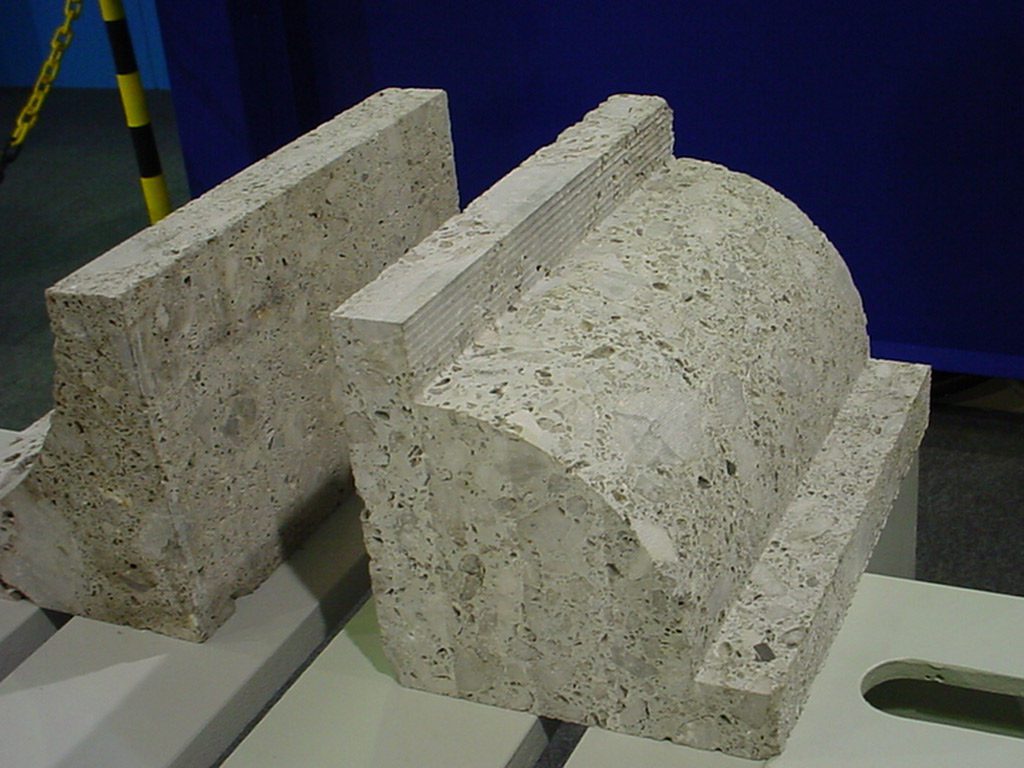

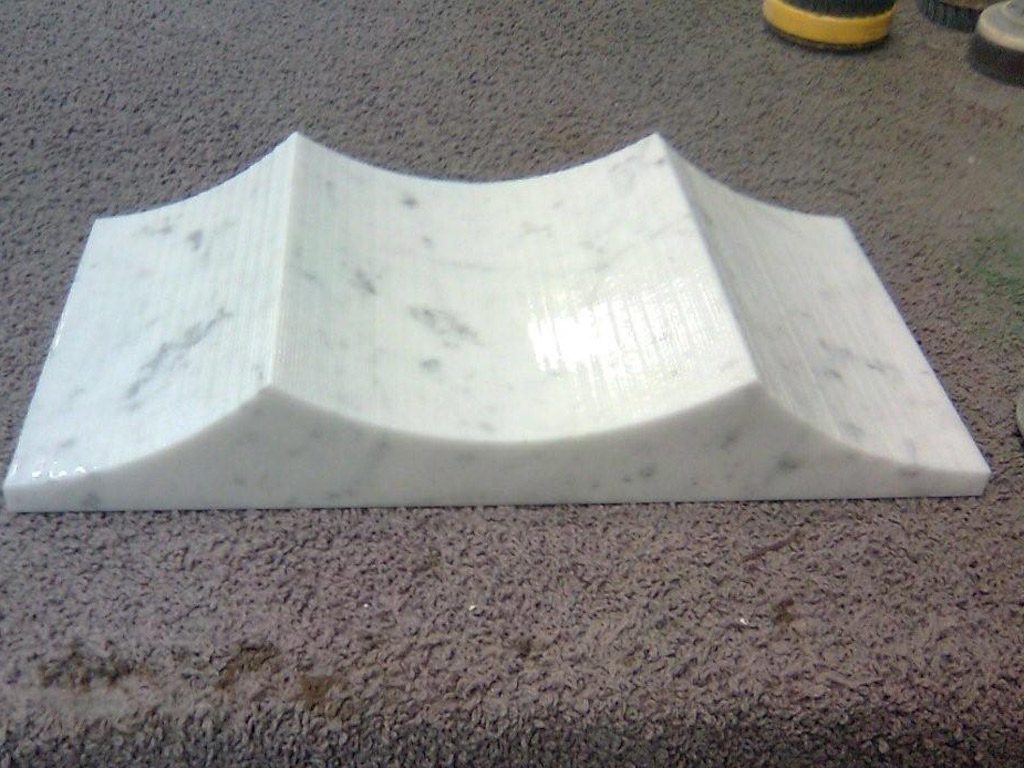

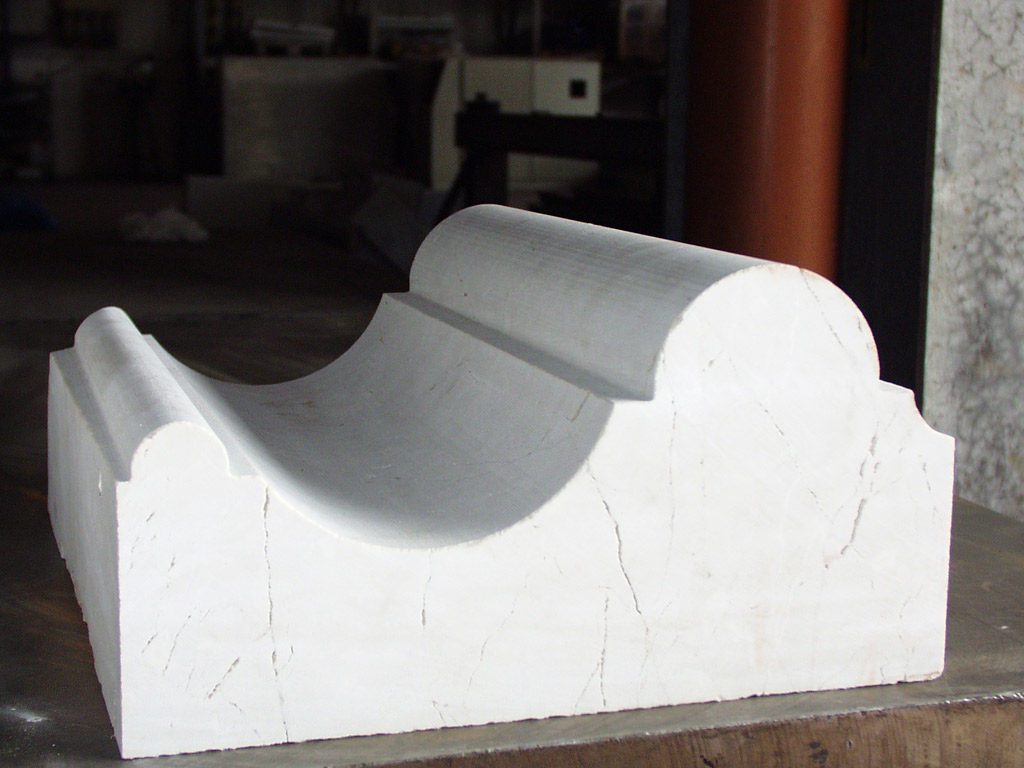

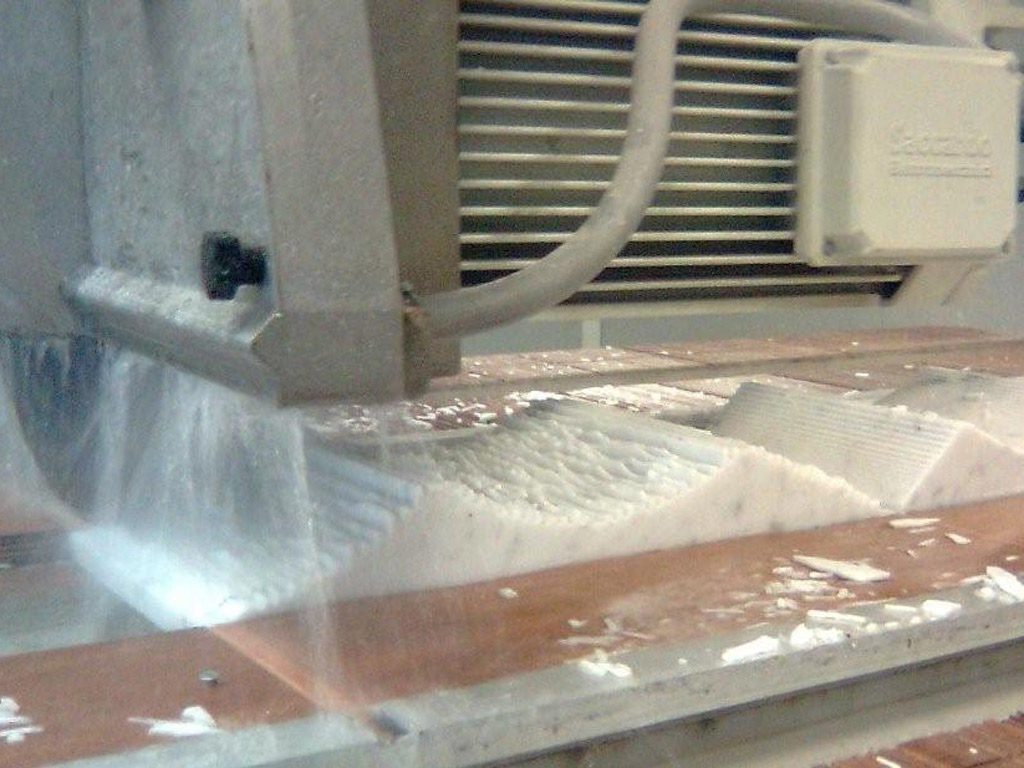

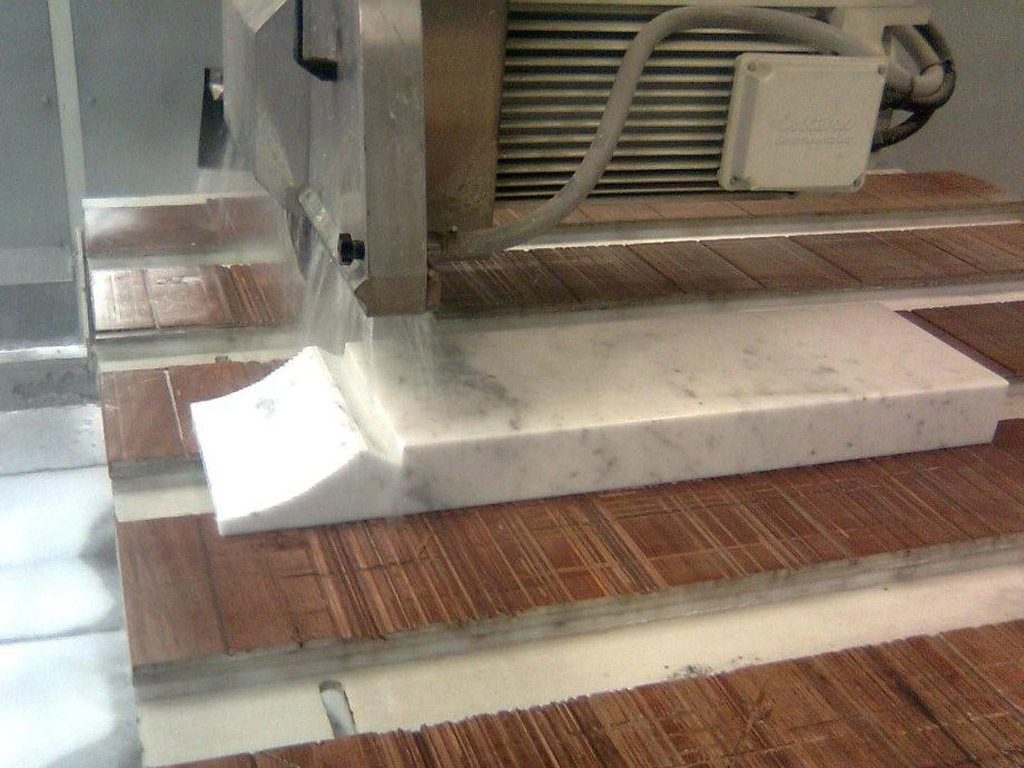

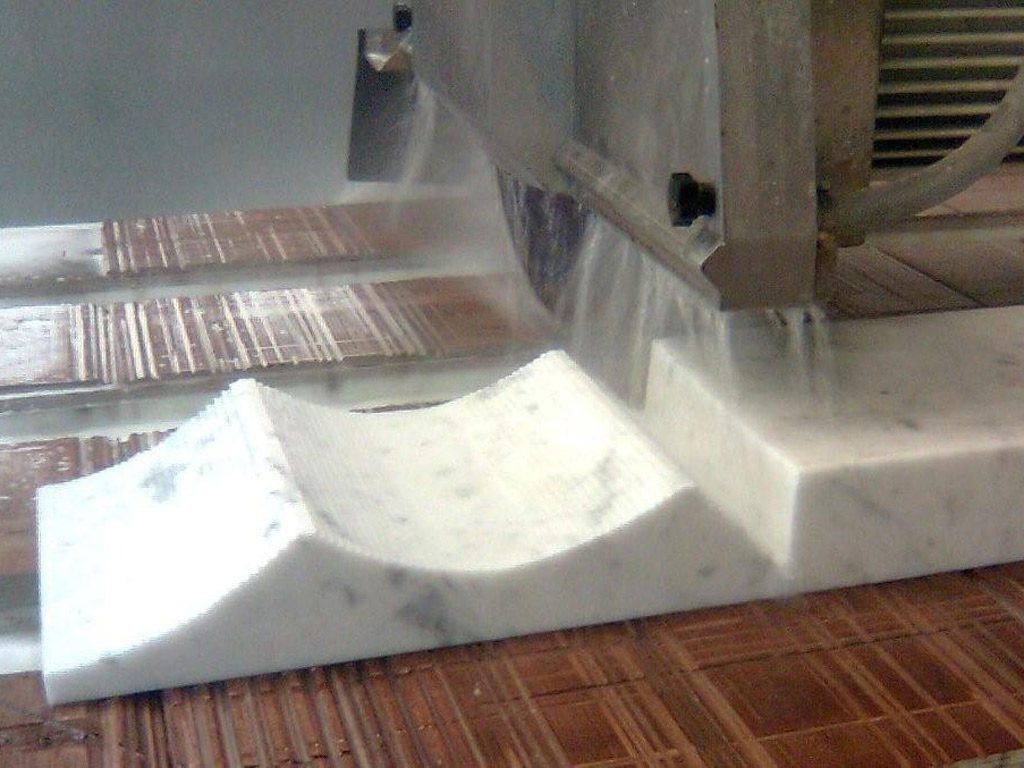

It is possible to execute linear shaping.
Manual table rotation and head tilting.
FEATURES
- Economical to install (steel or cement walls) and easy to use: for marble, granite and similar stones.
- Construction built in cast iron for stability, low resonance and durability.
- Motor of reduced dimensions co-axial with blade.
- Blade holder slide electrically powered on bearings; guides well-protected from water and dust.
- Electric bridge translation on sliding rails protected by everlasting belt and guards.
- Mono-axial positioning for bridge translation with encoder.
- Vertical movement of head with 2-speed self-braking motor on prismatic guides, controlled by encoder.
- Motorised rotating table, with fixed locks every 90° can be blocked in any position 0° – 360°.

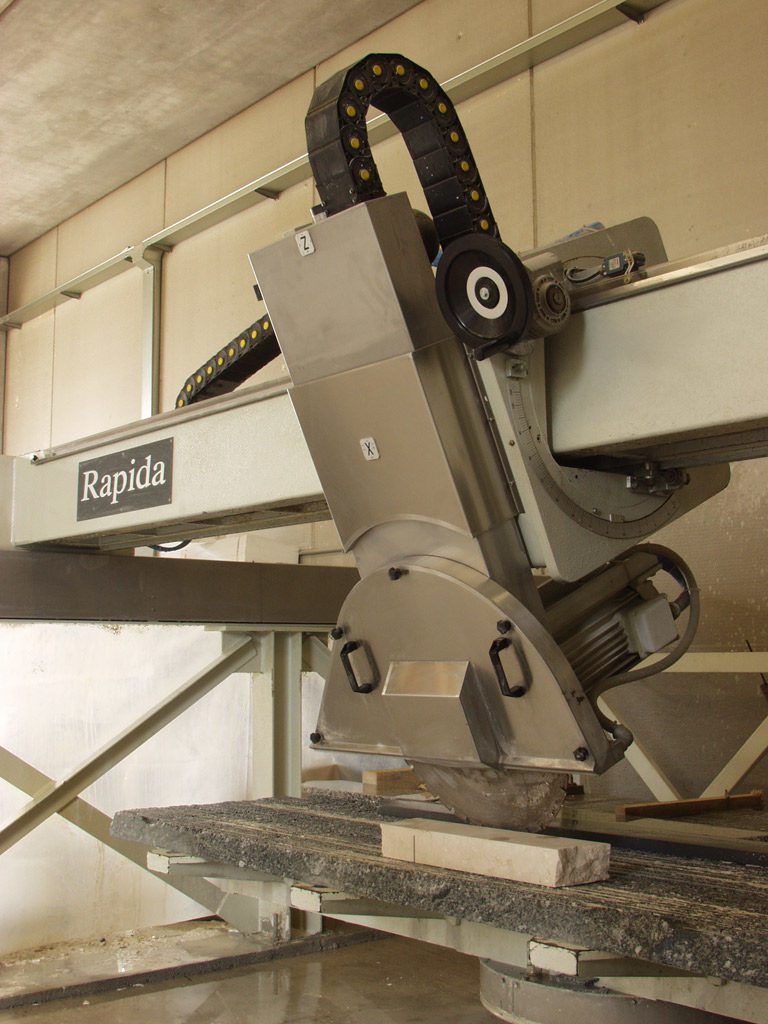

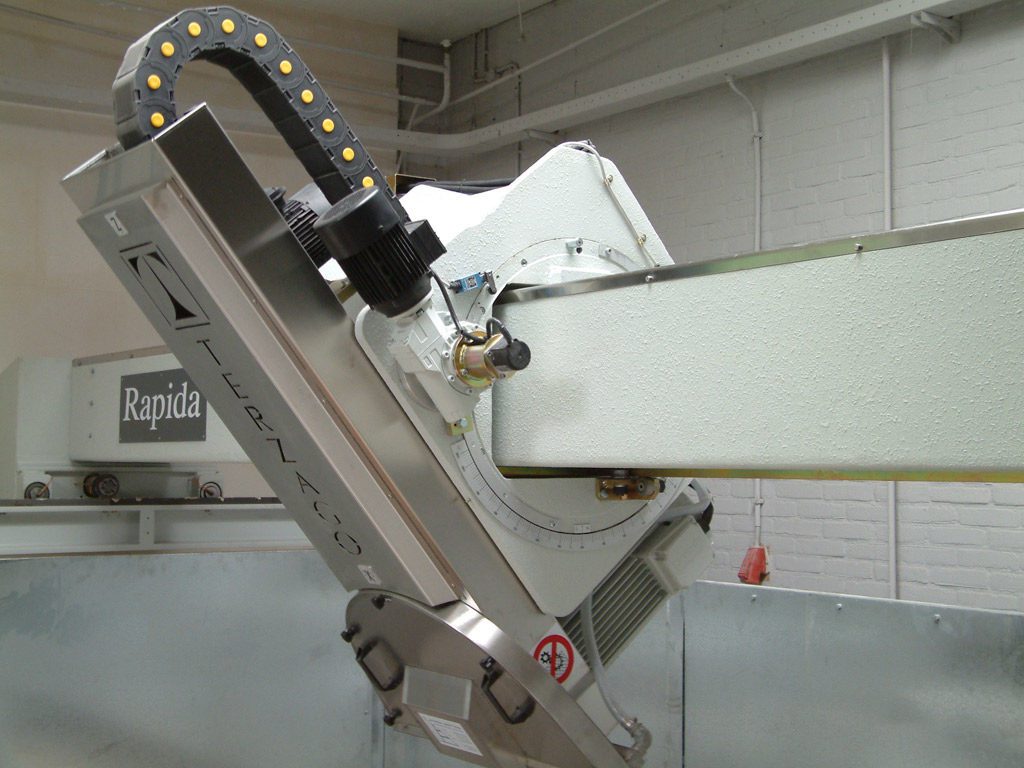

- Manual tilting head from 0° to 90° to cut marble and granite even in short passes.

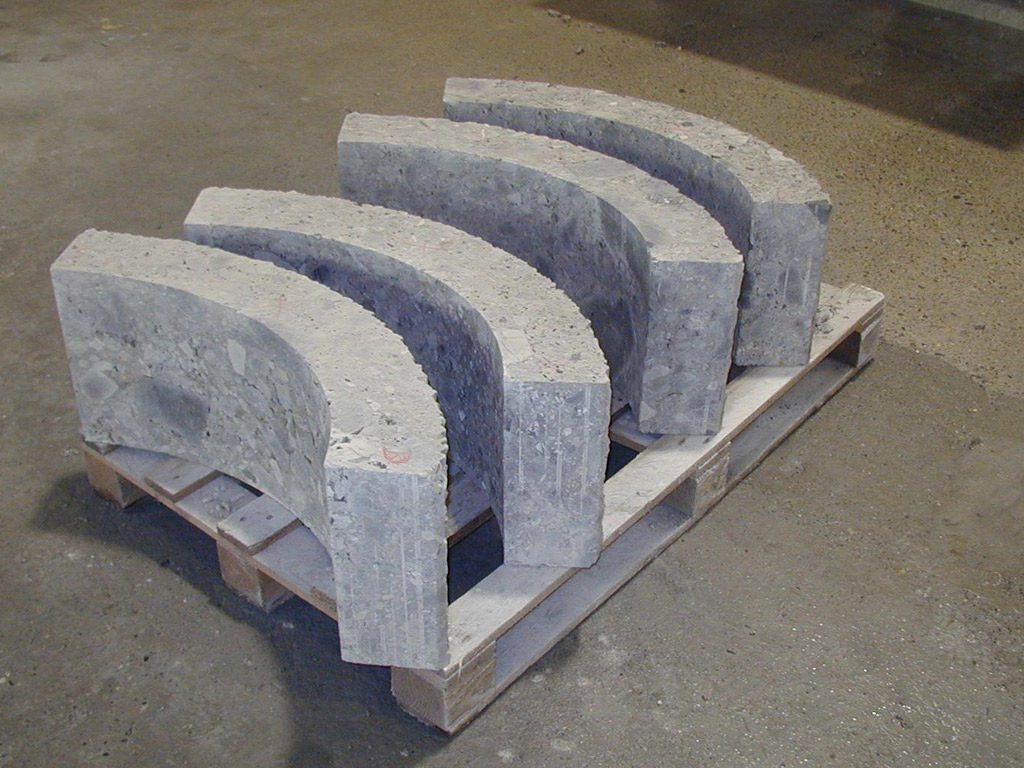

- The PLC with a graphic touch screen allows programming and interpolation of two axis for concave-convex shaping, contouring, shaving and control of table rotation.
- Soundproofed blade guard.
Technical Details
| Description | Data |
|---|---|
| Blade stroke | 3600 mm |
| Blade vertical stroke | 400 mm |
| Max. Ø blade marble | 725 mm |
| Max. Ø blade granite | 450 mm |
| Cutting Depth (marble) | 250 mm |
| Cutting Depth (granite) | 115 mm |
| Cast iron table size | 3000 x 1500 mm |
| Motor power at 1435 revs. | 22 kW |
| Voltage/Frequency | 400/50 V/Hz |
| Overall dimensions | 5000 x 5500 x 2600h mm |
| Weight | 4200 kg |
