LM 65

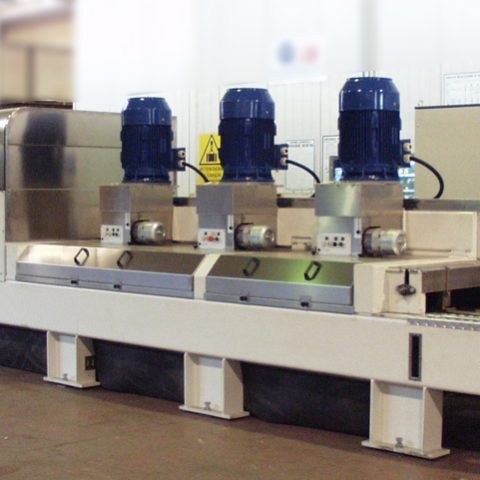

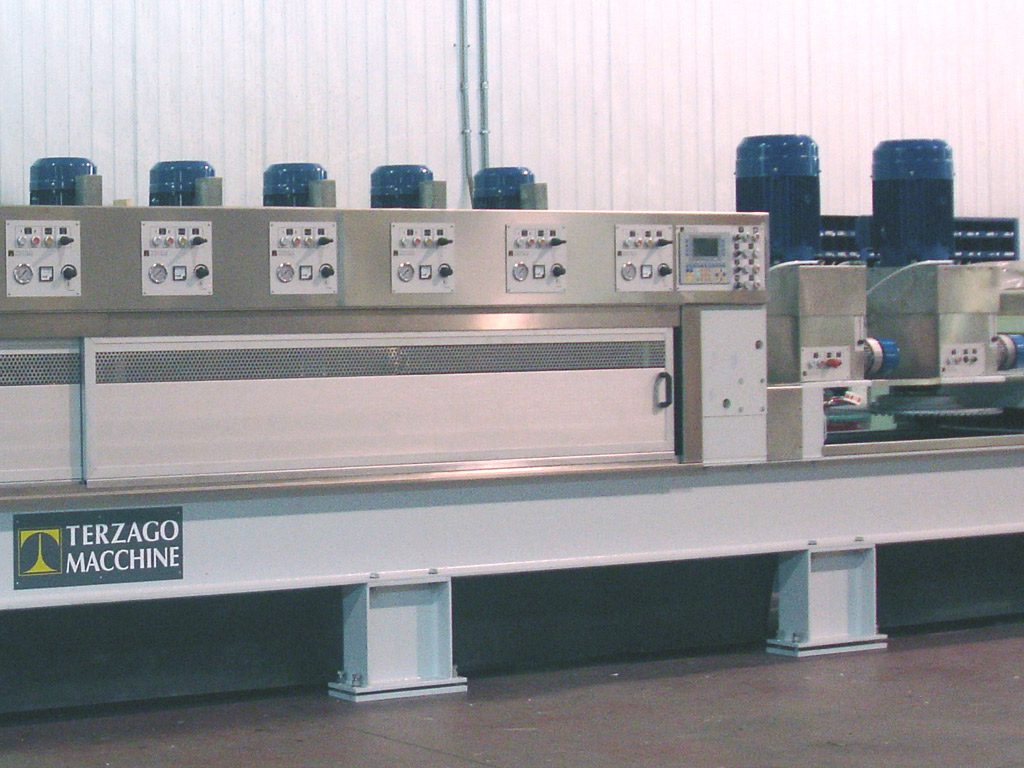

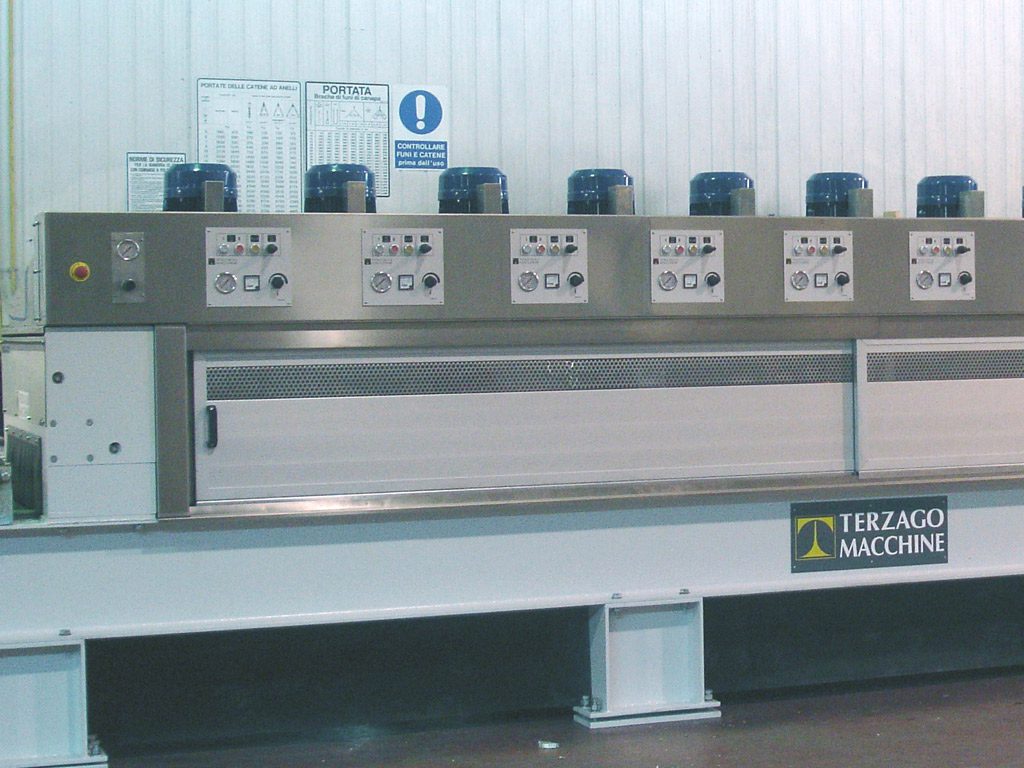

LM 65 – Calibrating Polishing Machine for Marble

Machine suitable for calibrating and polishing semi-worked strips and/or sized pieces in marble or similar stones.

Machine base in electrowelded steel plates with fully worked top covered and protected by stainless steel covering over which conveyor belt passes.

Up/down movement automatic as material passes thanks to electronic programmer to set lenght of time and position.

The machines are built on specific request of customers matching any kind of polishing process or any kind of natural stone.

The main structure covered in electro-welded steel sheets.
Conveyor belt seated on a level surface, covered in stainless steel.
The belt runs on two cylinders – one at the entrance to stretch belt, one at the exit with an electronically controlled variable speed gear motor.

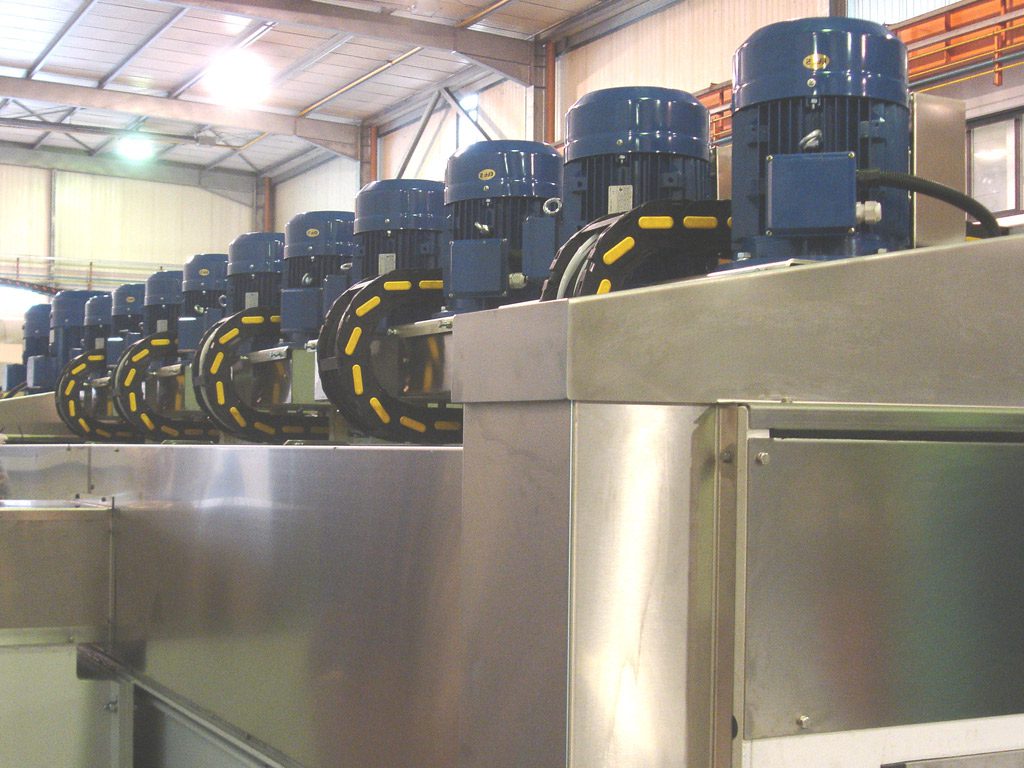

Operating heads centrally housed on a strong, electro-welded beam.
Pneumatic vertical movement on the chrome column.
Transverse spindle unit beam movement powered by an electronically controlled electric motor.

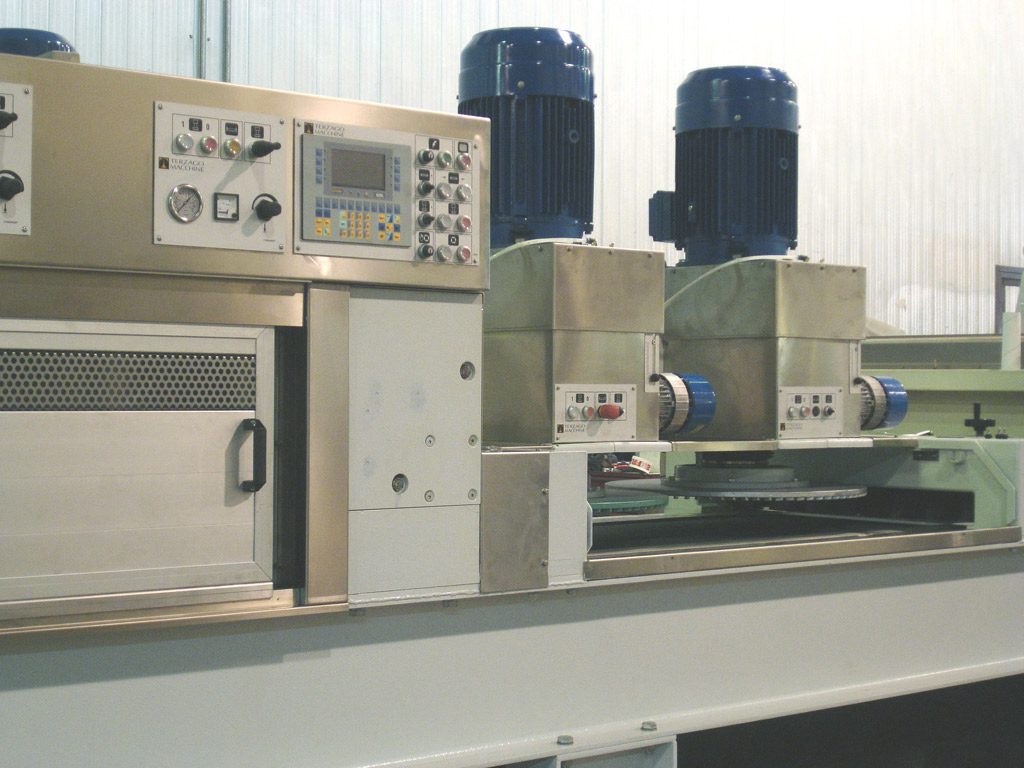

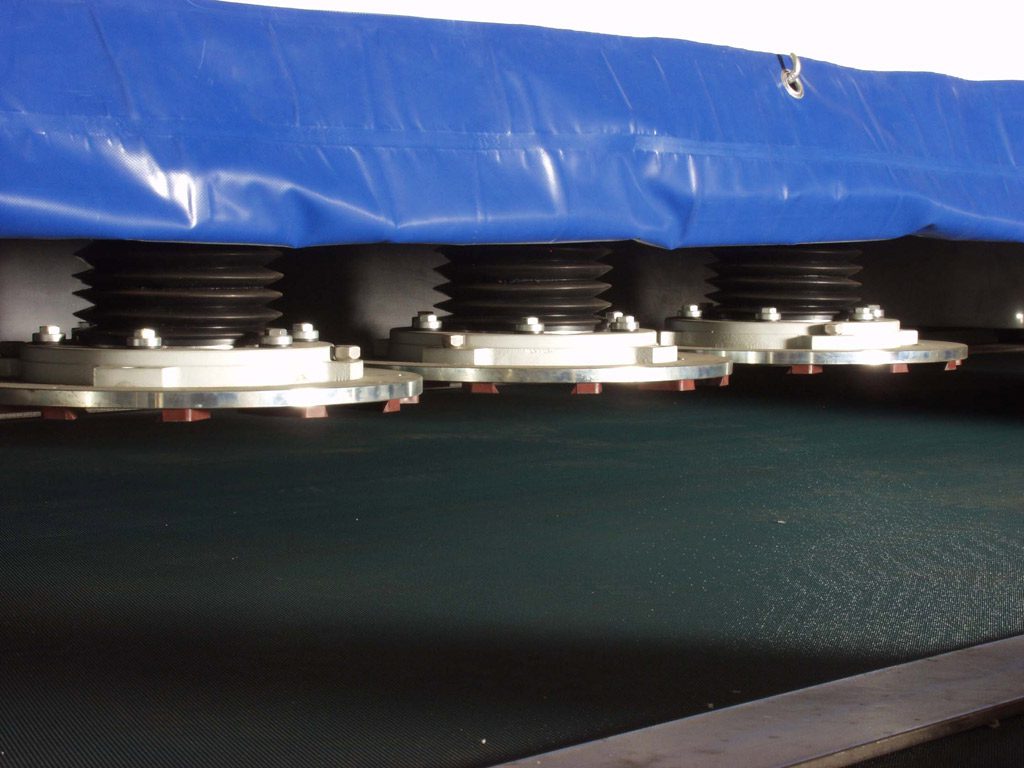

Beam at the front bearing diamond calibrating heads.

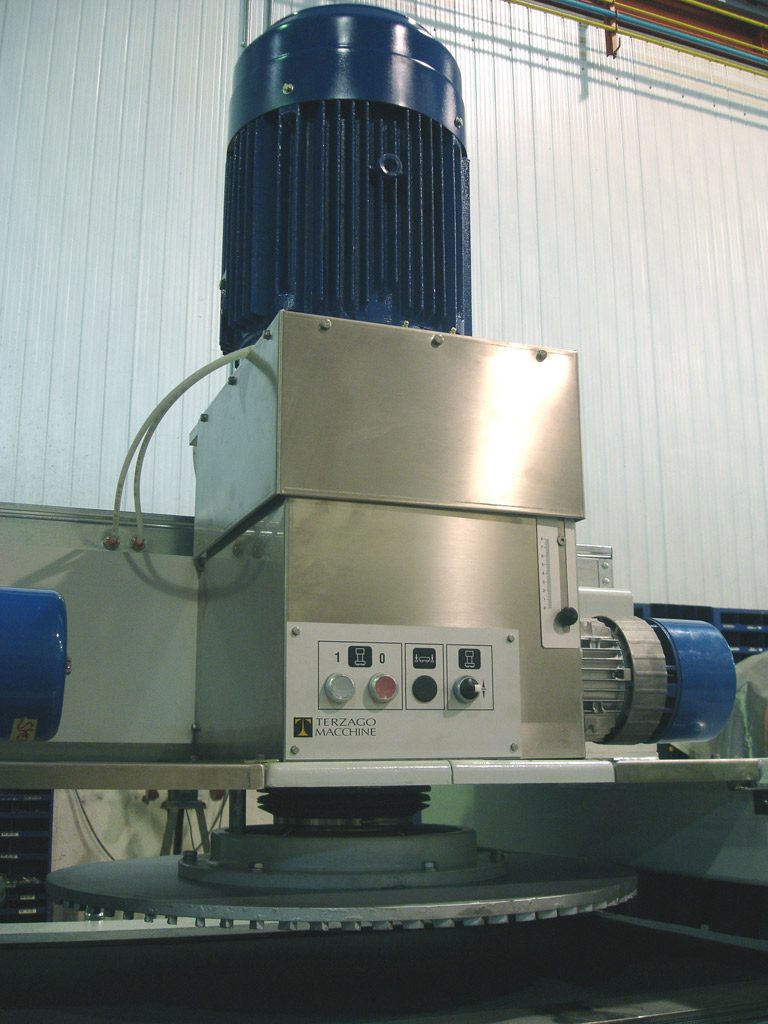

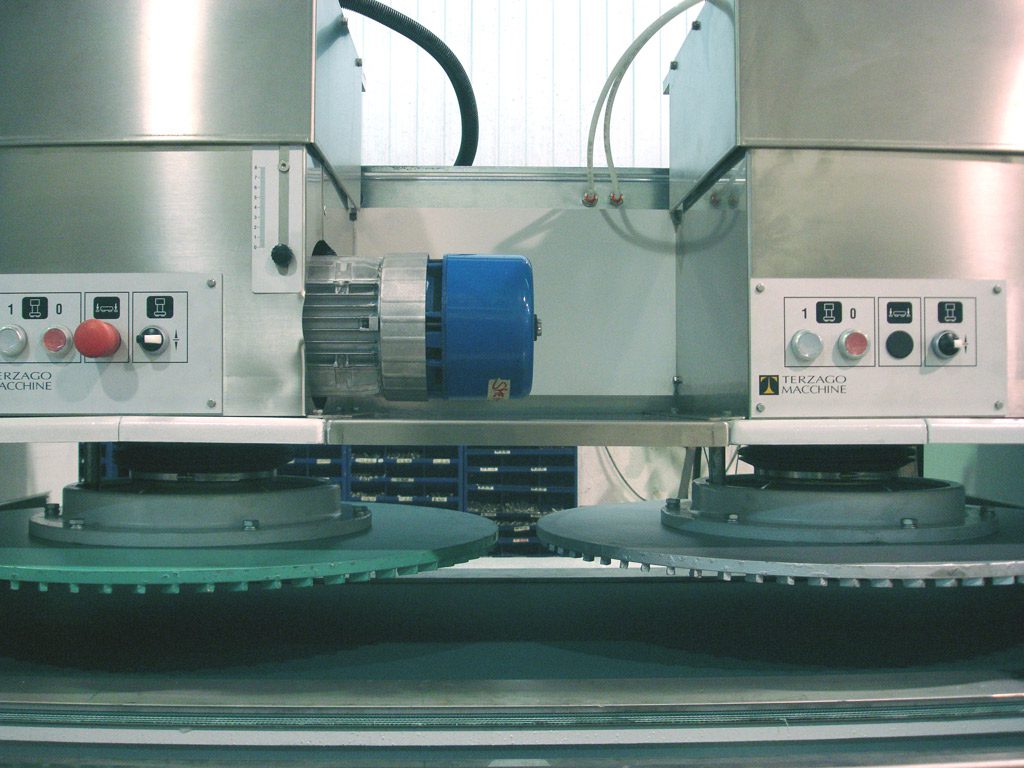

Abrasive/calibrating head up/down movement is pneumatic; working pressure of individual heads can be regulated and seen on pressure gauge; automatic gauging of material thanks to the electronic programmer for time/position.
Individual heads can be excluded.
Conveyor speed/spindle-holder beam on display in real-time; motor absorption.
Fault-detection.

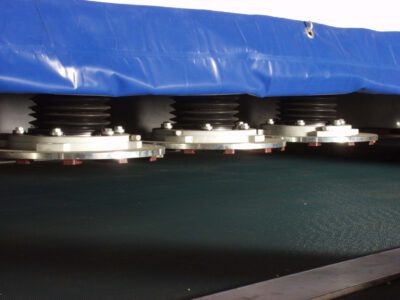

Individual heads with raising device for abrasive wear irrespective of material thickness.
LX board, placed away from the main body of the machine, provides power, auxiliaries, accident protection, and PLC.

	C1 A6	C2 A8	C2 A10	C3 A12
Min/max polishing width	250/650 mm	250/650 mm	250/650 mm	250/650 mm
Min/max polishing depth	10/80 mm	10/80 mm	10/80 mm	10/80 mm
Calibrating shaft	1	2	2	2
Abrasive shaft	6	8	10	12
Diameter calibrating plate	750 mm	750 mm	750 mm	750 mm
Diameter abrasive plate	450 mm	450 mm	450 mm	450 mm
Abrasive shaft motor power	5.5 kW	5.5 kW	5.5 kW	3x7.5 kW 9x5.5kW
Belt motor power	1.1 kW	2 kW	2.2 kW	3 kW
Beam motor Power	2.2 kW	3 kW	3 kW	4 kW
Total motor power	56 kW	87 kW	98 kW	140 kW
Belt Speed	0-3.5 m/min	0-3.5 m/min	0-3.5 m/min	0-3.5 m/min
Water requirement	100 L/min	160 L/min	200 L/min	250 L/min
Machine length	6500 mm	9000 mm	10300 mm	12000 mm
Machine width	1650 mm	1650 mm	1650 mm	1650 mm
Total width	2100 mm	2100 mm	2100 mm	2100 mm
Height	2150 mm	2150 mm	2150 mm	2150 mm
Weight	7700 kg	8600 kg	10600 kg	11200 kg
