he Edge-polisher “LINEA” combines the simplicity of operations with a small footprint. It can work straight profiles and chamfers, even on really limited and minimum widths (7/8 cm) and difficult to achieve with other brands of the same branch machinery.

The LINEA has been designed and built specifically to take advantage and work pieces of very tight material that would otherwise go to waste.

Continuously variable speeds and adjustable to adapt to the type of material being processed, with swinging heads for polishing to perfection also slabs not exactly squared and increase the speed of execution of the straight edge. Fast and compact. Ideal for window sills, baseboards, backsplashes, thresholds, with thicknesses between 1 and 4 cm.

Technical Details

Overall dimension 5460x1650x1845 mm
Weight2.2 tonnes
Dound pressure level<85 dbA
General Motor7.5 Kw
Workable width80 mm
Maximum workable width with filly extended hydraulic rod 2500 mm
Workable thickness10-40 mm
Worktop height 960 mm
Conveyor advance speed20-2000 mm/min
Calibrating/shaping tool diameter120 mm
Calibrating/shaping spindle power4.0 Kw
Number of hydraulic polishing spindles (1 diamond)8
Polishing tool diameter130 mm

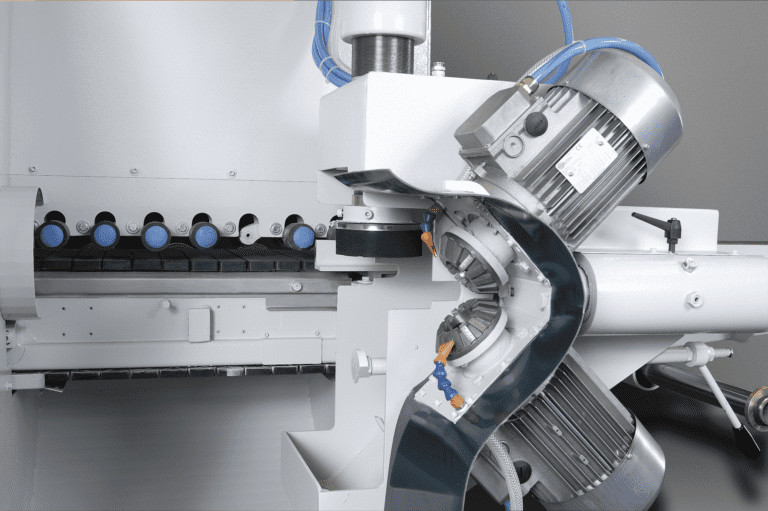

Number of chamfering tools1+1 or 2+2
Chamfering spindle power1.5 Kw
Chamfering tool diameter 130 mm
Diameter of drip-cut disc150 mm
Power of drip-cut disc 4.0 Kw
