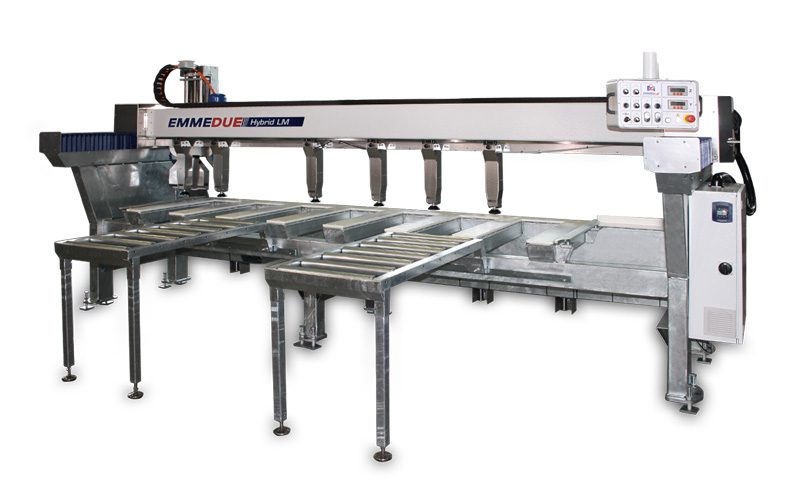

Semi-automatic mitre saw / mobile bridge saw specific for 0-45-90 cutting
Compact MonoBlock structure build in electro-welded steel, which is treated with Hot Dip Galvanizing.
Technical Data
| Description | Data |
|---|---|
| Max. stroke X axis | 3350mm |
| Y axis travel | 1000mm |
| Z axis travel | 260mm |
| Diamond blade diameter | 350mm |
| Blade bore size | 50 mm |
| Maximum Cutting Depth | 50mm |
| Main motor power | 8.8kW - 12HP |
| Standard voltage/frequency | 3ph. 400V-50/60Hz |
Accesssories
- Automatic movement X axis
- Manual movement Y axis by handwheel
- Manual movement Z axis by handwheel
- Pneumatic clamps for locking piece
- Rear pneumatic stops for positioning the narrow work pieces
- Worktable surface scratch resistant sintered material

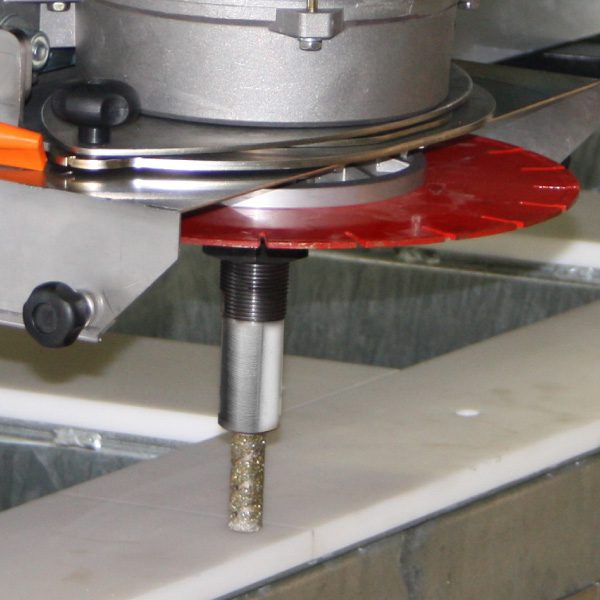

- Tool ½ Gas connection with water flow inside
- Inverter control speed tool
- Device for cutting short pieces
CAD / CAM
- Table extensions
- Wood cover
