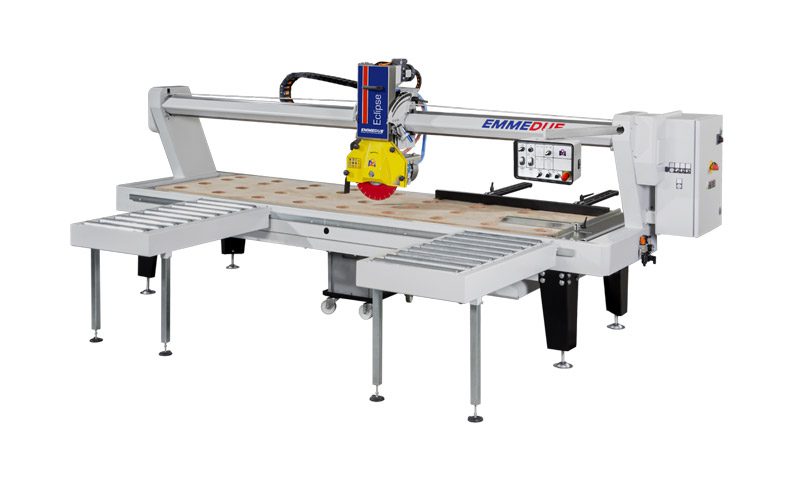

Semi-automatic bench saw with fixed bridge for cutting marble, granite and ceramic.

Technical Data

Max. stroke X axis3400mm
Z axis travel200mm
Diamond blade diameter350-500 mm
Blade bore size50 mm
Head tilt45° - 0°
Maximum Cutting Depth150mm
Main motor power 17.6kW / 24HP
Main motor rotation speed1400/2800rpm
Standard voltage/frequency3ph. 400V-50/60Hz


  • Omni-directional wheels on the work table with pneumatic system.
  • Motorized “X“ and “Z” Axis.
  • Water tank with recirculation pump.
  • Nr.2 frontal pneumatic roller tables.
  • Mobile control panel.
  • Manual rollaway back stop and lateral.


  • Rollaway back stop with hand wheel.
  • Laser for cutting line.
  • Inverter motor 700 ÷ 3000 Rpm.
  • Nr. 2 idle roller tables (front or back).
