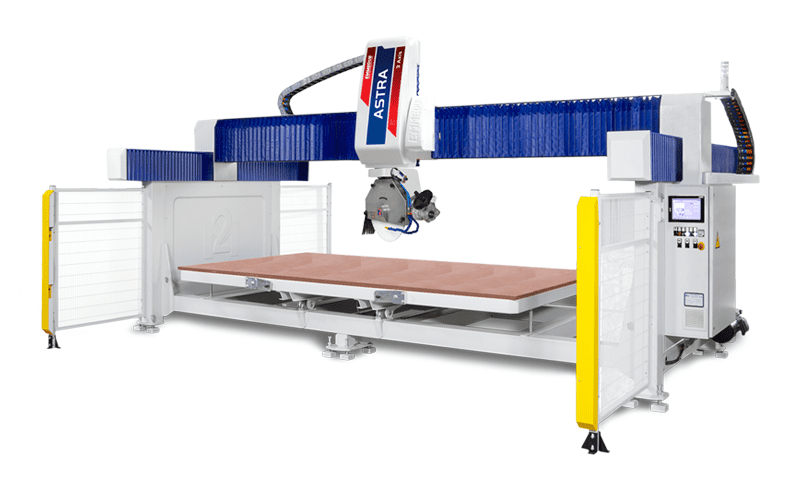

The most compact and dynamic bridge saw in its category
Automatic 3 axisbridge saw versatile, precise, reliable and easy to use. Manual head rotation and tilting, with hydraulic tilting table.
Technical Data
| Description | Data |
|---|---|
| Max. stroke X axis | 3700mm |
| Y axis travel | 2000mm |
| Z axis travel | 340mm |
| Worktable dimensions | 3600x2000 mm |
| Diamond blade diameter | 350-500 mm |
| Blade bore size | 60 mm |
| Head tilt | 90° - 0° |
| Maximum Cutting Depth | 145mm |
| Head rotation | 0 - 90 - 180 |
| Main motor power | 13.2kW - 18HP |
| Main motor rotation speed | 700 - 3000rpm |
| Standard voltage/frequency | 3ph. 400V-50/60Hz |
DETAILS
Bridge saw machine structure and work table made of hot galvanized dipped electro-welded steel that guarantees high water resistance.
X / Y / Z axis movements on slideways with ball-bearing guide blocks protected by bellows. The blade motor has Hp18 – kW 13.2 power, can reach a maximum speed of 3000 Rpm with inverter, cutting thicknesses up to 145 mm. with disc Ø 500 mm. (200mm. with disc Ø 625 mm. Optional)

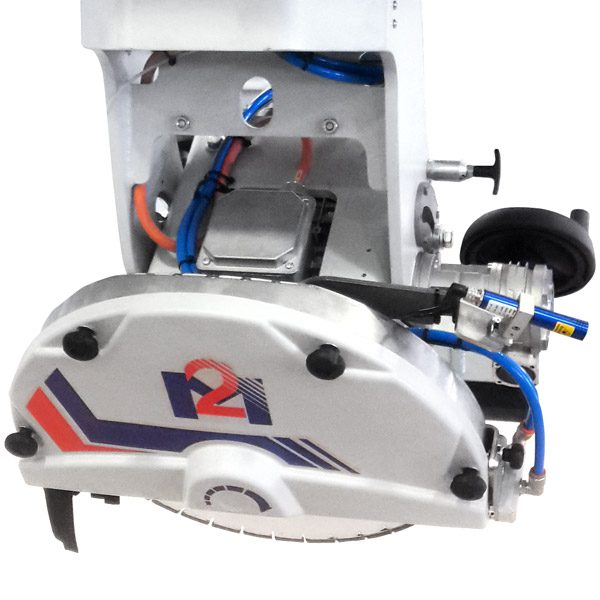

Manual rotation head in three positions, 0° - 90° - 180°, manual tilting head from 0° to 90° with handweel.
Panel control touch screen 10” with easy to use interface.

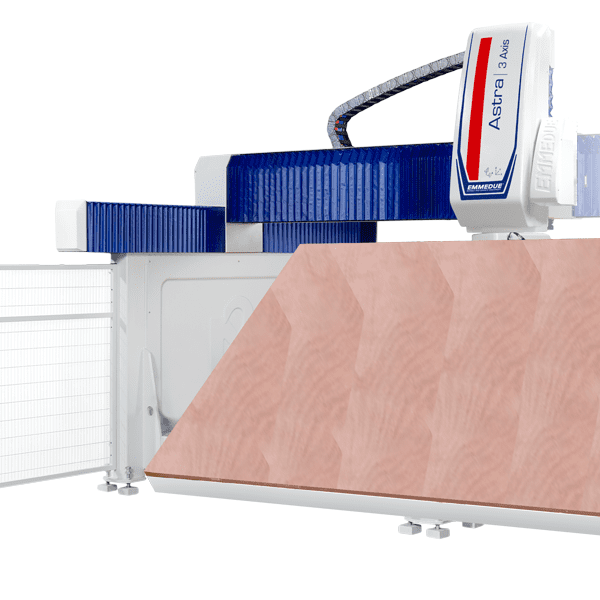

The optional tilting work table with hydraulic pump, promotes slab loading, speeding up the production process.
Astra 3 Axis is ideal for indoor and outdoor designs such as kitchen counters, bathroom counters, capitals, tables, stairs and floors.
