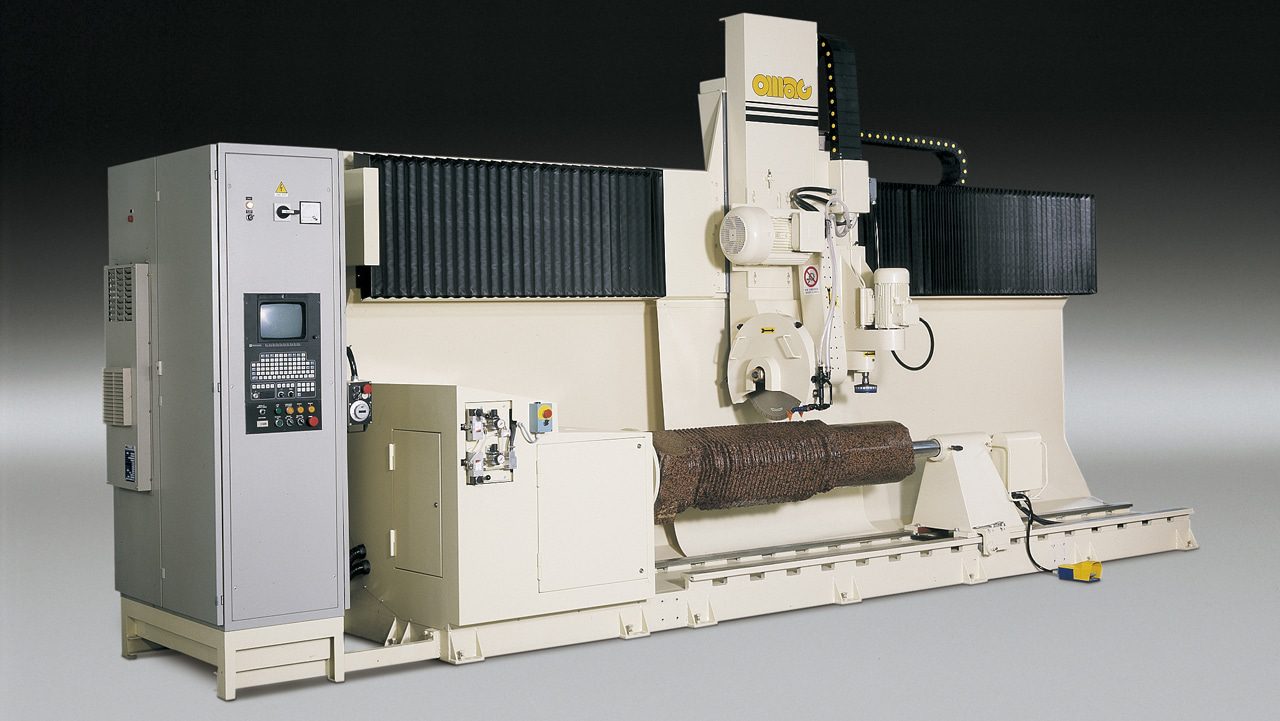

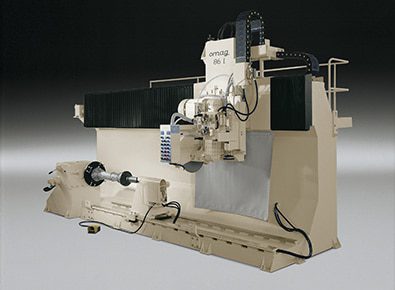

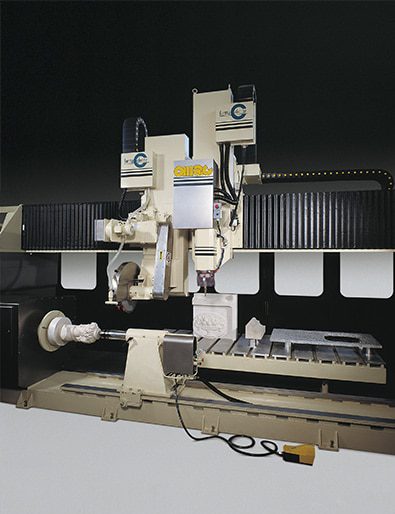

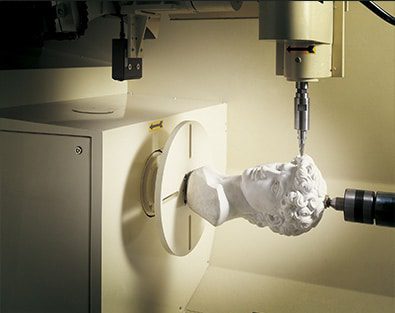

Columns, balustrades, vases, spheres, ovaloids, helical columns, Doric columns in marble, natural stone in general, granite, onyx, crystal, are some of the types of work and material that can be made with our 94te lathe.
Monobloc structure in electro-welded steel, treated with suitable high protection paints. The machine is equipped with a head unit disc with two-speed or d.c. motor, of a spindle head and a tailstock, sized for each model based on the actual weight of the work block. The disc and cutter carriage runs on recycled ball guides protected by PVC bellows, while the motorisation is with brushless digital technology. The moving elements of the machine are lubricated by means of a system centralised automatic with oil.
The Q type machine for Column Forming only has a mobile bridge on the Y axis with the possibility of having different lengths on this axis.
CHARACTERISTICS
- Maximum diagonal passage – hype. L up to mm. 500
- Maximum diagonal passage – hype. M up to mm. 700
- Distance between centers Mod. Base from mm. 2000
- Work piece length up to mm. 3000
“Z” AXIS transversal
- Speed mt./1° 2 (ID 94 TE), 5 (CN 94 TE)
Vertical “X” AXIS
- Race mt./1° 250
- Max speed mt./1° 3 (ID 94 TE), 5 (CN 94 TE)
“C” AXIS rotation of work block
- Max speed rpm. 215 (ID 94 TE), 250 (CN 94 TE)
TAILSTOCK
- Morse taper type 4Piston stroke mm. 120
DISC HEAD
- Maximum disc diameter mm. 500
- Shaft diameter mm. 50
- Speed 1 rpm. 1470
- Speed 2 rpm. 2930
- Electric power Kw. 14
TOTAL POWER INSTALLED Kw. 18
Technical Details
| ID 94 TE | CN 94 TE | |
|---|---|---|
| Max diagonal passage - type L | 500mm | 500mm |
| Max diagonal passage - type M | 700mm | 700mm |
| Distance between the points | 2000mm | 2000mm |
| Piece length | 3000mm | 3000mm |
| Transversal “Z” AXIS - Speed | 2 mt./1º | 5 mt./1º |
| Vertical “X” AXIS - Stroke Max. speed | 250 mt./1° 3 mt./1° | 250 mt./1° 3 mt./1° |
| “C” AXIS working block rotation Max. speed. | 215rpm | 250rpm |
| Tailstock cap Piston stroke | morse 4 120mm | morse 4 120mm |
| Max. disk diameter | 500mm | 500mm |
| Speed 1 | 1470rpm | 1470rpm |
| Speed 2 | 2930rpm | 2930rpm |
| Electrical power | 14kW | 14kW |
