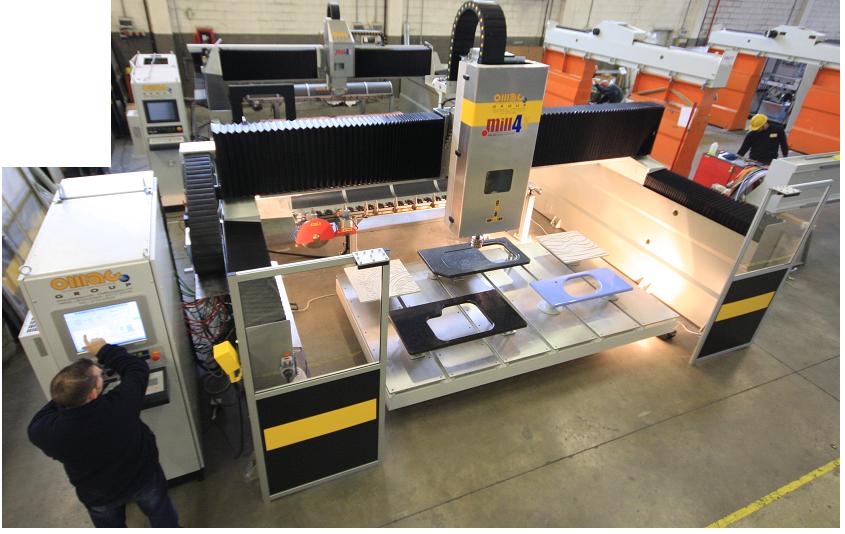

DigiMill Monoblock CNC Workcenter
DIGIMILL is the 4-axis numerical control machining center that groups all the functions of a multifunctional machining center in a single system.

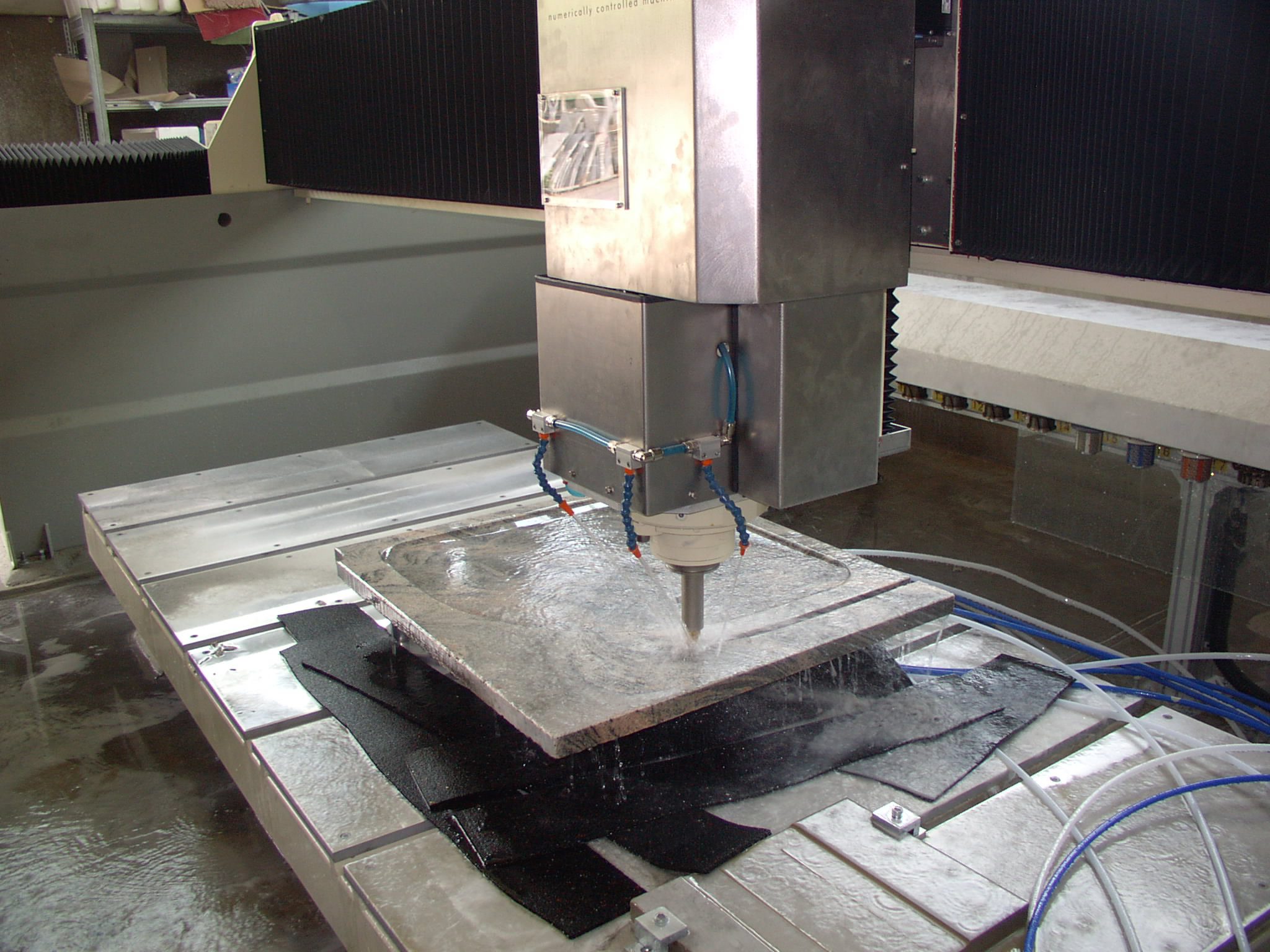

DIGIMILL is the result of OMAG experience gained in 40 years of production and the combination of the best technologies with the simplicity of setting the job for shaping, contouring, engraving, milling, sculpting, polishing of natural materials and synthetics as well as ceramic.
DIGIMILL is a highly productive machine both when mass production is required and for unique and original pieces.
The high speed of the movement of the axes is ensured by brushless motorization combined with ball screws, while the sliding on linear guides with ball runner blocks, the protection of the moving parts with PVC bellows, and a centralized lubrication system, guarantee quality and precision over time.
The numerical controls used are from the main world manufacturers, the software development (CAD / CAM), and the customization of the functions is guaranteed by a staff of engineers who also have the task of ensuring a constant training and assistance service.
CHARACTERISTICS
- 14.5HP Motor
- 10,000rpm
- 3+1 Axis
- Quick release ISO40 Holders
- Galvanised steel structure
- Centralised lubrication system
- 18.5" touch screen control console
- 20 stations plus 1 angular head
Technical Details
| Description | Data |
|---|---|
| Interpolated controlled axes | 4 axes |
| X Axis transversal stroke | 3,600mm |
| Y Axis longitudinal stroke | 1.500 mm. |
| Z Axis vertical stroke* | 350mm |
| C Axis rotation | Continuous |
| Z Axis vertical stroke* | 500 mm. to 1.200 mm. on demand |
| T inclined | 0° + 0,28° drain board function |
| Working table sizes | 3.600 x 1.500 mm. |
| Motor power | S1 – Kw. 9.2 / H.p. 12,5 and S6 Kw. 11 / H.p. 14.9 |
| Tool Attachment | ISO40 |
| Rotating control by inverter | 0 ÷ 10.000 RPM |
| Tool storage capacity | 20 Positions plus angular head |
