5-axis manual & automatic (CNC) shaping milling machine

This machining center was designed with the aim of being able to offer in a single space a machine capable of being able to carry out all the processes required to a small or medium-sized laboratory.

Cutting geometries can be imported either in standard DXF format or in CVS format (simple spreadsheet). Once the cutting geometries have been defined, we then move on to the choice of positioning the individual elements in the cutting plate, the NESTING function performs this operation automatically, the user can always customise the cut respecting any grain of the material. Optimizing cutting means minimising material waste and therefore not intervening manually during the cutting phases.

The AREAMULTICUT_DUAL version automatically identifies all the cutting lines that can be carried out simultaneously by both heads. The support table (belt) by rotating ensures that all cutting combinations are possible. The software allows in a simple and intuitive way to relaunch the machined pieces that present anomalies.


  • Minimum diameter of the disc 300 mm /11,88”
  • Maximum diameter of the disc 625 mm /24,60”
  • Maximum cutting thickness 210 mm/8,26”
  • Spindle motor power S6 18Kw-24,4 Hp
  • Spindle Rotation by inverter 0÷5.000
  • Spindle motor power S6 18Kw-24,4 Hp
  • Spindle rotation with inverter 0÷5.000
  • Manual tool attachment
  • Tool attachment ½”

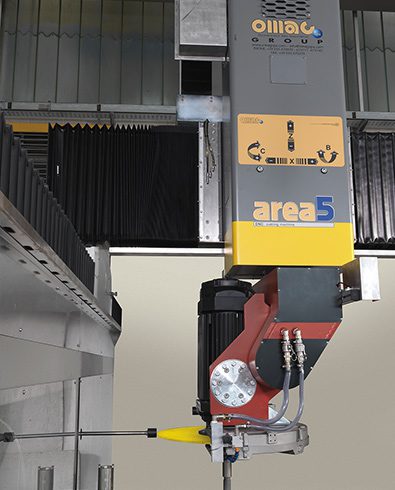

  • C Axis rotation C °-200/+200
  • B Axis rotation B 0°/+90
  • X Axis 3.600 mm/141,73”
  • Y Axis 2.300 mm/90,55”
  • Z Axis 500 mm/19,68”

Technical Details

Interpolated controlled axes 5 axes
Minimum disc diameter300mm
Maximum disc diameter 625mm
Maximum thickness cutting capacity210mm
Spindle Motor Power(S6) 18Kw - 24.4HP
Spindle Rotation by inverter 0 ÷ 5.000
Milling attachmentManual
Tools connection1/2"
Automatic Blade change No
Tools storage No
Head rotation (C axis) ° - 200 /+ 200
Head inclination (B axis)° 0 / + 90
Horizontal stroke (X axis) 3600mm
Bridge transversal stroke (Y axis) 2300mm
Head raising/lowering stroke (Z axis) 500mm
Horizontal Stroke Speed (X axis) 50m/min
Transversal Stroke Speed (Y axis)50m/min
Vertical Stroke Speed (Z axis) 24m/min
Head rotation speed (C axis) 60º/sec
Tilting head speed (B axis)35º/sec
Working Table Sizes3,600mm x 2,300mm
