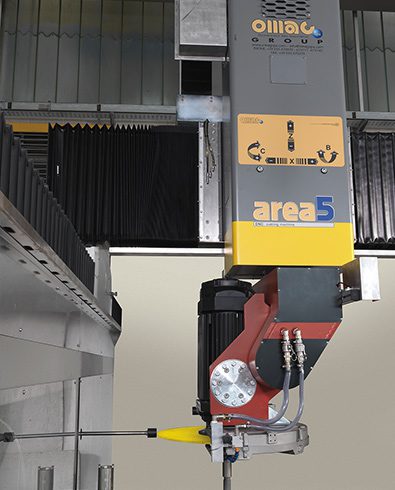

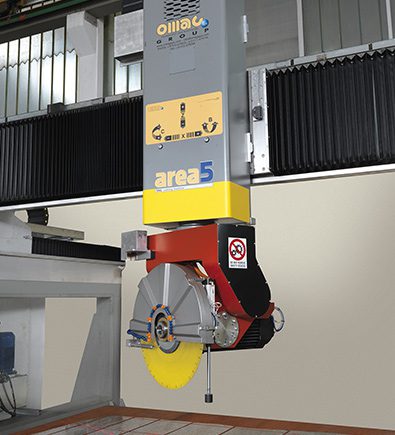

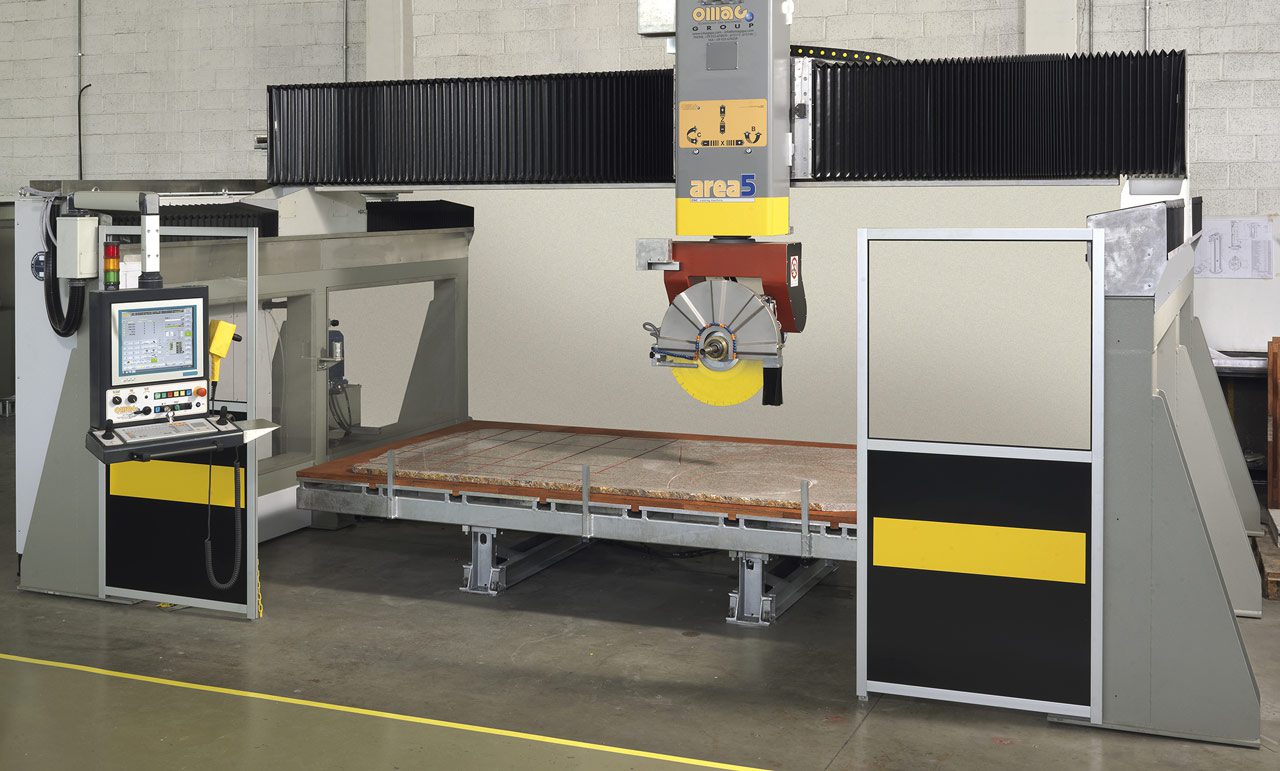

5-axis manual & automatic (CNC) forming milling machine

This machining center was designed with the aim of being able to offer in a single space a machine capable of being able to carry out all the processes required to a small or medium-sized laboratory.

In the DUAL version, in a work shift of about 8 hours it is possible to reach a production of about 500 m2.

Cutting geometries can be imported either in standard DXF format or in CVS format (simple spreadsheet). Once the cutting geometries have been defined, you move on to the choice of positioning the individual elements in the cutting plate, the NESTING function performs this operation automatically, the user can still customise the cut respecting any grain of the material. Optimizing the cut means minimising material waste and therefore not intervening manually during the cutting phases. The AREAMULTICUT_DUAL version automatically identifies all the cutting lines that can be carried out simultaneously by both heads. The support table (belt) by rotating ensures that all cutting combinations are possible. The software allows in a simple and intuitive way to relaunch the machined pieces that present anomalies.

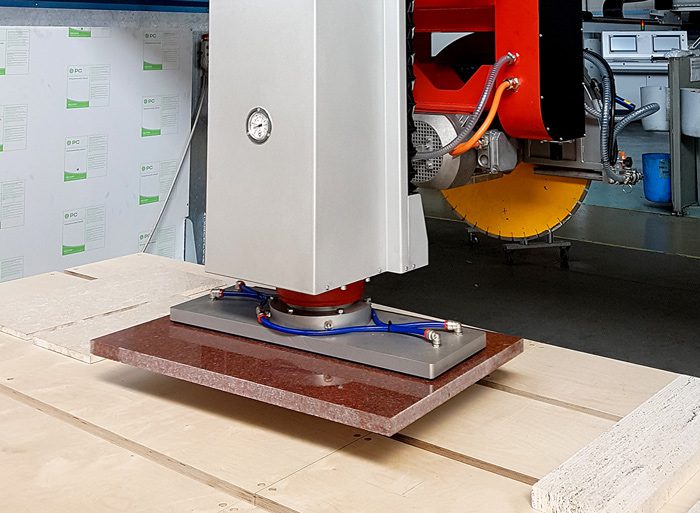

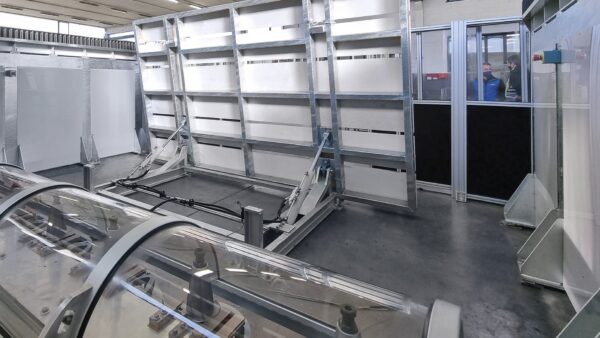

All this is possible as the loading phase is carried out with a suction cup loading table, the processing can be carried out in the DUAL version with double head while in the SINGLE version with one head and finally the unloading which can be automated with a robotic system. The unloading of the cut pieces, after being washed and dried, can be done manually or by using an unloading ROBOT.


  • Minimum diameter of the disc 300 mm /11,88”
  • Maximum diameter of the disc 1.200 mm /47,24”
  • Maximum cutting thickness 460 mm/18,11”
  • Spindle motor power S6 29Kw-39 Hp
  • Spindle rotation with inverter 0÷8.000
  • Manual tool attachment
  • Tool attachment ISO50 o ISO40
  • C axis rotation °-200/+200

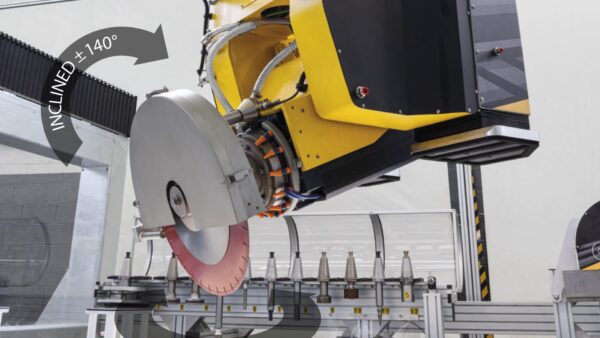

  • B axis inclination 0°/+120
  • X Axis 3.600 mm/141,73”
  • Y Axis 2.800 mm/110,23”
  • Z Axis 700/27,55”

Technical Details

Controlled axes5 axes
Minimum disc diameter300mm
Maximum disc diameter 1200mm
Maximum thickness cutting capacity460mm
Spindle Motor Power(S6) 29Kw - 39HP
Spindle Rotation by inverter0 ÷ 8.000
Milling attachmentManual
Tools connectionISO50 or ISO40
Automatic Blade changeNo
Tools storageNo
Head rotation (C axis)° - 200 /+ 200
Head inclination (B axis)° 0 / + 120
Horizontal stroke (X axis) 3600mm
Bridge transversal stroke (Y axis) 2800mm
Head raising/lowering stroke (Z axis)700mm
Horizontal Stroke Speed (X axis)50m/min
Transversal Stroke Speed (Y axis)50m/min)
Vertical Stroke Speed (Z axis)24m/min
Head rotation speed (C axis)60º/sec
Tilting head speed (B axis)35º/sec
Working Table Sizes 3,600mm x 2,300mm
