Flocculent Dosing Station
The Flocculent (or Poly-electrolyte) strongly increases the depuration performance of the system semi-automatic and fully-automatic flocculent dosing station provided of:
- Agitator to keep the flocculent solution properly mixed
- High precision membrane dosing pump
- Connection to the water treatment main control box
Â

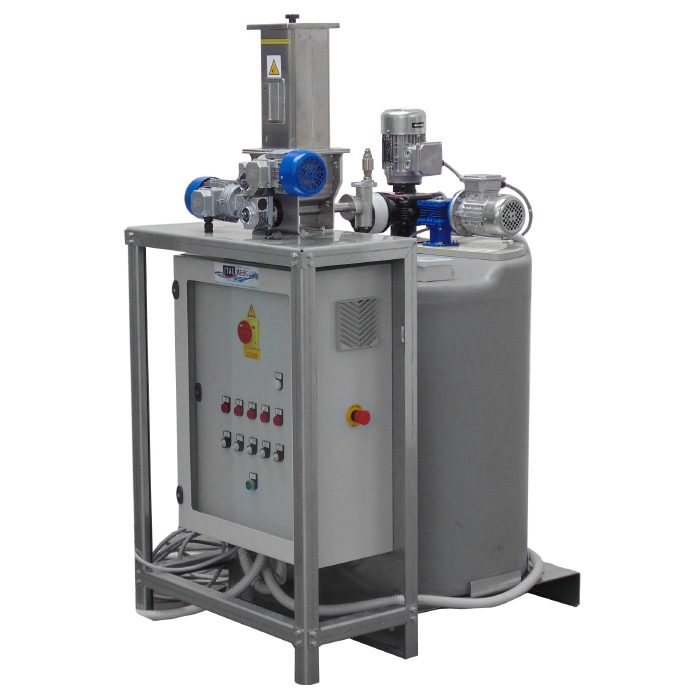

Automatic

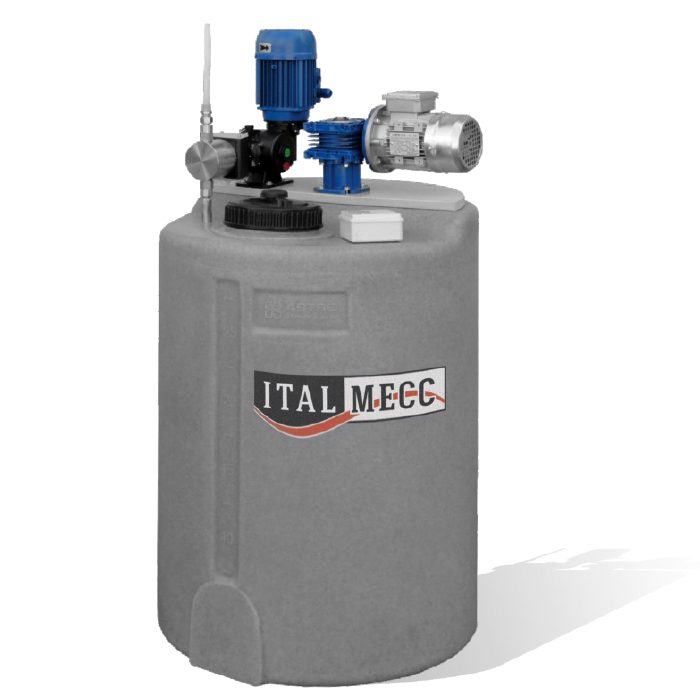

Semi-automatic
Technical Data
| Capacity | Diameter | Height | Flocculent Dosage | |
|---|---|---|---|---|
| SKID 230 | 230 L | 680 mm | 1300 mm | 50 L/hr |
| SKID 315 | 315 L | 835 mm | 1400 mm | 100 L/hr |
| SKID 530 | 530 L | 885 mm | 1500 mm | 180 L/hr |
Dirty water vs after flocculent has been added
