Filter-press 800 & 500

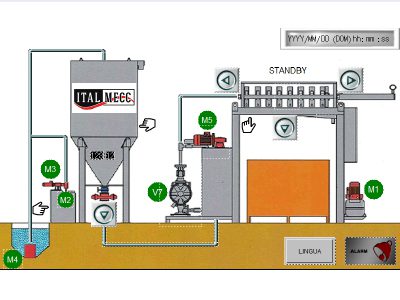

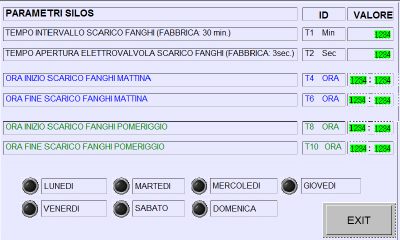

High-efficiency filter-presses, with plates dimensions of 800x800mm and 500x500mm, represent the ideal solution on the mud treatment in medium and big companies. Structural high solidity and wearing resistance, thanks to the quality of the materials used, represent the strong point of the machine. The Touch-screen control panel permits the total management of the water treatment system. It is easy and quick to be used by the operator, both in a semi-automatic or fully automatic way.

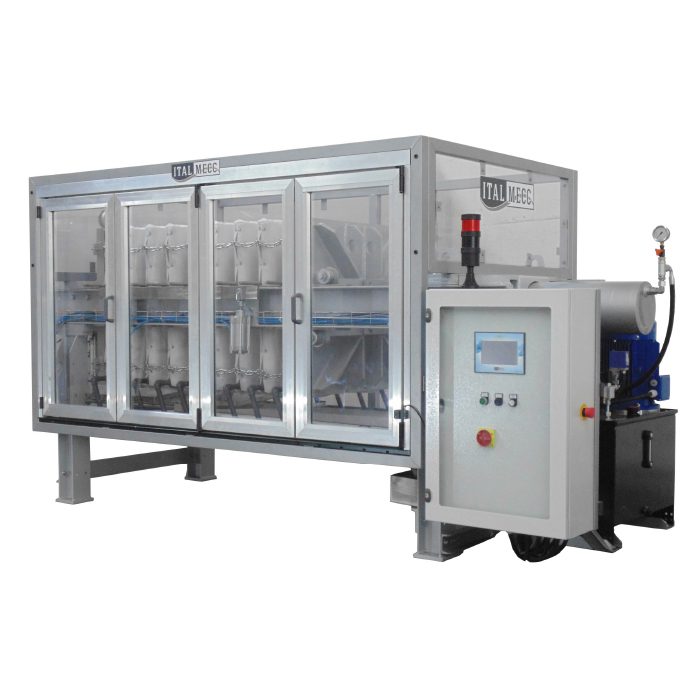

Ecopress 800

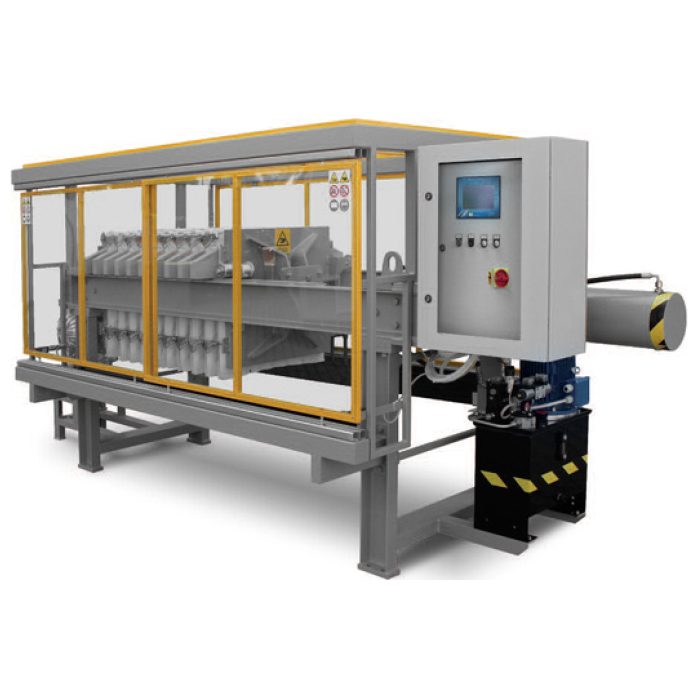

Ecopress 500
Technical Data
| Overall Dimensions | Number of Plates | Hourly Production | |
|---|---|---|---|
| Ecopress 500/15 | 3100 x 1050 x 1250 mm | 15 | 0.32 - 0.40 m3 |
| Ecopress 800/9 | 3500 x 1500 x 1700 mm | 9 | 0.35 - 0.60 m3 |
| Ecopress 800/18 | 3500 x 1500 x 1700 mm | 18 | 0.75 - 1.00 m3 |
| Ecopress 800/25 | 4500 x 1500 x 1700 mm | 25 | 1.06 - 1.40 m3 |
| Ecopress 500/35 | 5000 x 1500 x 1700 mm | 35 | 1.50 - 2.00 m3 |
