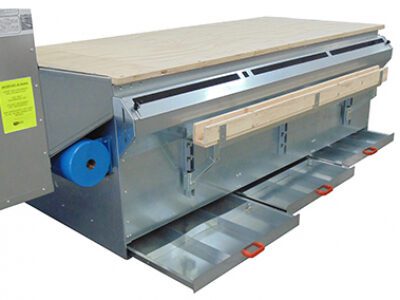

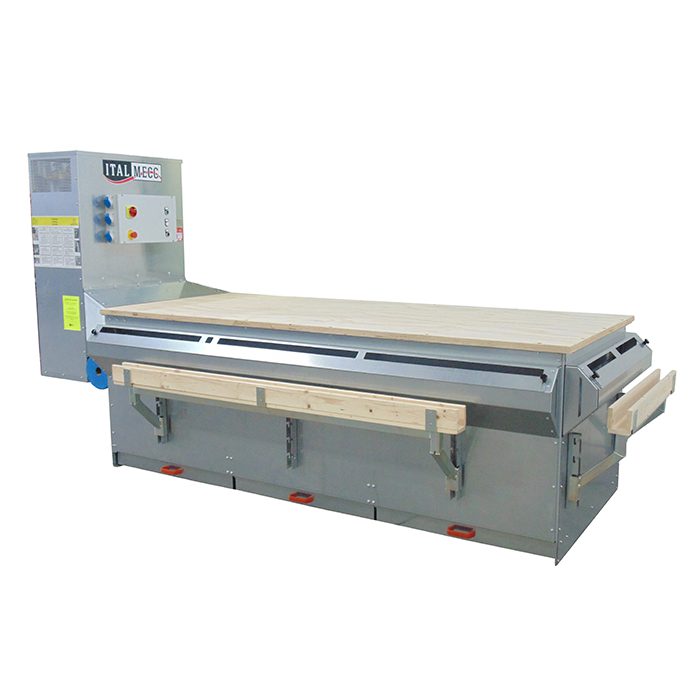

Dry Bench Dust Collector
The bench with dry technology uses the same filtration system as the Air Dry aspiration cabin: with water and oil proof filtering sleeves. The self-cleaning process is controlled by the internal PLC. The dust, removed from the filters, is collected into the drawers on the bottom of the machine. Mobile bulkheads also allow to drive aspiration flow as preferred, making it stronger in some areas, if required
Technical Data
| Overall Dimensions | Worktop Height | Worktop Dimensions | Aspiration | Noise Level | Depuration | |
|---|---|---|---|---|---|---|
| Air Quattro | 3580 x 1420 x 1880 mm | 950 mm | 2720 x 1180 x 30 mm | 9000 m3/hr | 74 dB | <99.5% |
