M series | Manual or Pneumatic Tilting
Single pad vacuum lifter
Capacity: 100 to 3000 kg
Suitable for lifting solid material, not porous, having flat surface: cut-to-size panels, tiles, stairs, small slabs, metal panels, honeycomb panels, steel elements, window’s glasses, double-glazed windows.
Fast and simple handling unit, compact and sturdy constructed, suitable for continuous and heavy-duty use. Ideal under the hook lifting device, perfect complement to lifting equipment, manual and pneumatic option available.
Equipped with vacuum reservoir, built-on safety devices with acoustic and luminous alarm systems, vacuum gauge.
A big step ahead is our distinctive rubber sealing, flexible, resistant and long-lasting, that allows gripping of any material finishing (raw, polished, honed, flamed, bush-hammered, sand blasted, etc.)
AIR SUPPLY OPTIONS
The vacuum is generated by an electric pump or by means of a compressed air vacuum generator (Venturi pipe). The unit usually consists of: electric vacuum pump + connecting pipe + vacuum suction pad. The vacuum pump is to be placed nearby the working place. For special application can be supplied pumps with single-phase, DC electric motors (to be installed on fork lift and hydraulic crane), internal combustion ones.
- pivoting axis close to the pad to facilitate the vertical positioning;
- adjustable inclination of the manoeuvring handle;
- detachable and rechargeable vacuum leakage alarm with buzzer and warning lights activated by a vacuum switch, apart battery charger;
- one-direction valves to allow vacuum keeping also in case of pipe cuts/vacuum loss;
- ON/OFF sliding valve with locking device against accidental releasing;
- in compliance with the CE Machine Directive to conform the EU standards for CE marking.
FEATURES
- Manufactured with light alloy materials and galvanised steel, aluminium casting pad – long-life and rustproof;
- fast and easy replacement of the rubber sealing ring;
- can be tilted 0° to 90°, to lift and lay down materials both horizontally that vertically (upright);
- pivoting axis close to the pad to facilitate the vertical positioning;
- adjustable inclination of the manoeuvring handle;
- detachable and rechargeable vacuum leakage alarm with buzzer and warning lights activated by a vacuum switch, apart battery charger;
- one-direction valves to allow vacuum keeping also in case of pipe cuts/vacuum loss;
- ON/OFF sliding valve with locking device against accidental releasing;
- in compliance with the CE Machine Directive to conform the EU standards for CE marking.
Technical Data
| Model | Dimensions (mm) A | Dimensions (mm) B | Dimensions (mm) H | Weight (kg) | Vertically/Horizontally Capacity (kg) |
|---|---|---|---|---|---|

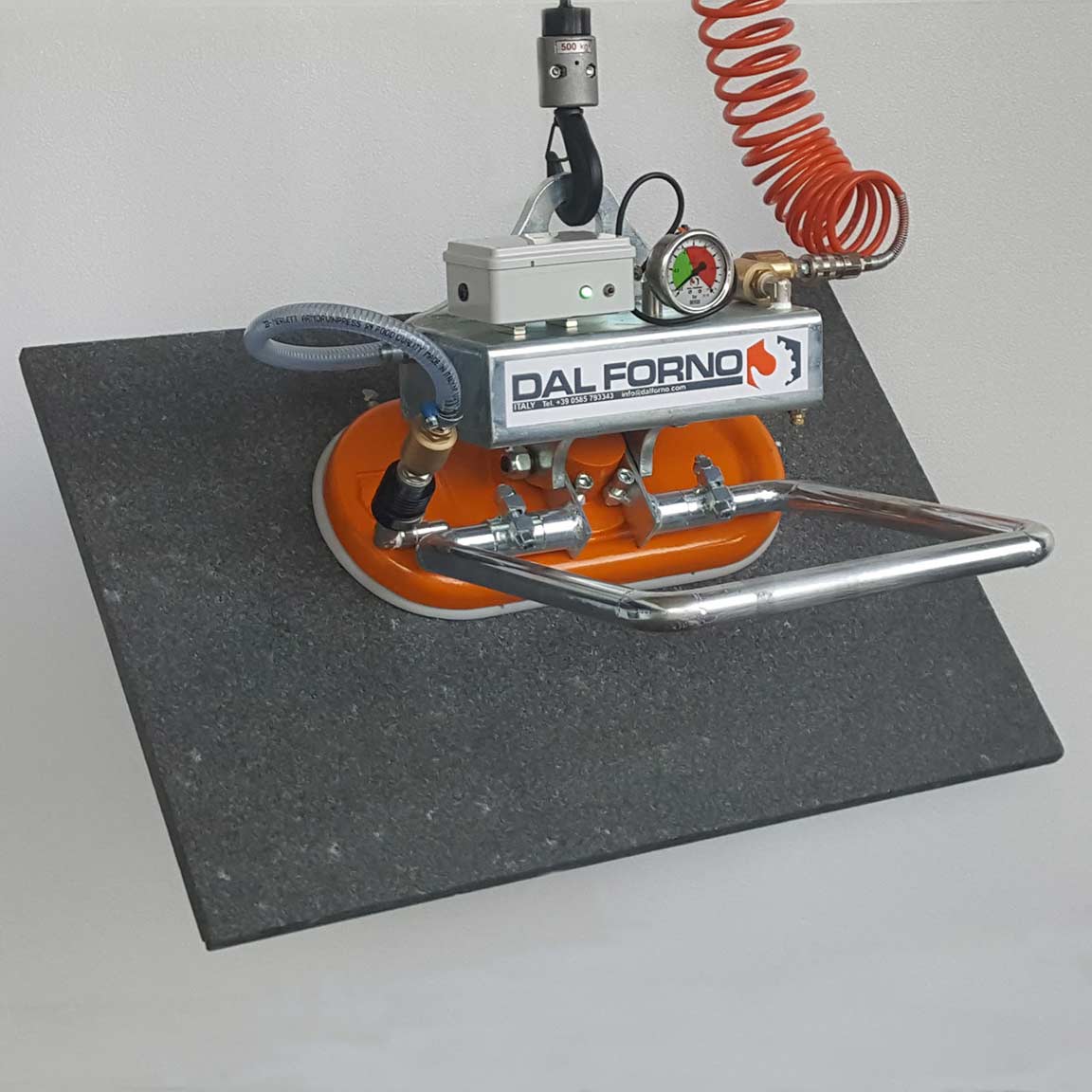

| M2040 | 200 | 420 | 260 | 18 | 60/120 |

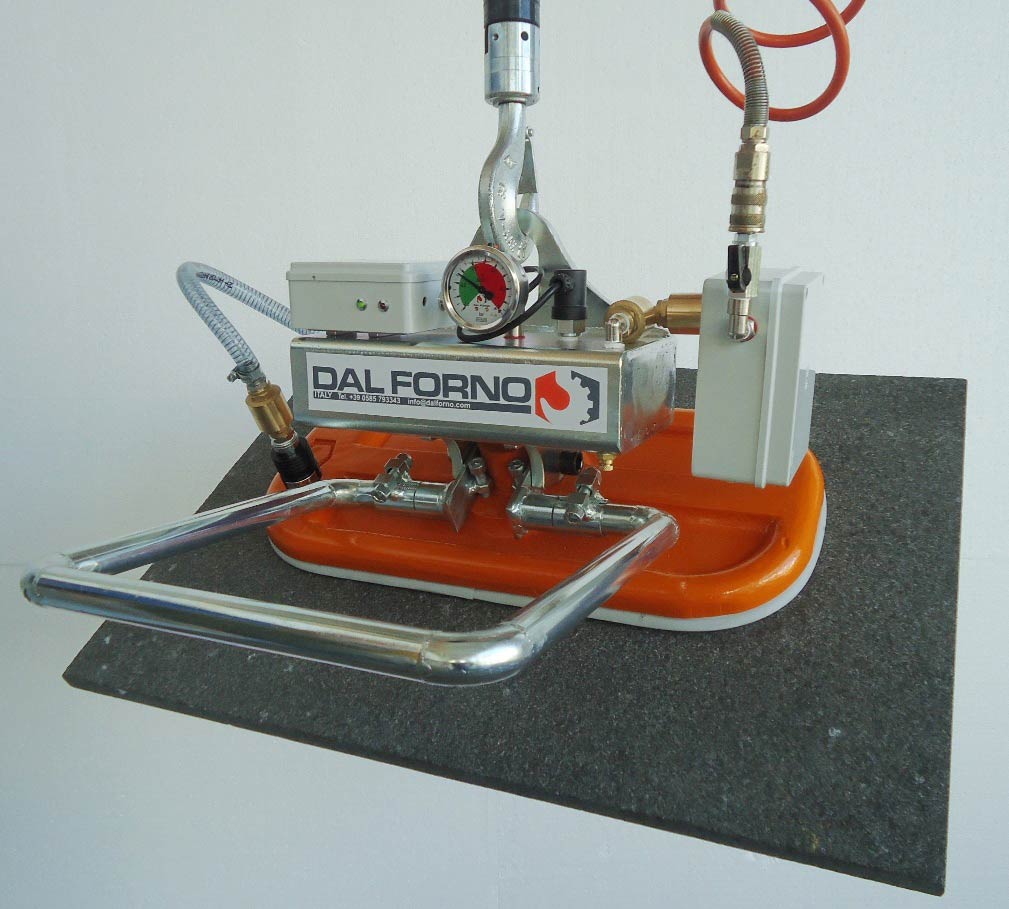

| M2550 | 250 | 560 | 260 | 18 | 60/120 |

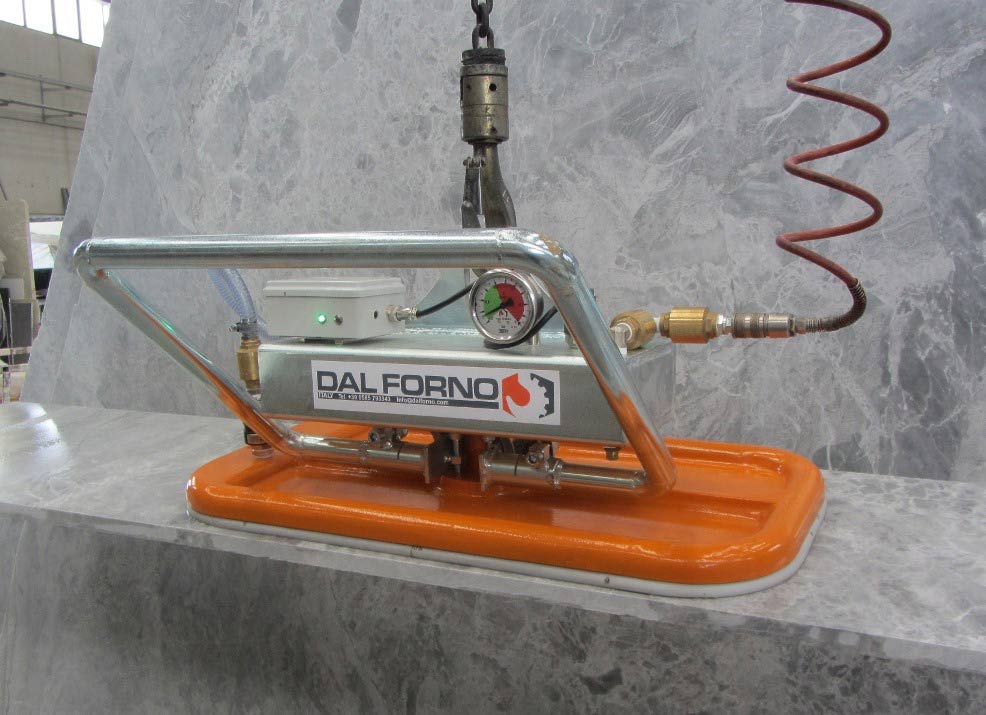

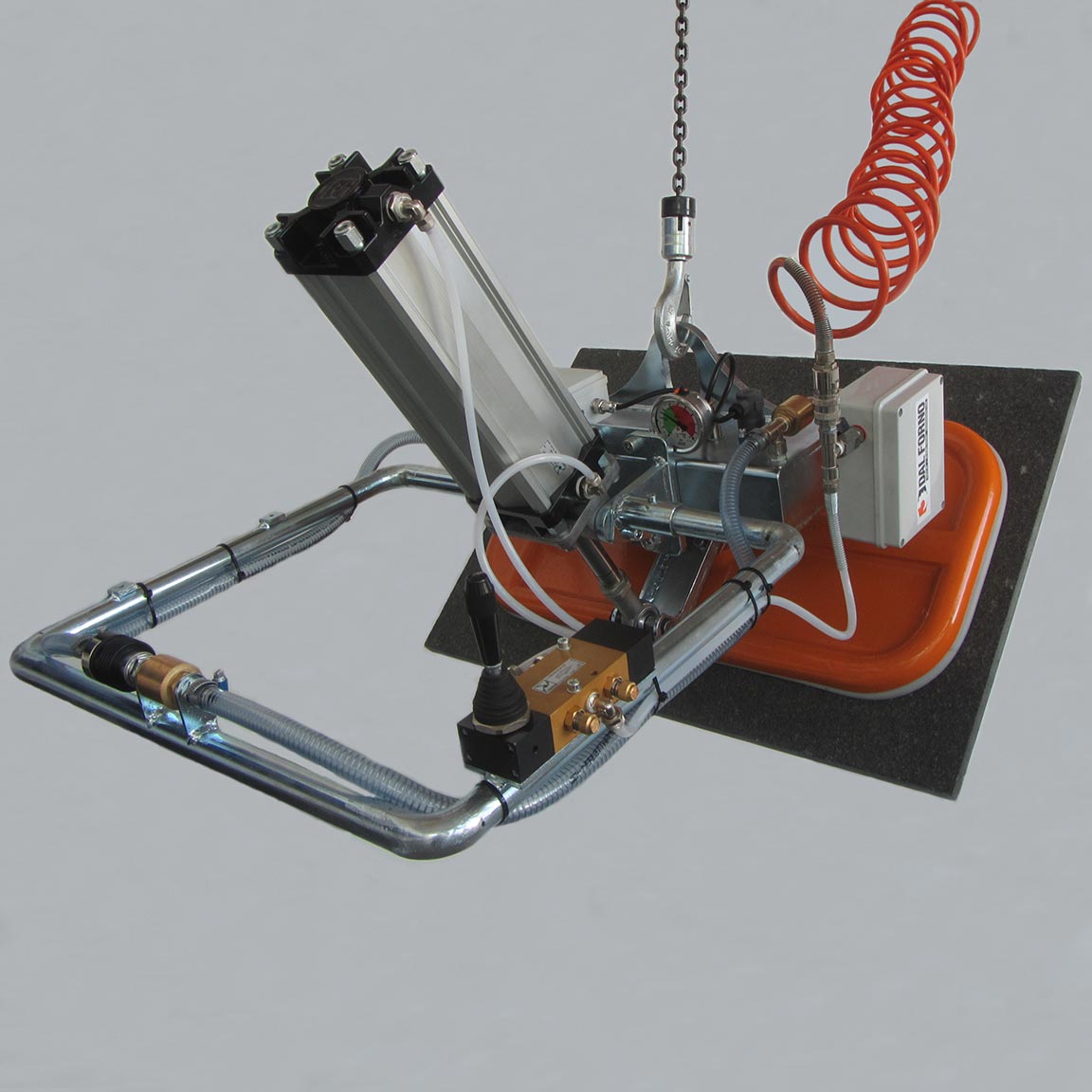

| M3570 | 350 | 680 | 260 | 30 | 250/500 |

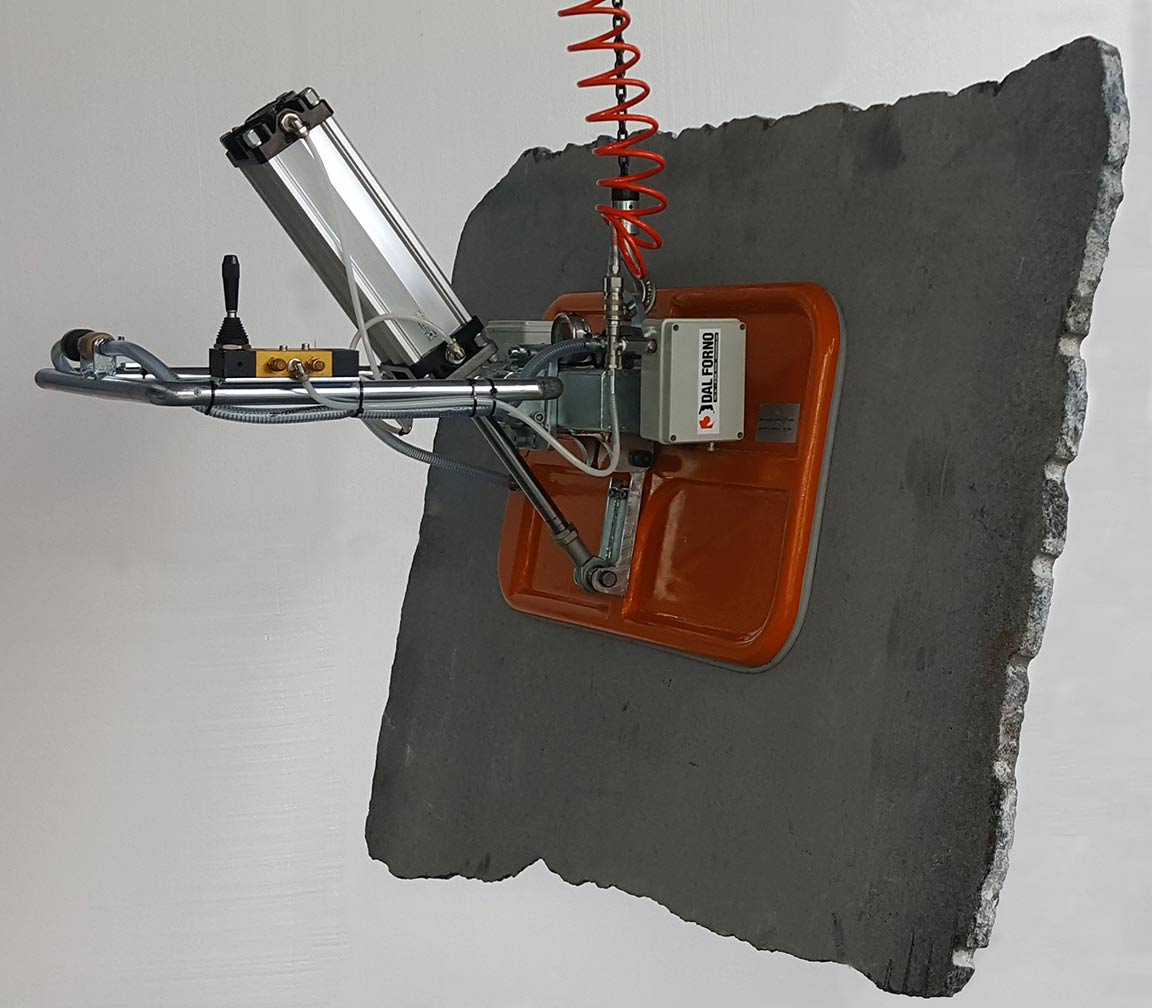

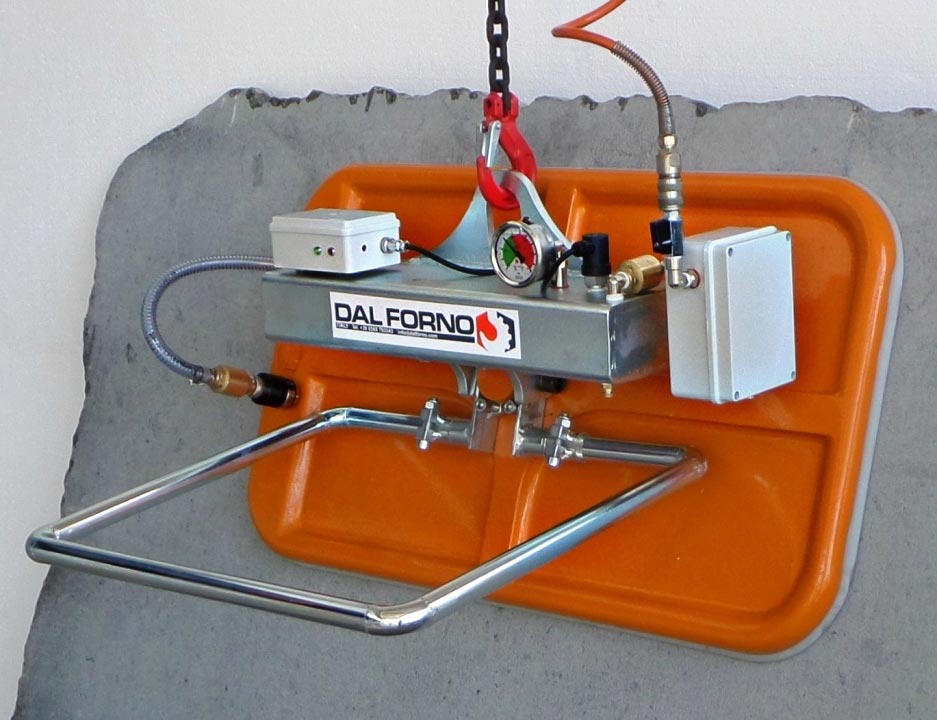

| M5085 | 500 | 860 | 270 | 40 | 500/1000 |
| M55110 | 560 | 1100 | 300 | 140 | 750/1500 |
| M60120 | 610 | 1200 | 300 | 180 | 1000/2000 |
| M90120 | 900 | 1200 | 300 | 210 | 1500/3000 |
