S series | 2 & 3 Pads | Manual Tilting

Two and three pad vacuum lifter

Capacity: 250 to 1500 kg

Suitable for lifting solid material, not porous, having flat surface: cut-to-size panels, tiles, stairs, small slabs, metal panels, honeycomb panels, steel elements, window’s glasses, double-glazed windows.

Fast and simple handling unit, compact and sturdy constructed, suitable for continuous and heavy-duty use. Ideal under the hook lifting device, perfect complement to lifting equipment, manual and pneumatic option available.
Equipped with vacuum reservoir, built-on safety devices with acoustic and luminous alarm systems, vacuum gauge.

A big step ahead is our distinctive rubber sealing, flexible, resistant and long-lasting, that allows gripping of any material finishing (raw, polished, honed, flamed, bush-hammered, sand blasted, etc.)

The Vacuum Lifter Catalogue

AIR SUPPLY OPTIONS

The vacuum is generated by an electric pump or by means of a compressed air vacuum generator (Venturi pipe). The unit usually consists of: electric vacuum pump + connecting pipe + vacuum suction pad. The vacuum pump is to be placed nearby the working place. For special application can be supplied pumps with single-phase, DC electric motors (to be installed on fork lift and hydraulic crane), internal combustion ones.

  • pivoting axis close to the pad to facilitate the vertical positioning;
  • adjustable inclination of the manoeuvring handle;
  • detachable and rechargeable vacuum leakage alarm with buzzer and warning lights activated by a vacuum switch, apart battery charger;
  • one-direction valves to allow vacuum keeping also in case of pipe cuts/vacuum loss;
  • ON/OFF sliding valve with locking device against accidental releasing;
  • in compliance with the CE Machine Directive to conform the EU standards for CE marking.

FEATURES

  • Manufactured with light alloy materials and galvanised steel, aluminium casting pad – long-life and rustproof;
  • fast and easy replacement of the rubber sealing ring;
  • can be tilted 0° to 90°, to lift and lay down materials both horizontally that vertically (upright);
  • pivoting axis close to the pad to facilitate the vertical positioning;
  • adjustable inclination of the manoeuvring handle;
  • detachable and rechargeable vacuum leakage alarm with buzzer and warning lights activated by a vacuum switch, apart battery charger;
  • one-direction valves to allow vacuum keeping also in case of pipe cuts/vacuum loss;
  • ON/OFF sliding valve with locking device against accidental releasing;
  • in compliance with the CE Machine Directive to conform the EU standards for CE marking.
  •

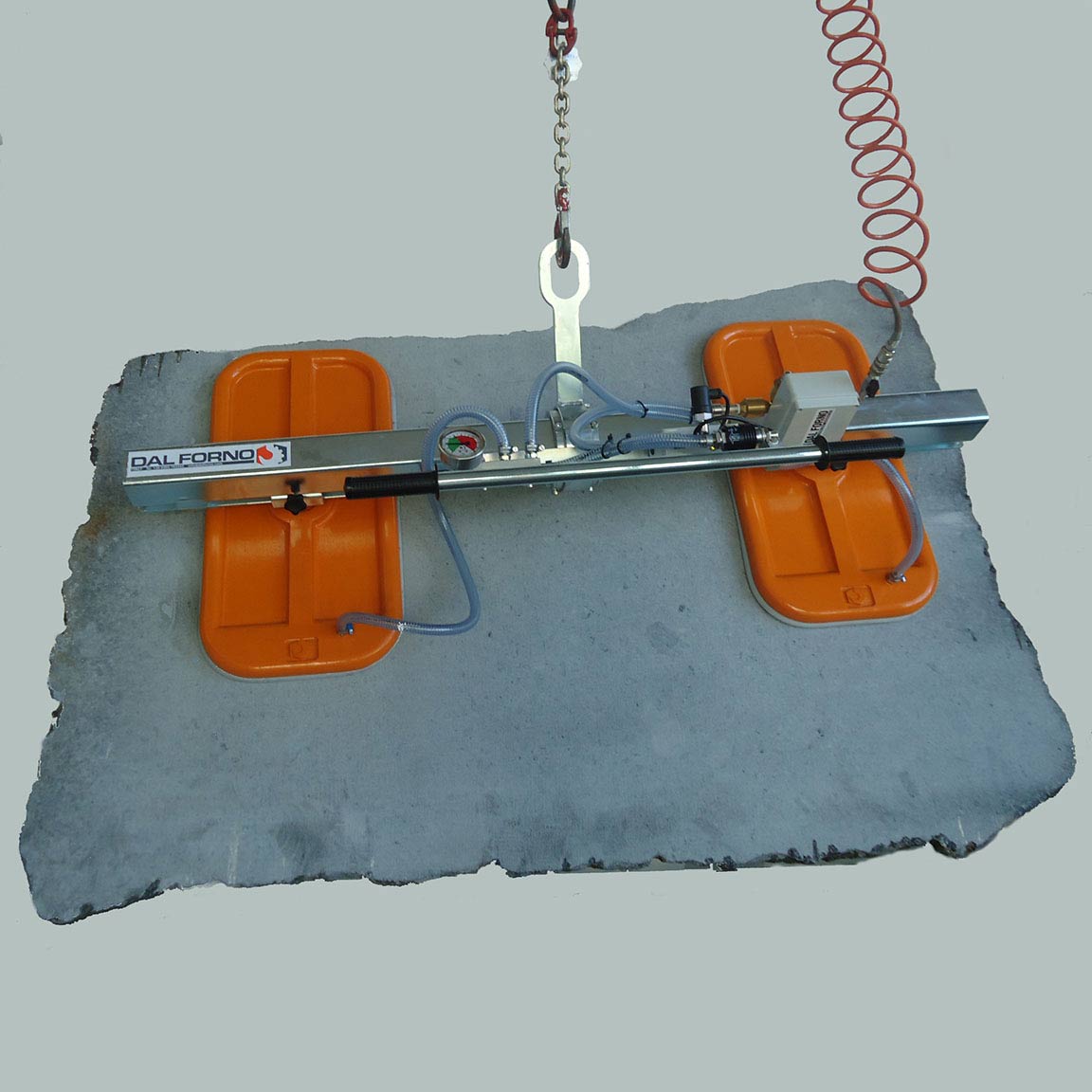

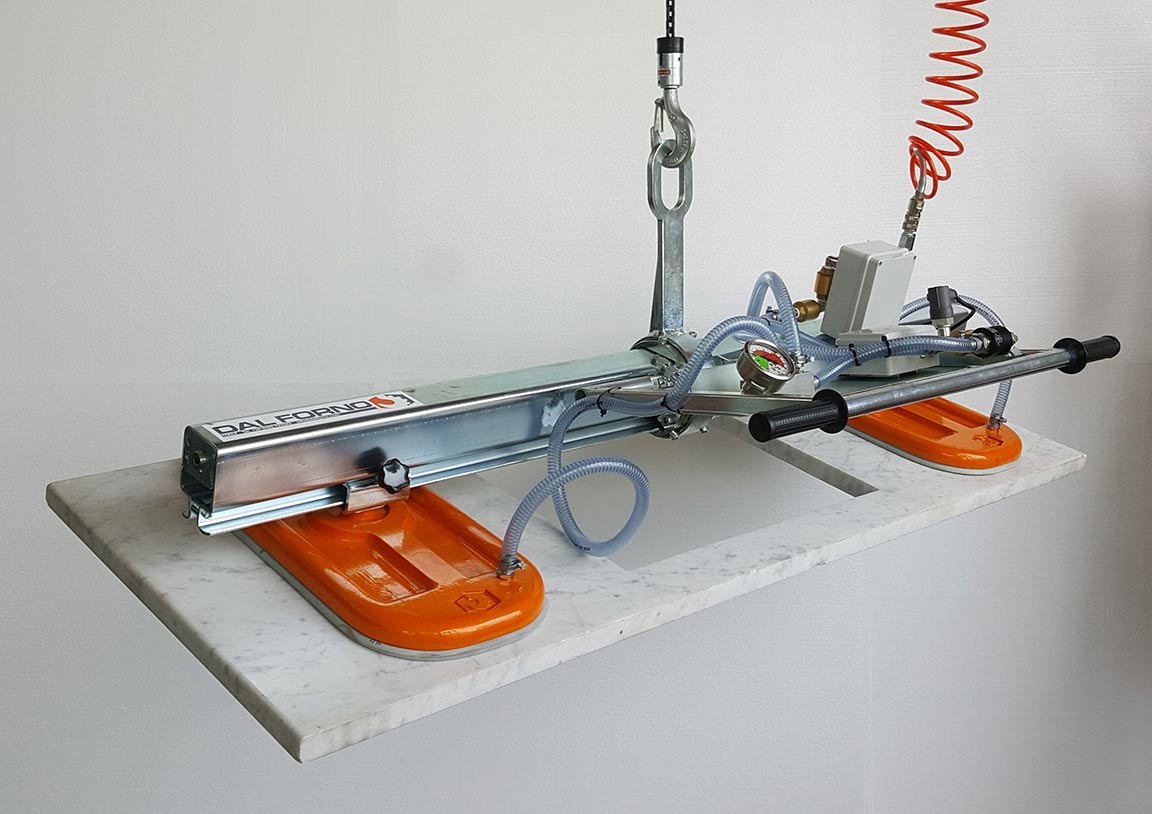

2 Pad Technical Data

ModelDimensions (mm) ADimensions (mm) BDimensions (mm) HDimensions (mm) LWeight (kg)Vertically/Horizontally Capacity (kg)
L2S 2040200420467155047125/250
L2S 2550250560467155053250/500
L2S 3570350680467155060500/1000

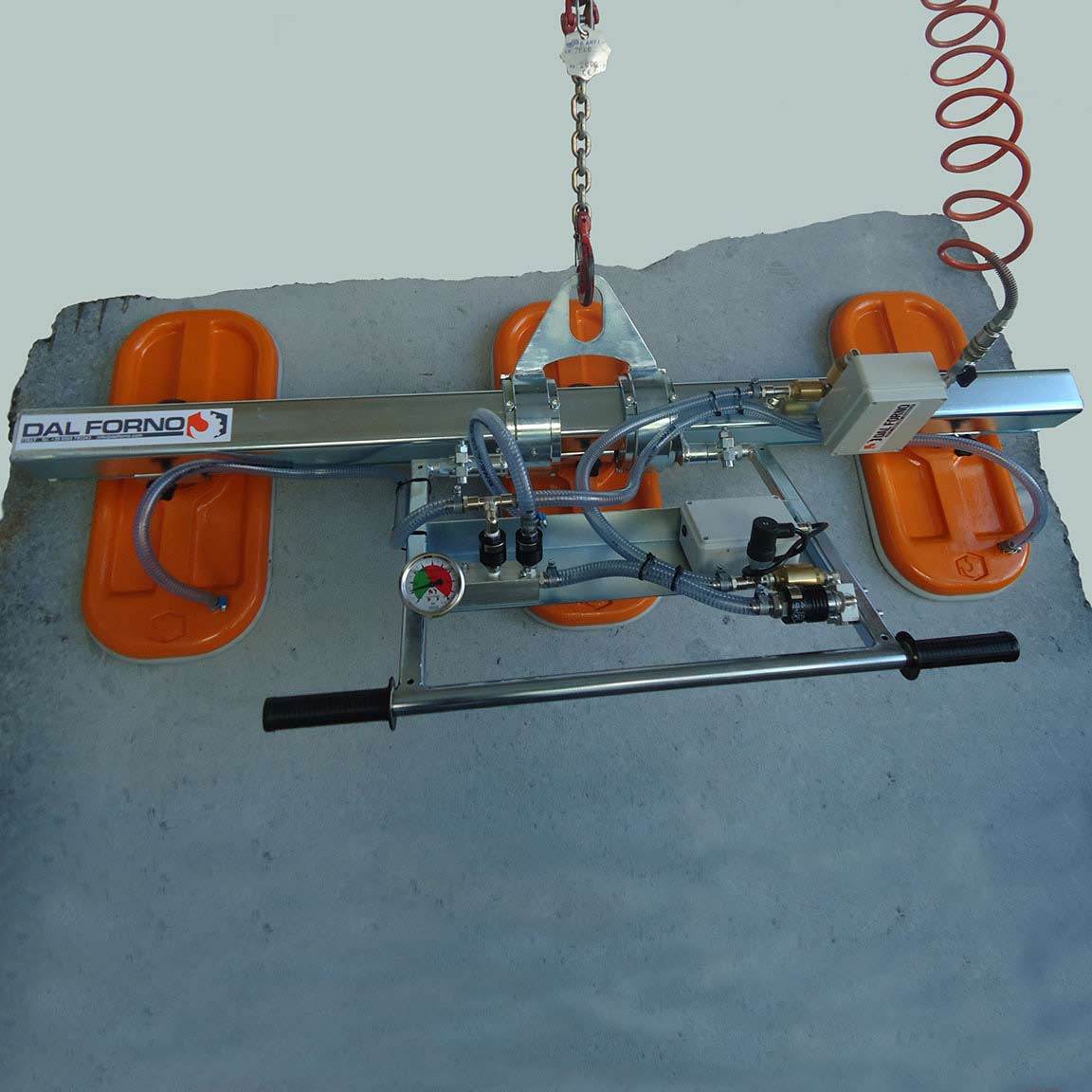

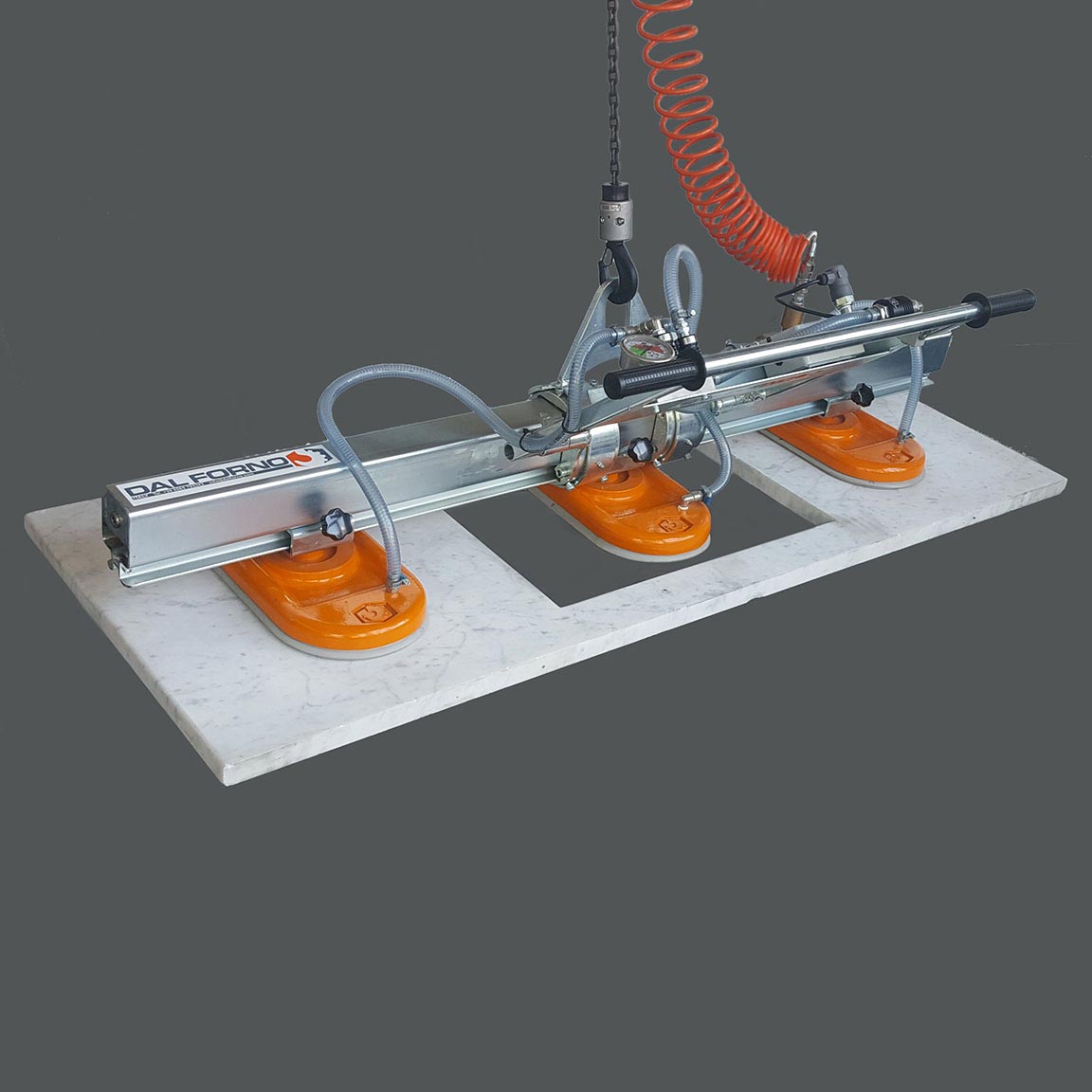

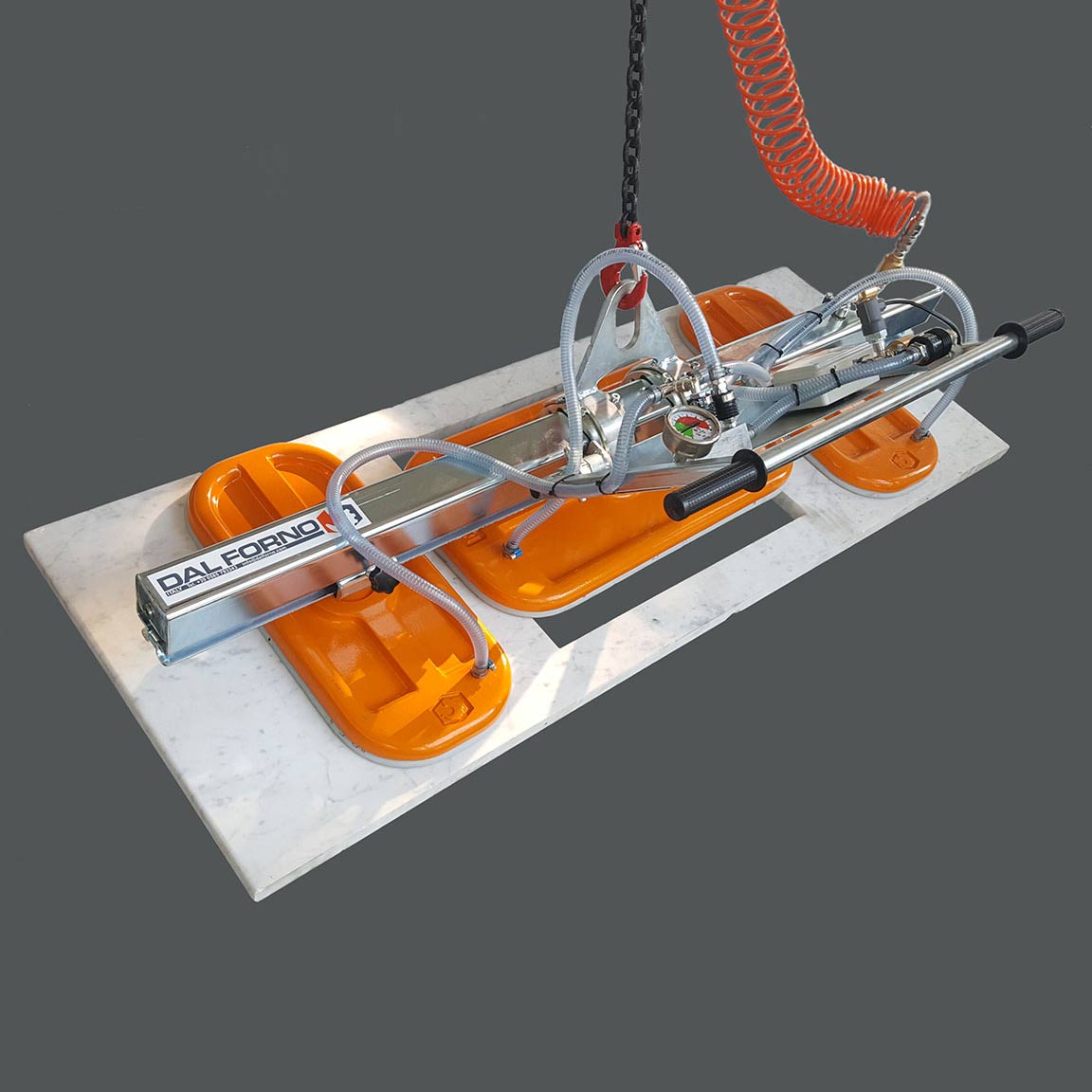

3 Pad Technical Data

ModelDimensions (mm) ADimensions (mm) BDimensions (mm) HDimensions (mm) LMIddle PadWeight (kg)Vertically/Horizontally Capacity (kg)
L3S 20402004203251550200 x 42057185/370
LS3 2040/502004203251550250 x 56060250/500
L3S 25502505603251550250 x 56066375/750
L3S 2550/703505603251550350 x 68072750/1500
L3S 35703506703251550350 x 68085750/1500
