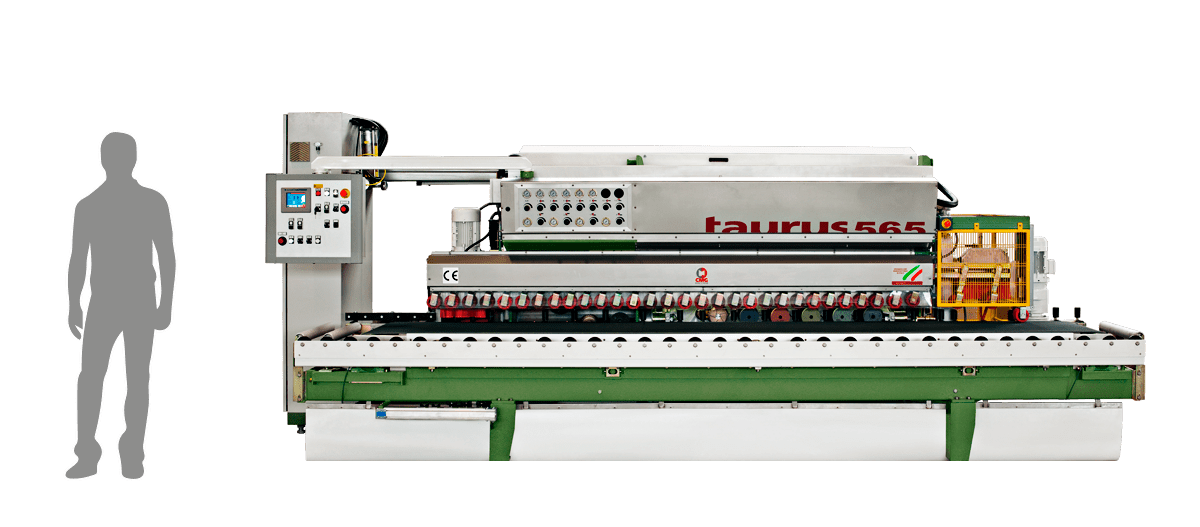

TAURUS 565 COMPACT WITH GREAT PERFORMANCES
Behind the Taurus 565 edge polishing machine there is an advanced technological study that ranges from the realization of different projects, from a simple staircase step to a kitchen countertop.
Features
- Calibration device with the possibility of calibrating a width of 60 mm;
- Blade cutting, drip tray and inclined cuts;
- 6 frontal polishing heads and 5 abrasive heads;
- Floating system for polishing granite;
- Patented system that allows the execution of the processes without the help of the feedback bar;
- Latest generation lubrication system with automatic monitoring of greasing times and failure reporting.
Technical Data
| Description | Data |
|---|---|
| Model | |
| Front Spindles | 6 |
| Bevelling Spindles | 2 / 4 |
| Diameter Of The Calibration Wheel | 200 mm |
| Diameter Of The Cutting Disc | 300 mm |
| Abrasive Heads Diameter | 130 /150 mm |
| Min/Max Working Thickness | 15 / 60 mm |
| Feed Speed (Conveyor Belt) | 5 / 2300 mm/min |
| Water Consumption | 90I/min |
| Max Power Required | 30 kW |
| Overall Dimensions | 5000 x 1800 x 2000 mm |
| Machine Weight | 5000 kg |
