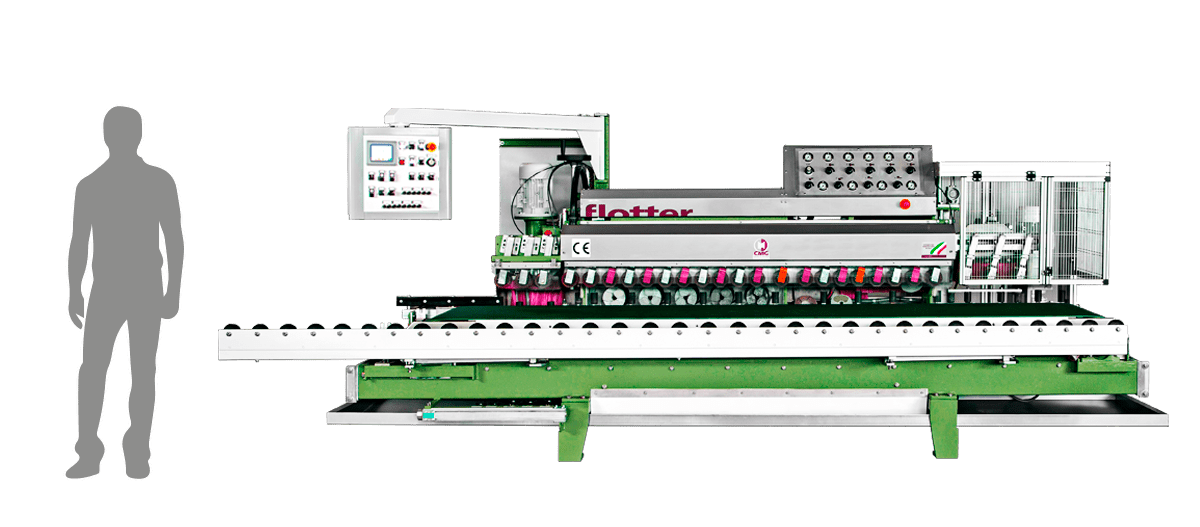

FLOTTER 520 / 540 / 540 PLUS

The edge-polisher Flotter 520 is suitable for polishing and profiling the edges on composite stones. A small machine that is simple to use and maintain.

The electronic equipment sets the partial polishing, the on/off regulation of the polishing heads, the automatic polishing of irregular shape like winding staircase and many other possibilities.


  • support bar with manual adjustment to support slabs with different dimensions;
  • 1 meter roller tables to support the pieces being processed;
  • Kw. 4 universal cutter for upper, lower and inclined cutting with various tilting degrees;
  • Kw. 4 calibrator with vertical and horizontal adjustment;
  • 5 frontal polishing heads with an independent regulation of the air pressure;
  • protection carter and cover in stainless steel;
  • the conveyor belt runs on cold drawn flat stainless steel bars of 12 mm.

Technical Data

modelFlotter 520Flotter 540flotter 540 plus
Front Spindles555
Bevelling Spindles1+12+22+2
Diameter Of The Calibration Wheel200 mm-200 mm
Diameter Of The Cutting Disc 300 mm300 mm300 mm
Abrasive Heads Diameter130 /150 mm130 /150 mm130 /150 mm
Min/Max Working Thickness15 / 60 mm15 / 60 mm15 / 60 mm
Feed Speed (Conveyor Belt)5 / 2300 mm/min5 / 2300 mm/min10 / 2300 mm/min
Water Consumption60 I/min70I/min80 I/min
Max Power Required20 kW19 kW22 kW
Overall Dimensions 3750 x 1800 mm3750 x 1800 mm4000 x 1800 mm
Machine Weight2700 kg2900 kg3000 kg
