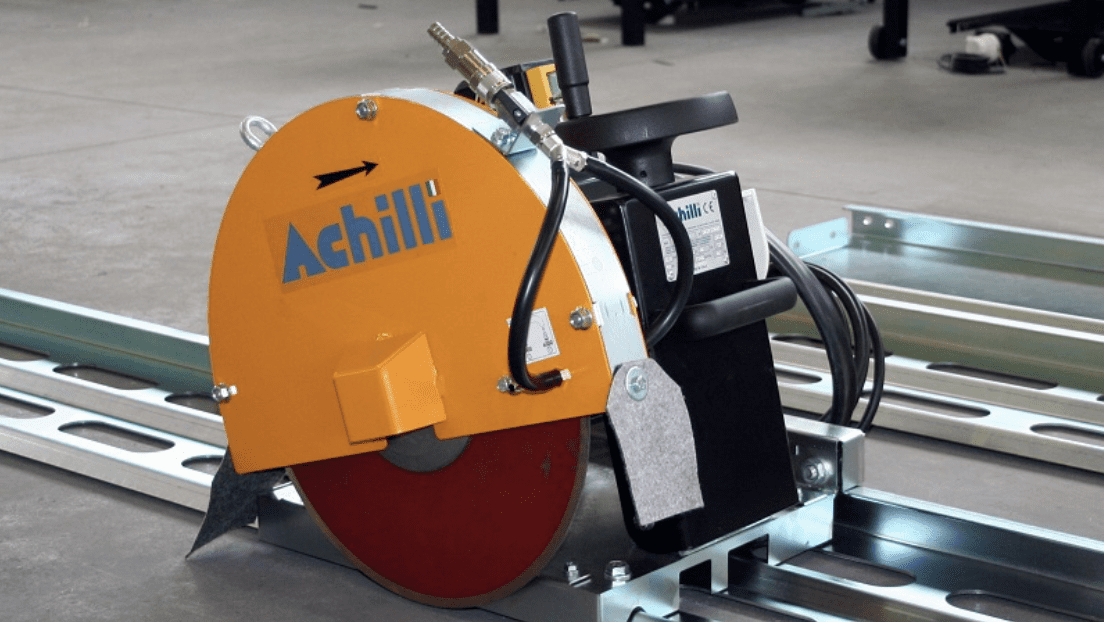

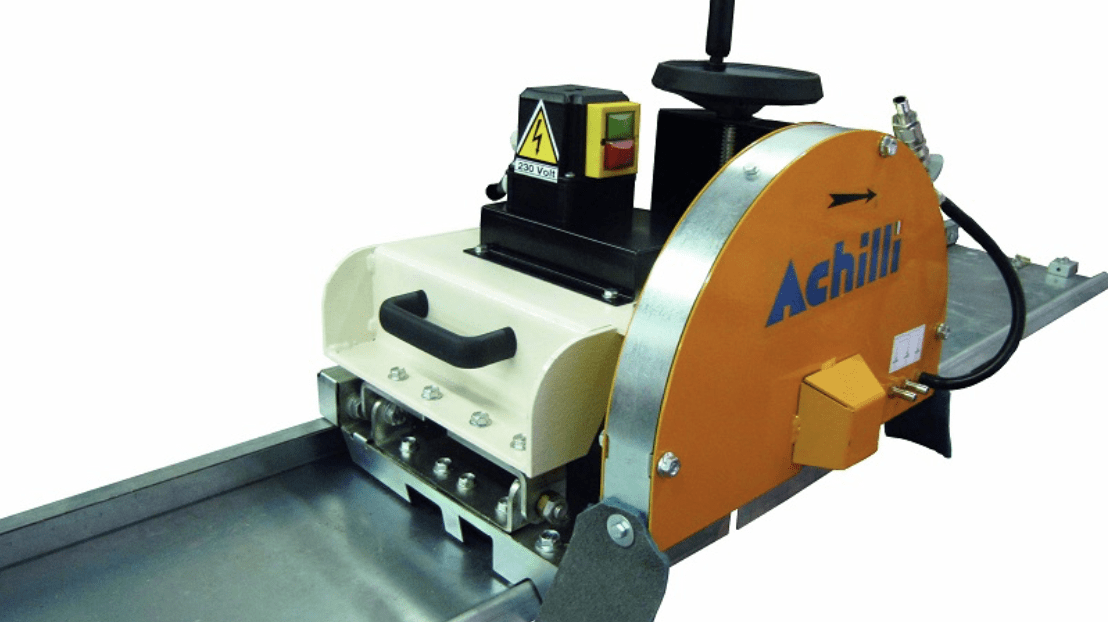

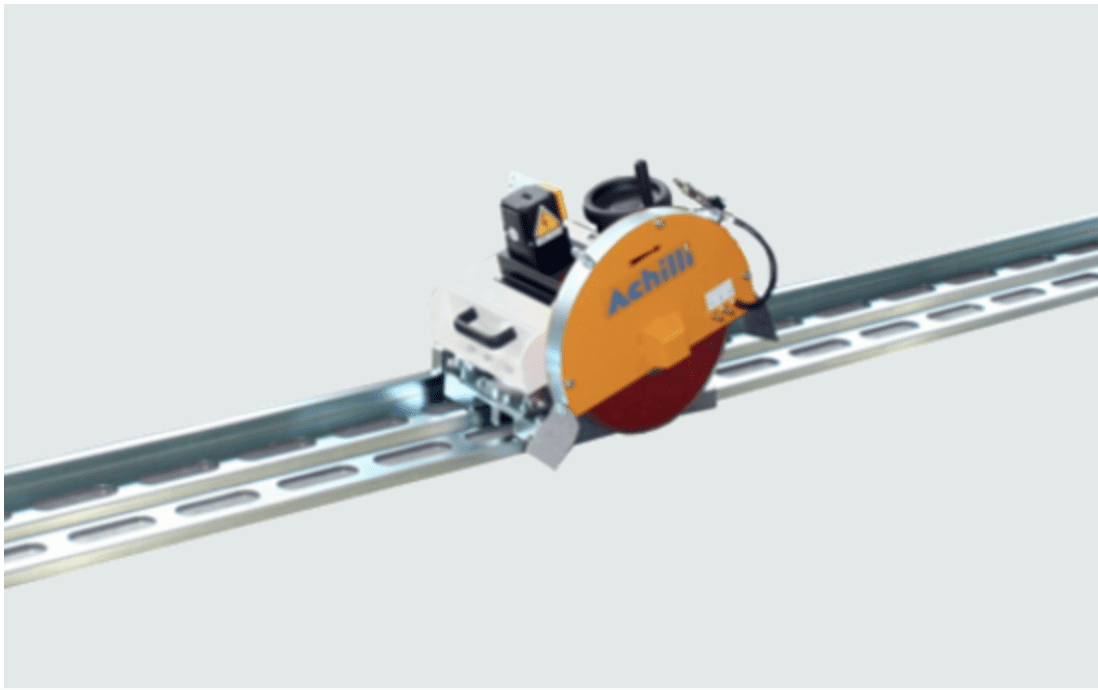

Portable rail saw to cut small and large slabs
A portable track saw on mobile rails. With a small investment, you can cut large slabs by placing the rails directly on the slab.
Technical Data
| Description | Data |
|---|---|
| Rail Length | 1250 mm x 3pz. / 2500mm / 4000mm |
| Diamond blade diameter | 300-350 mm |
| Max. cutting depth | 40 mm |
| Main motor power | 2.2kW = 3HP 1ph. |
| Main motor rotation speed | 1400 o 2800 rpm 50Hz – 1700 o 3400 rpm 60Hz |
| Standard voltage / frequency | 230V-50/60Hz |
Advantages
An innovative portable track saw on mobile rail TSA:
- Sturdy and compact frame easy to transport and assemble on-site;
- Allows to cut large slabs with a small investment;
- Available with 3 different sets of rails:
- 3 x 1250mm
- 1 x 2500mm
- 1 x 4000mm
