Machine for Cladding

The main feature of SKFR-05 MACHINE FOR CLADDING is the extreme flexibility in the processing that allows to obtain holes and kerfs, depending on the configuration required by the customer.

All types of cladding with a single machine.

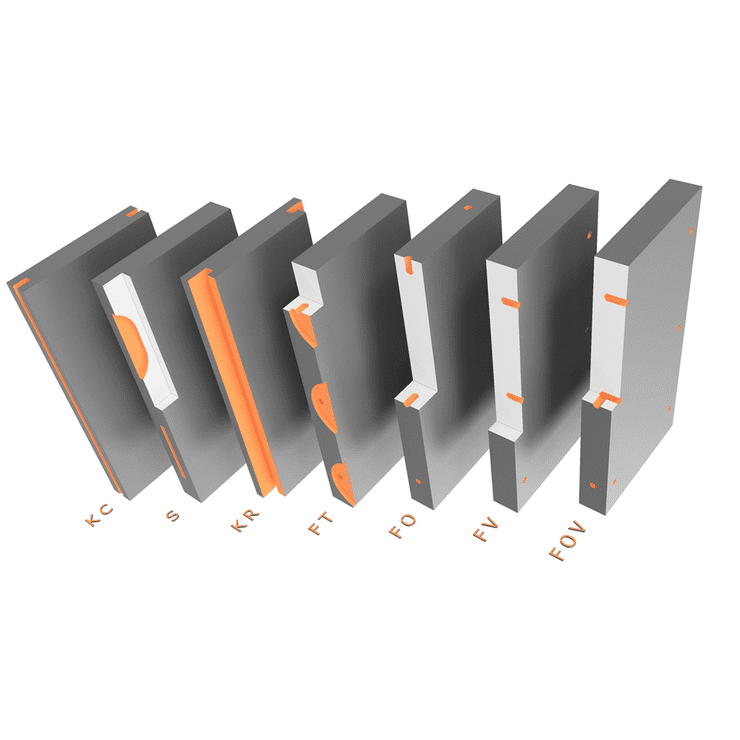

Kerfs, slot cuts and drilling.

Technical Data

Material widthDa 150 a 1000 mm
Material lengthDa 200 a 1500 mm
Maximum thickness of materialDa 20 a 80 mm
Cutting blade diameter180 mm Foro/hole diam 22.23 mm
Drill bit diameter Da 6 mm a 12 mm
Blade / drill motor power10 - 40 mm
Blade / drill motor power1,5 kW / ciascuno
Installed power 10 kW
Water Consumption5 l/min
Compressed air consumption30 l/min
Overall Dimensions4100x3100x2100/h mm
Machine weight3 t.


  • – Processing of all sides;
  • – Processing also different in dimensions and distances for a single load;
  • – Extreme flexibility;
  • – Configurable with tools based on specific needs;
  • – Adjustable speeds according to the hardness of the material;
  • Table with belts conveyor to load the machine continuously.
