Splitting Machine

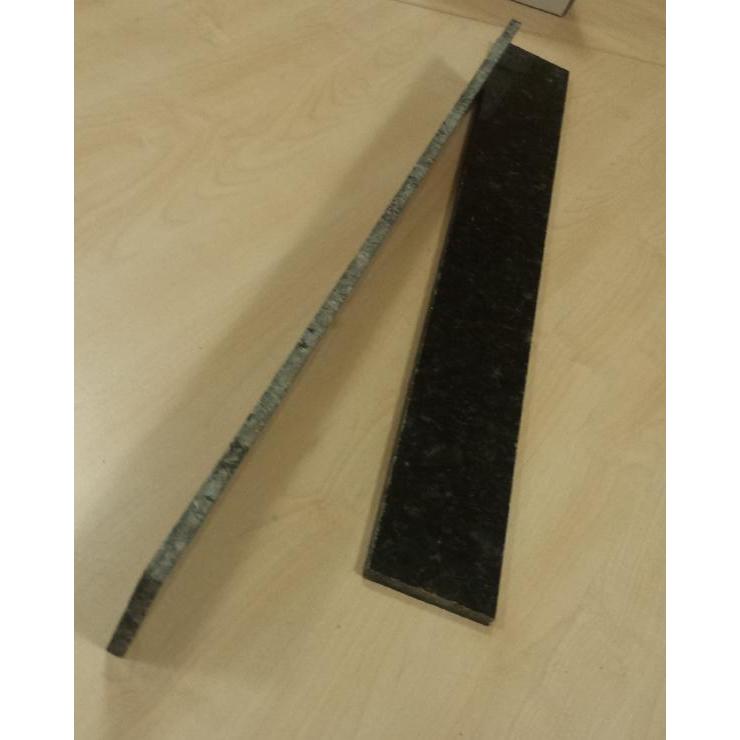

The DONATONI SC2 splitting machine is designed to split marble and granite workpieces with MAX 150 mm widths. It makes high precision cuts of specific products (such as skirtings, inserts, samples, etc.).
Technical Data
| TYPE | SC2/2G | SC2/4G | SC2/6G |
|---|---|---|---|
| Useful cutting width | 75-150 mm | 75-150 mm | 75-150 mm |
| Table useful length | 3350 mm | 3350 mm | 3350 mm |
| Number of spindle units | 2 | 4 | 6 |
| Maximum blades diameter | 400 mm | 400 mm | 400 mm |
| Maximum cutting thickness | 30 mm | 30 mm | 30 mm |
| Obtainable minimum thickness | 7 mm | 7 mm | 7 mm |
| Blade/blades motor power | 7.5 kW | 7.5 kW | 9 kW |
| Belt motor power | 0.75 kW | 0.75 kW | 0.75 kW |
| Water consumption | 20 l/min | 20 l/min | 20 l/min |
| Machine weight | 2600 kg | 2800 kg | 3000 kg |
| Overall dimensions | 3750 x 1900 x 1800/h mm | 3750 x 1900 x 1800/h mm | 3750 x 1900 x 1800/h mm |
FEATURES
they are sturdy and compact, encased with guards that reduce noise, retain process water and ensure operator safety;

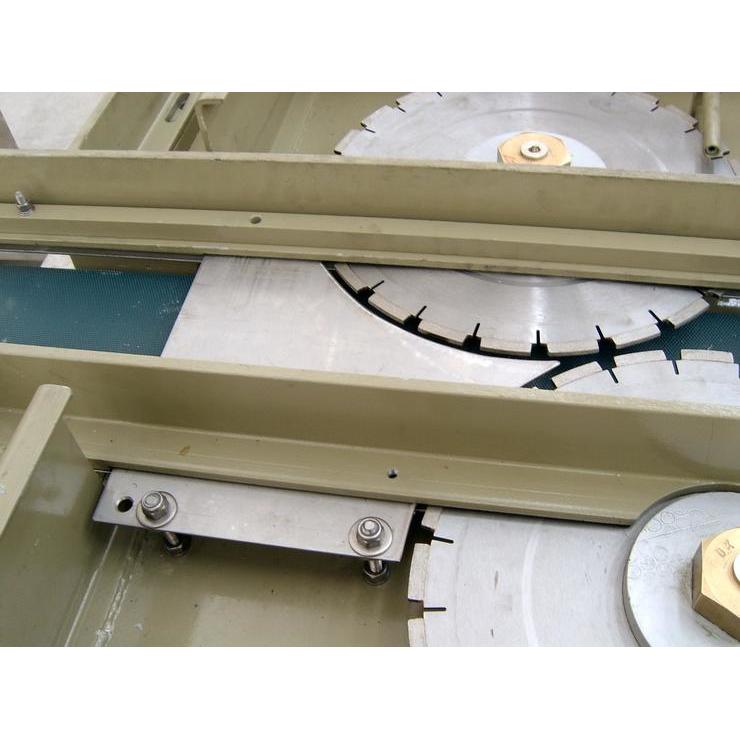

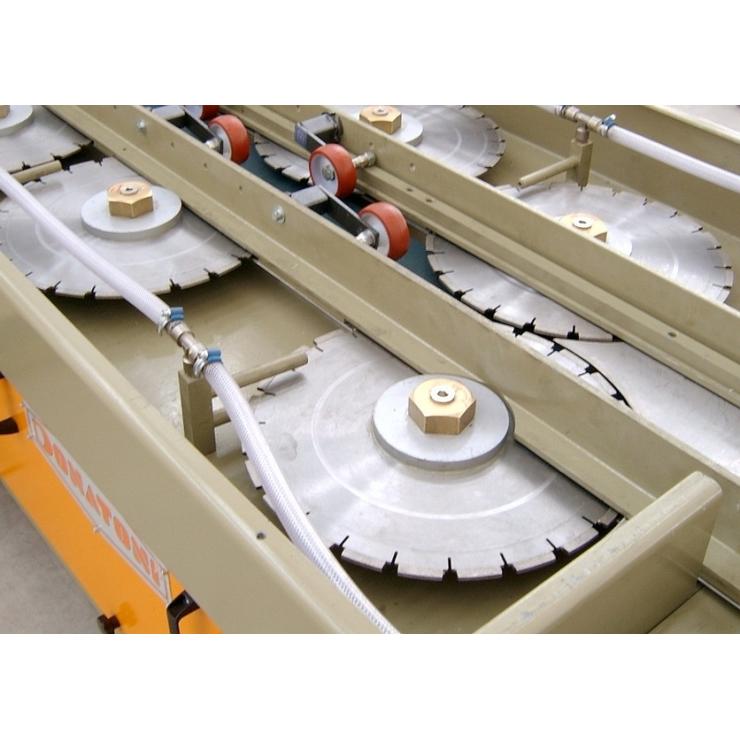

they are composed of two flanks housing the opposed spindle units positioned vertically with respect to the cutting surface so that the machine operator can supervise the process;
the cutting precision is guaranteed because the spindles remain stationary and adjustment of thickness is possible through vertical table motion, shown on a specific display;
marble workpieces can be cut using 4 spindle units; granite and hard stones can be cut using 6 spindle units;
a device automatically slows down conveyor belt speed during the cutting process whenever any of the cutting units exceeds the safety limit;
the granite model includes, on entry, a motorised pneumatic presser unit that makes the workpieces adhere strongly to the table so that cutting disks can press on the material with greater force;
they can be equipped with an inverter for special marble and granite cutting requirements in order to adjust spindle unit RPMs;
on request, the machine can be equipped with approximate 1 meter long entry and output idle roller tables.
