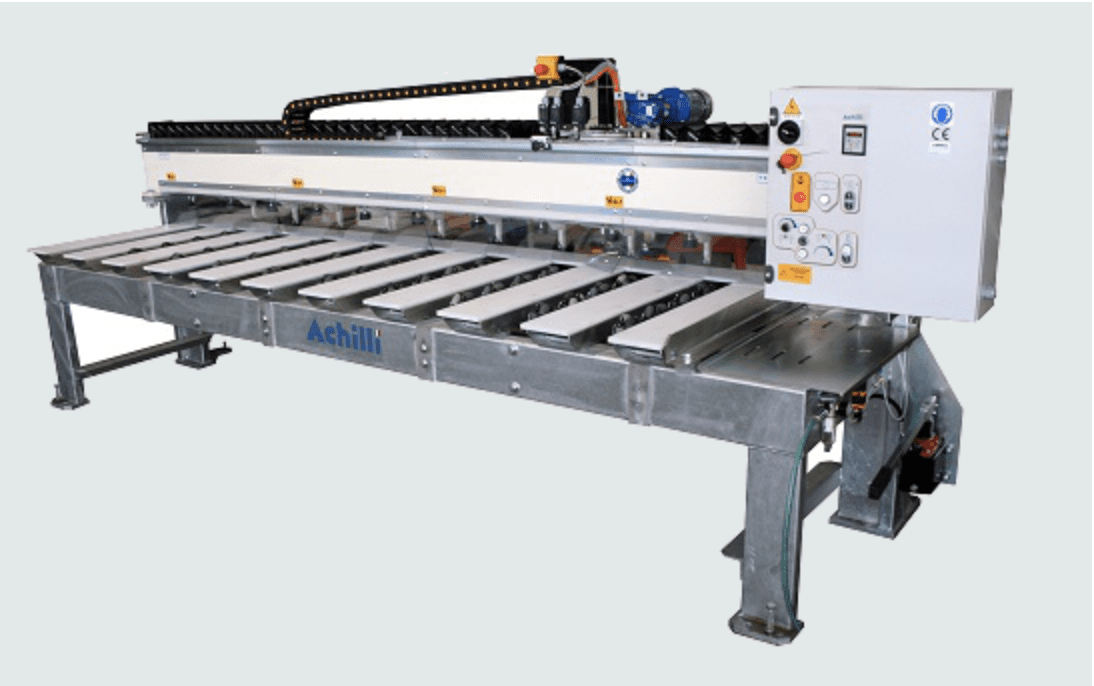

Miter Saw for The Professional Tilted Cutting At 45º
Professional stone saw for tilted cuts designed to work slabs “face down”, it allows to perform perfect 45 degree cutting even on uncalibrated slabs. No width limitation of the slab to process; even the most narrow strips can be machined thanks to the special pneumatic pistons blocking the stone. The maximum cutting precision is guaranteed by the head travel on linear guides fitted with recirculating ball slides and by the position of the blade cutting from bottom upwards.
Technical Data
| Description | Data |
|---|---|
| X axis travel | 3300 / 3700 mm |
| Worktable dimensions | 3300/3700 x 1000 mm |
| Diamond blade diameter | 350-400-450 mm |
| Min/Max stone thickness | 0-80 mm (with pneumatic slab stops) |
| Main motor power | 5,5kW = 7,5HP trifase |
| Main motor rotation speed | 400 rpm (50Hz) - 1700 rpm (60Hz) |
| Main motor rotation speed (opt.) | 800 – 3400 rpm |
| Standard voltage/ frequency | 3ph. 400V-50/60Hz 230V-60Hz |
Advantages
MSA professional miter saw for tilted cuts:
- Steel frame with hot-dip galvanizing treatment for maximum resistance to wear and rust;

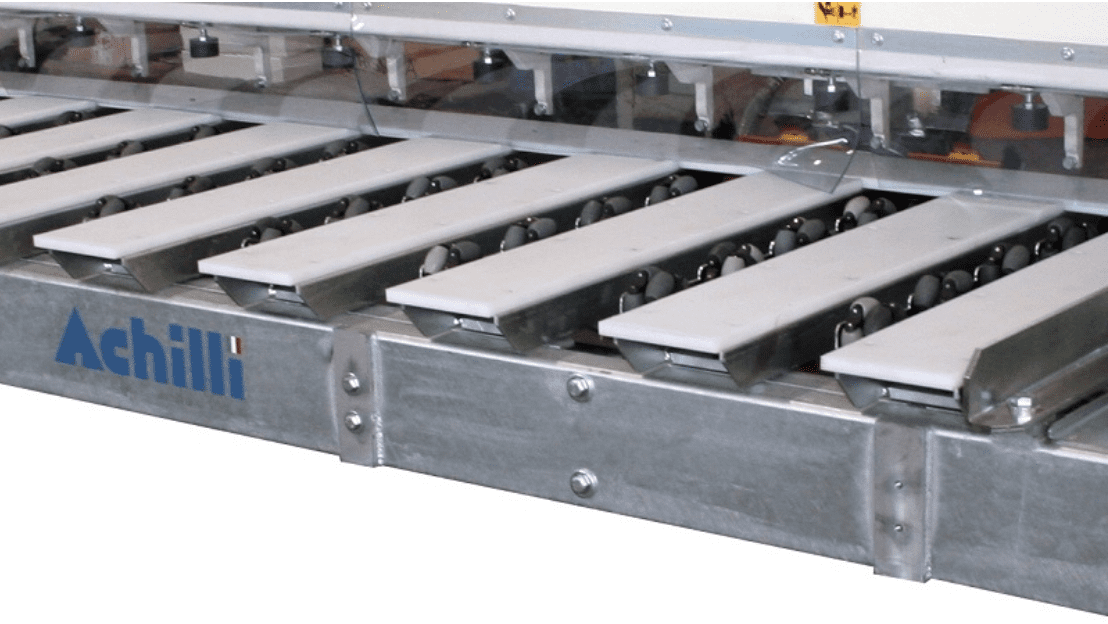

- Worktable made of anti-scratch plastic material slats;
- Available in two models: useful cut 3300mm or 3700mm;

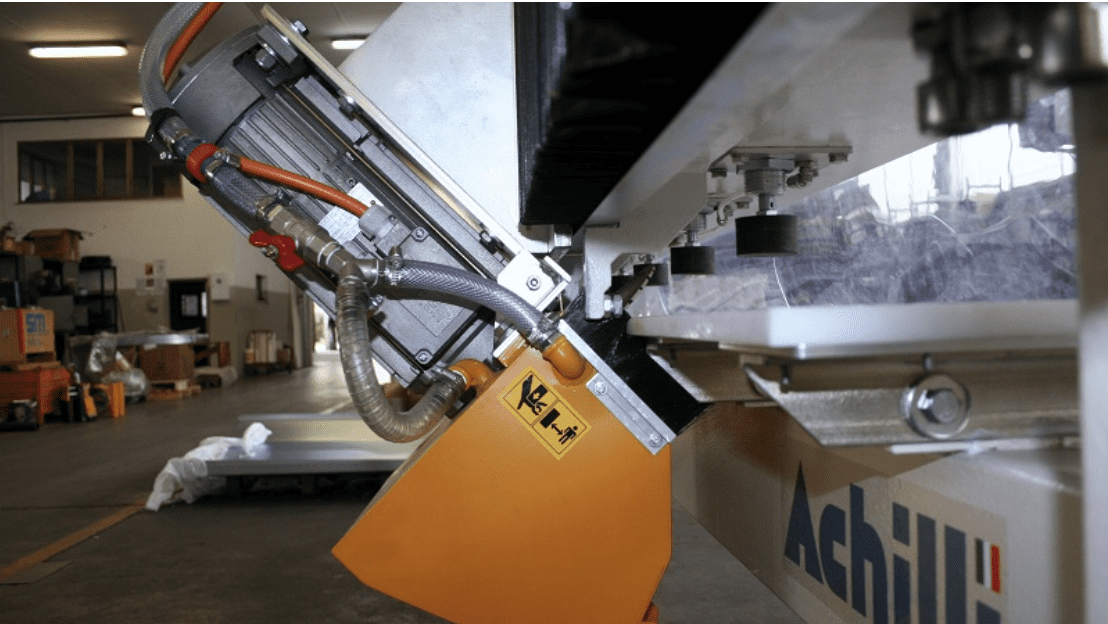

- Maximum cutting precision is guaranteed by the head travelling on linear guides fitted with recirculating ball slides automatically lubricated;

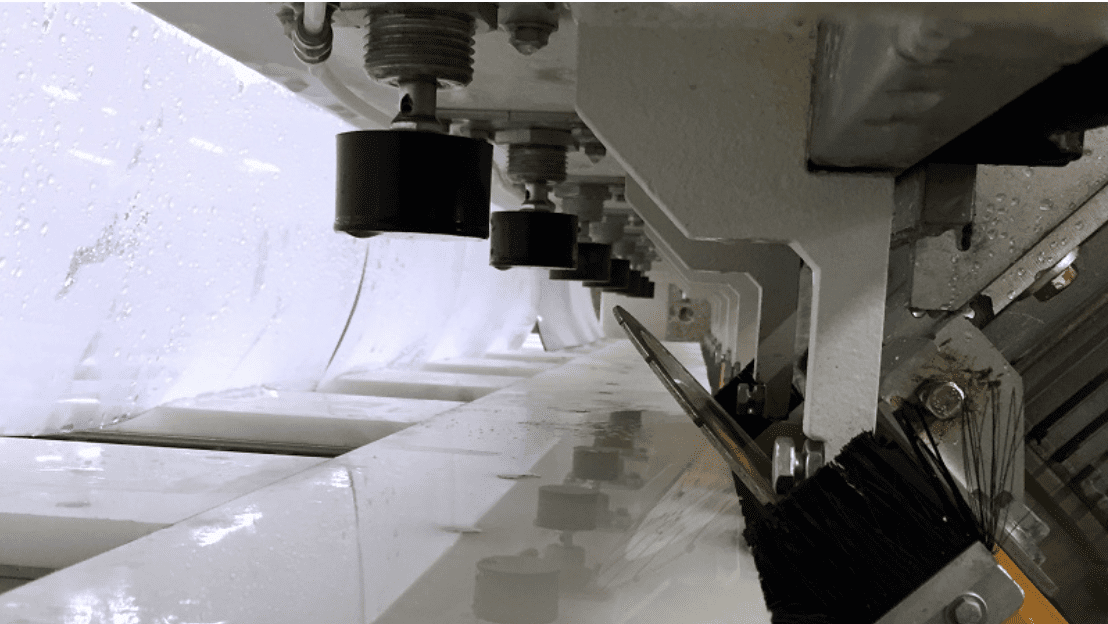

- 10 pneumatic pistons and 3 slab stops to secure even the smallest workpieces in place during machining;
- Pneumatic pop-up slab stops to cut thin ceramic and sintered material slabs.
