CNC Bridge Saw for Interpolated Angle Cutting in All Directions

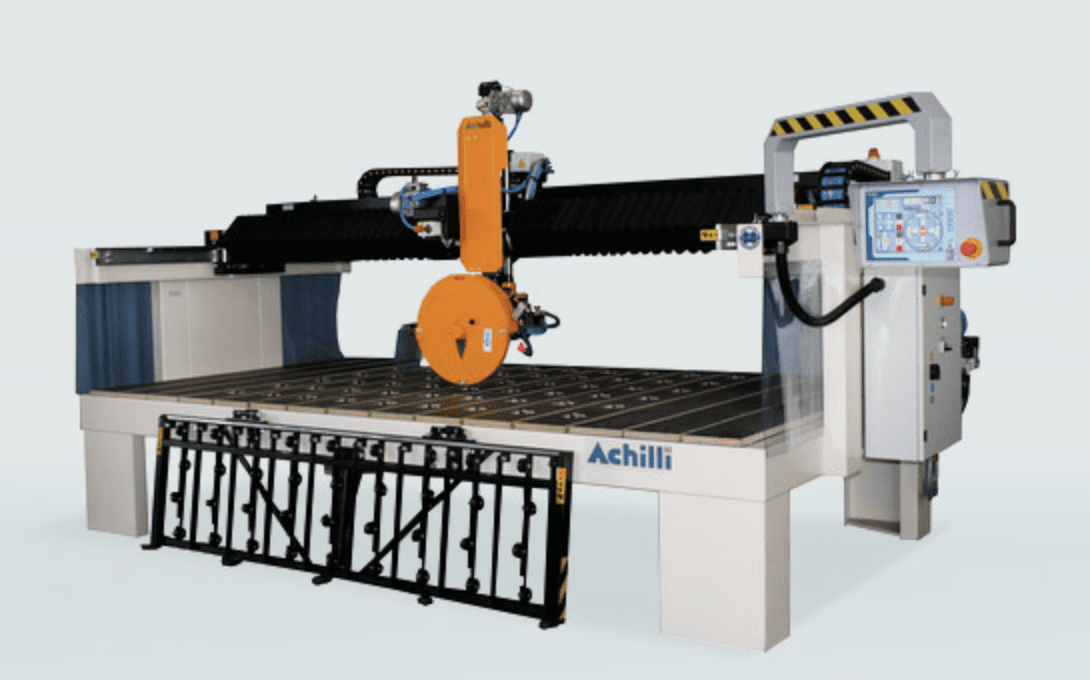

MBS TS is our best-selling bridge saw; the perfect combination of simplicity flexibility and durability. The installation is easy and does not require foundation. The machine is equipped with a compressed, rectified and chromed “active beam” guaranteeing the utmost accuracy. The rotation of the head allows to perform interpolated angle cutting in all directions.
Technical Data
| Description | Data |
|---|---|
| X axis travel | 3000 / 3500 / 3600 mm |
| Y-axis travel | 1930 mm |
| Z-axis travel | 380 mm |

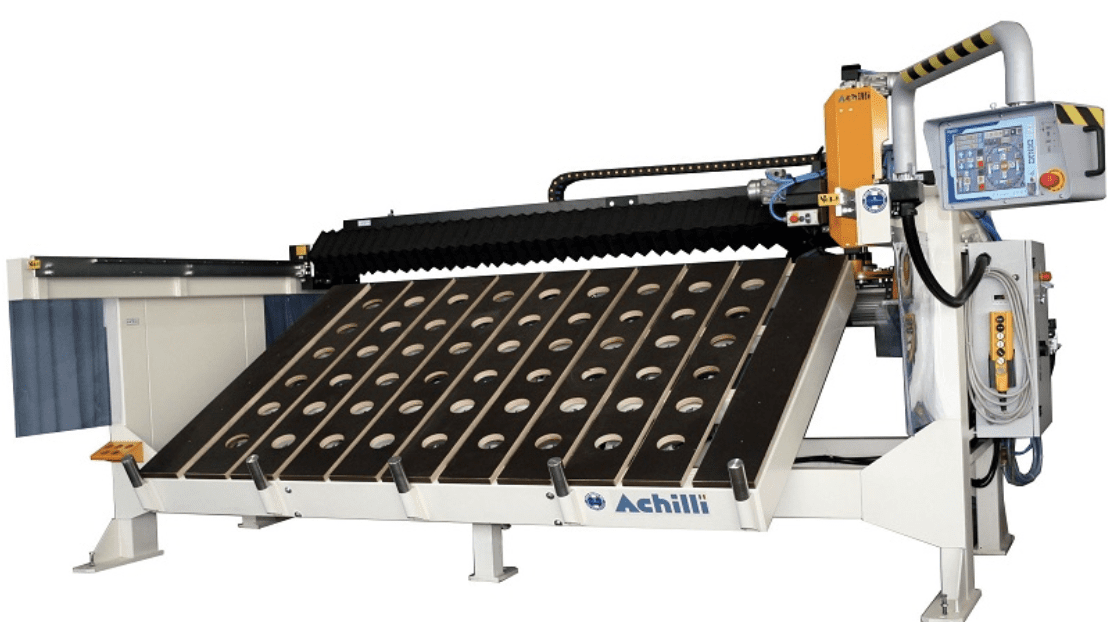

| Worktable dimensions | 4600x2200 mm |
| Max. diamond blade diameter | 350-500 mm |
| Blade bore size | 50 mm |

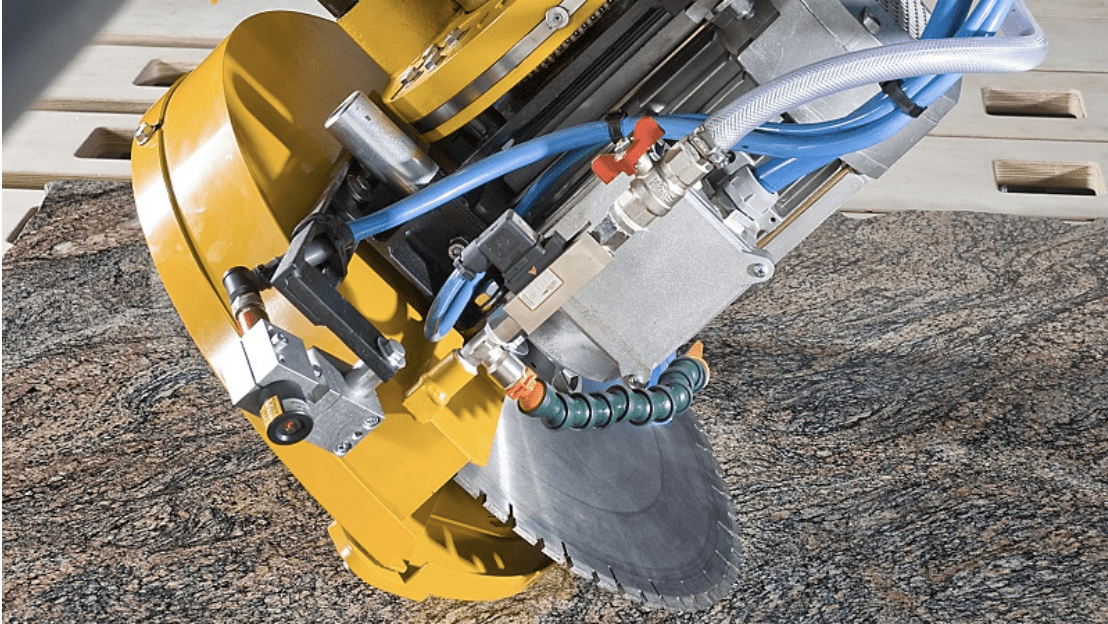

| Manual head tilt | 90° - 45° |

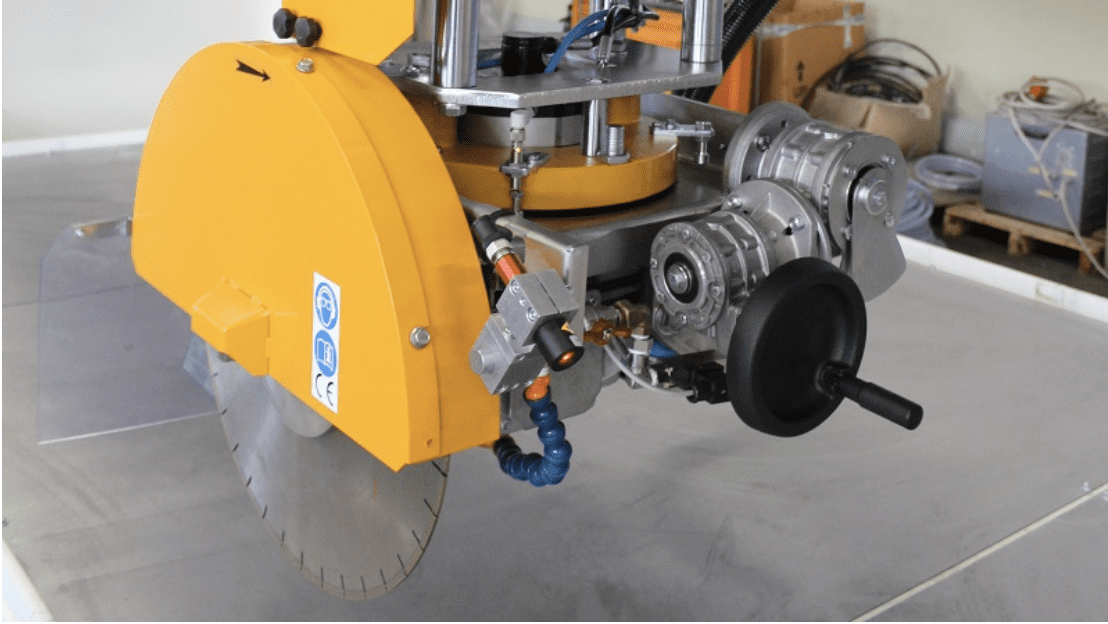

| Head rotation | 0°- 90°- 180°- 270° / 0°- 340° |
| Main motor power | 7.5kW = 10HP / 11kW = 15HP |
| Main motor rotation speed | 1400 rpm 50Hz – 1700 rpm 60Hz |
| Main motor variable speed (optional) | 700 - 3400 rpm |
| Standard voltage/frequency | 400V-50/60Hz / 230V-60Hz 3ph. |
Advantages

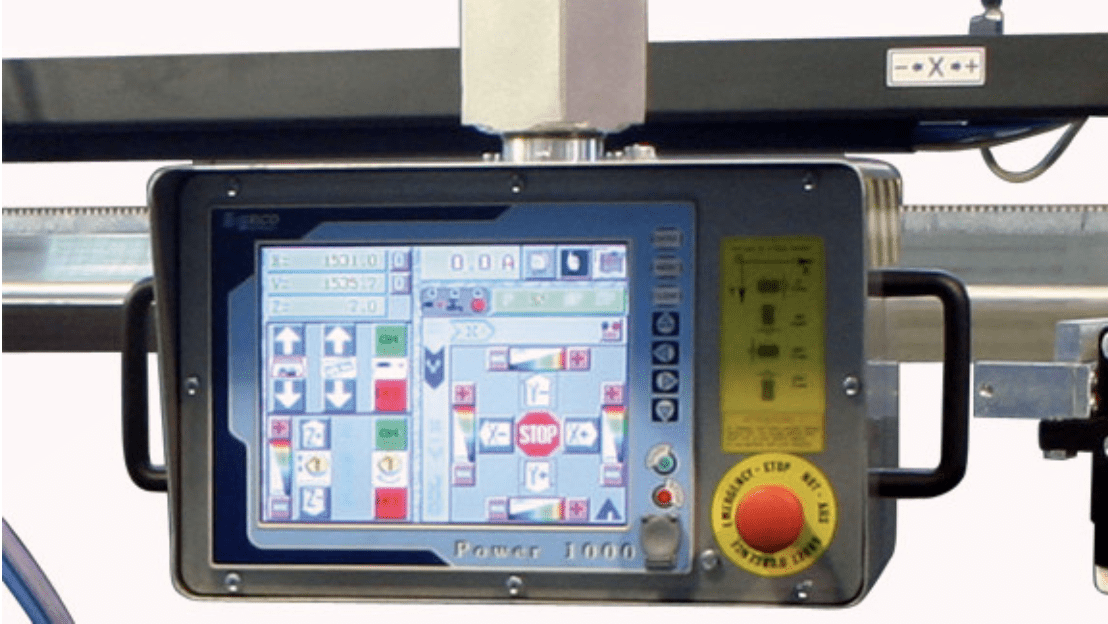

MBS TS is our historical monoblock bridge saw with CNC axis control unit for cuts programming:
- Fully customisable according to customer requirements;
- Monoblock structure for easy installation;
- The perfect cutting precision is guaranteed by the special design of the beam;

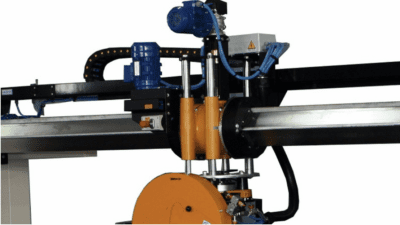

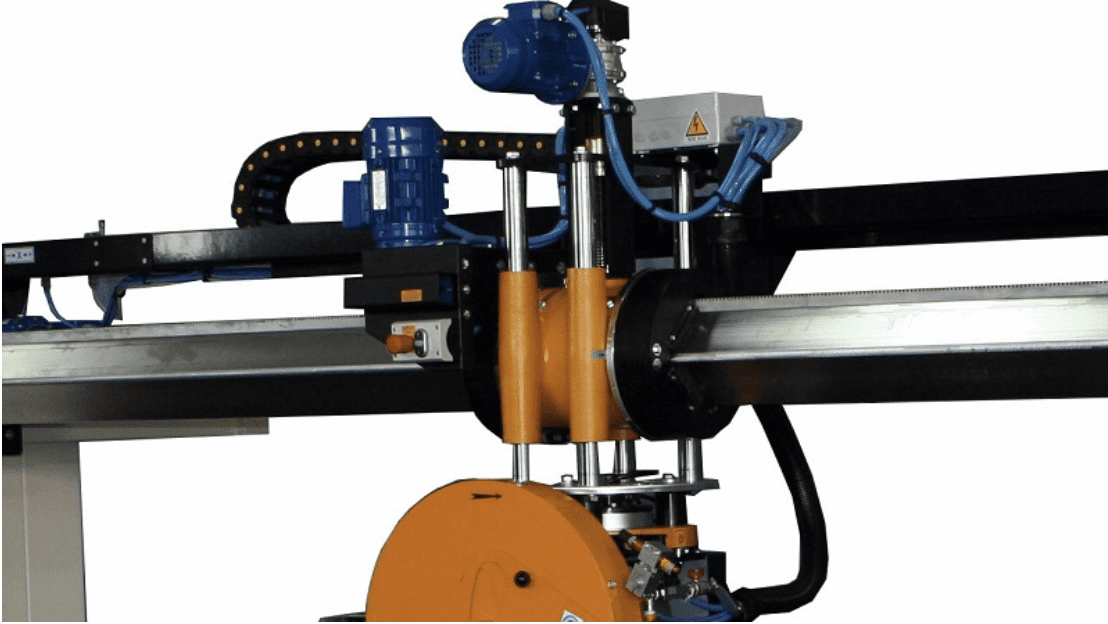

- Manual or automatic head rotation to perform interpolated angle cutting in all directions.
