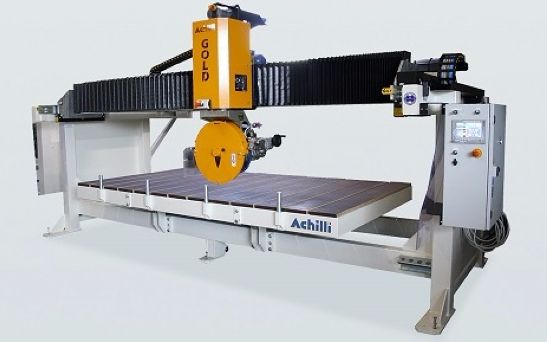

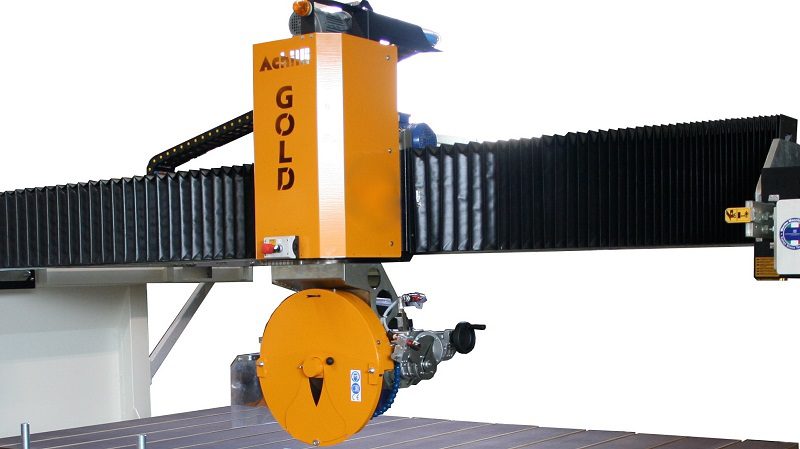

High precision 4 axes monoblock bridge saw

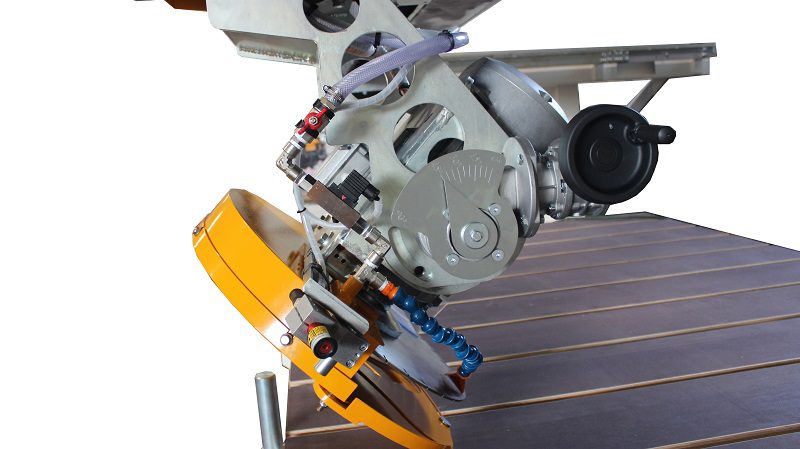

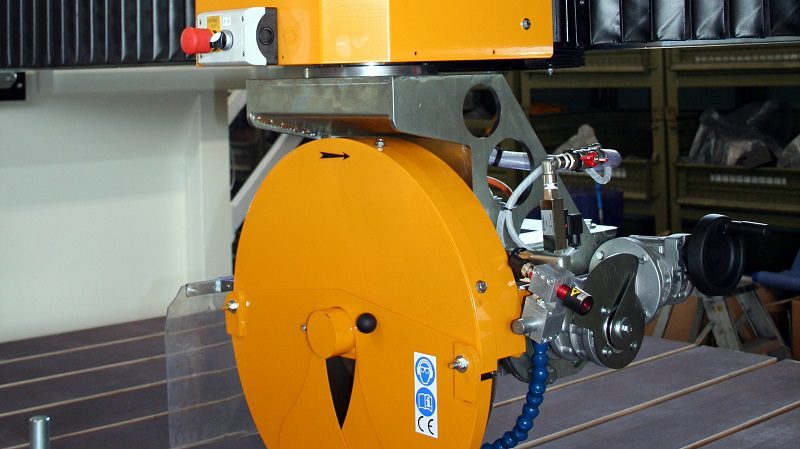

New monoblock bridge saw with automatic head rotation and motorised head tilt from 90° to 45°. High precision head motion on linear guides with recirculating ball slides.
Technical Data
| Description | Data |
|---|---|
| X axis travel | 4000 mm (13'1") |
| Y-axis travel | 2350 mm (7'8") |
| Z-axis travel | 300 mm (12") |
| Worktable dimensions | 4800x2200 mm (11'5"" x 7'2") |
| Max. diamond blade diameter | 350-525 mm (14"-20") |
| Blade bore size | 50 mm |
| Head tilt | 90° - 0° |
| Head rotation | 0°- 360° |
| Main motor power | 11kW = 15HP |
| Main motor rotation speed | 1400 rpm 50Hz – 1700 rpm 60Hz |
| Main motor variable speed | 800 - 3000 rpm |
| Standard voltage/frequency | 3ph. 400V-50/60Hz 230V-60Hz |
Advantages
GOLD is the new generation 4 axis bridge saw for cutting stone slabs:
- Customizable according to customer requirements;
- Monoblock structure for easy installation (does not require foundation);

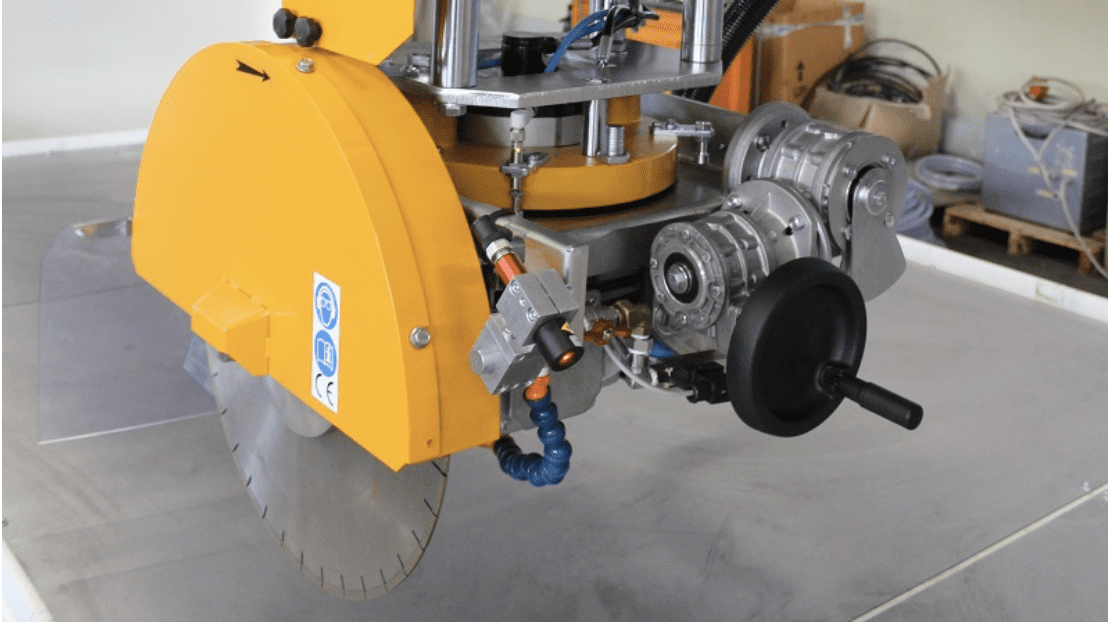

- Automatic head rotation;
- Precision Stone Cutting:Â extremely accurate and consistent stone sawing.

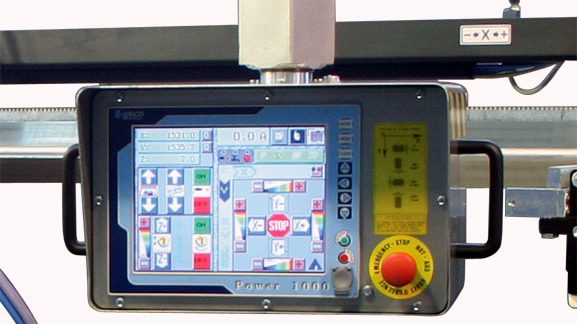

- Simple to Operate: GOLD is capable of fully automatic operation or can be operated in a semi-automatic mode to give the operator full control of sawing operations;

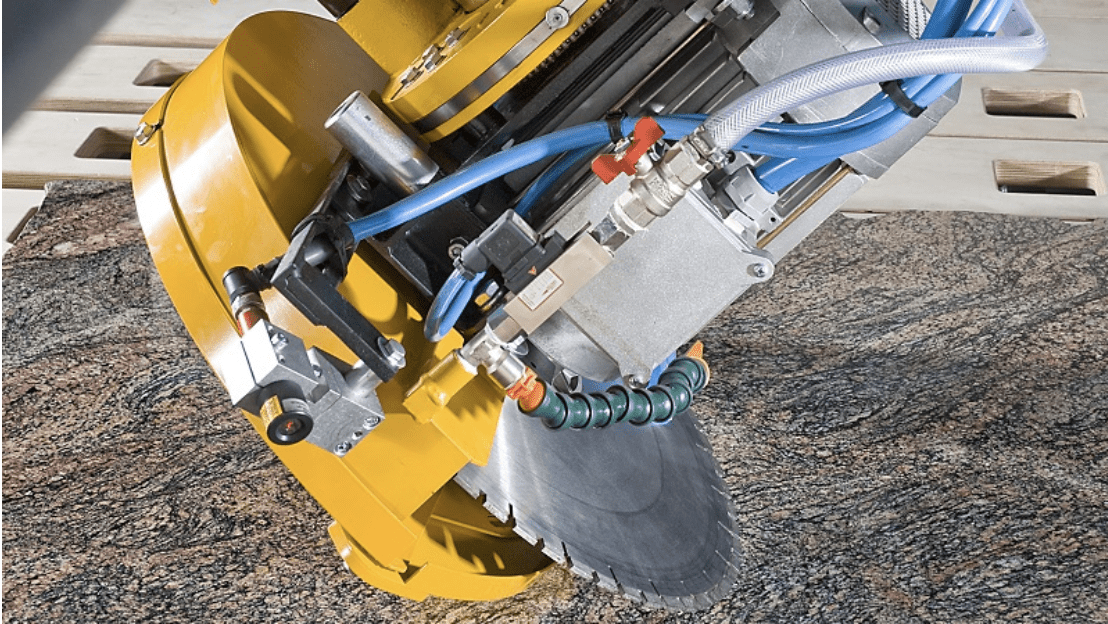

- Manual head tilt from 90 to 0 degrees.

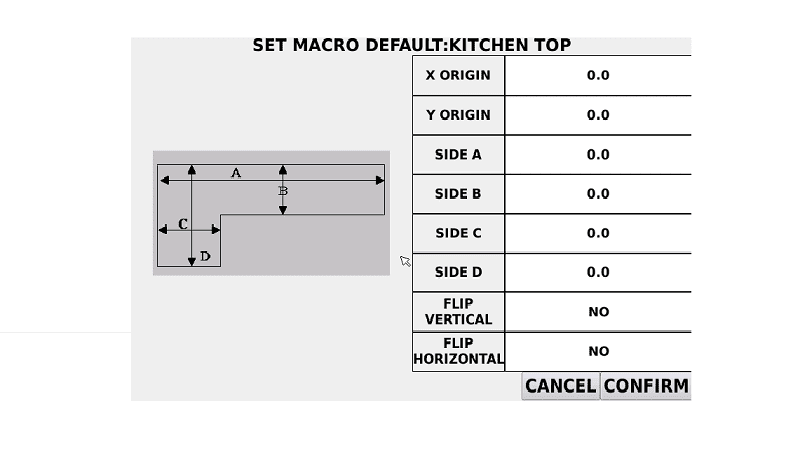

- Pre-loaded parametric figures such as hexagon, octagon, kitchen top, trapezium, polygon, etc.

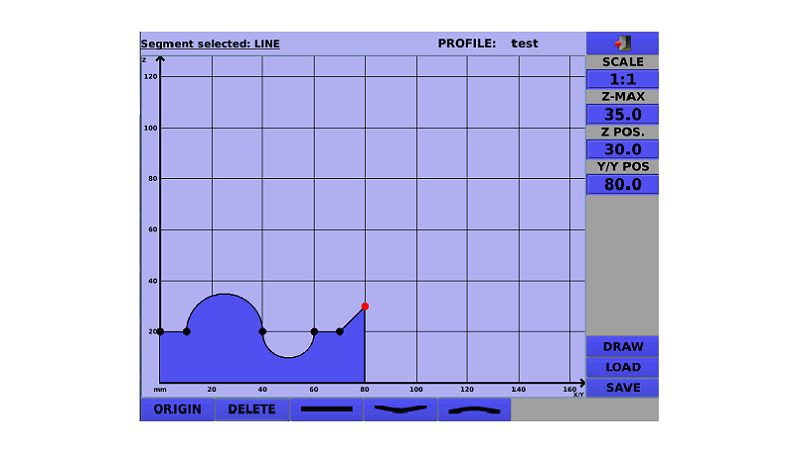

- Profiling environment of the CNC to create artistic frames and decorations.
