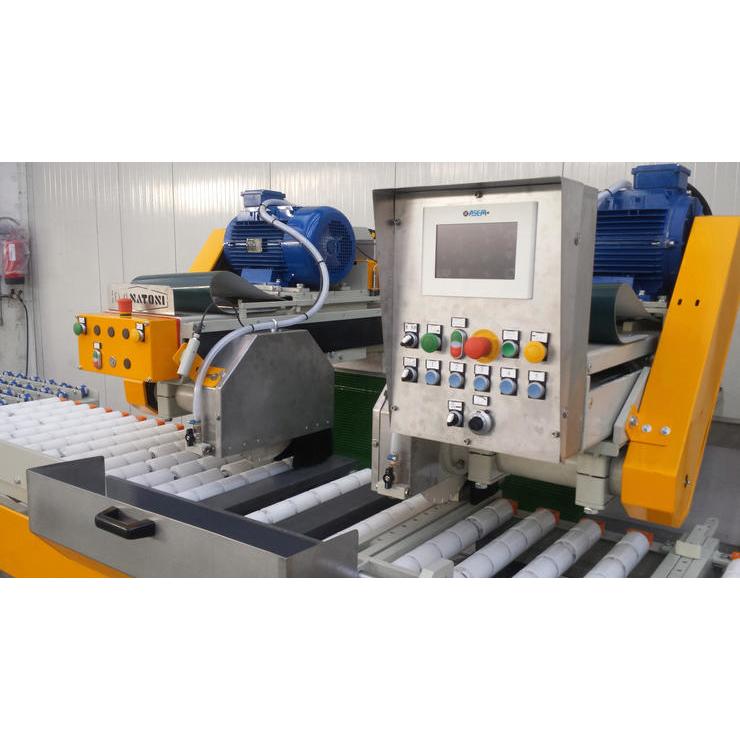

Double Cross-Cutting Machine
The DONATONI cross cutting machine type DM2 combines the possibility of cutting with two units with the precision of positioning of the moving spindle, employing advanced technologies when cutting strips of marble and granite. It finds its application in consecutive cutting off different sizes and it is ideal for recovering scrap material.
Technical Data
| TYPE | Data |
|---|---|
| Useful cutting width | 610 mm |
| Maximum cutting thickness | 100m |
| Blade diameter | 400mm |
| Type of table | A rulli folli/Idle rollers |
| Adjustable distance between 2 blades | MIN 150 mm - MAX 610 mm |
| Blade/blades motor power | 9,2 kW per disco/blade |
| Installed power | 21kW |
| Water consumption | 40 l/min |
| Compressed air consumption | 10 l/min |
| Overall dimensions | Overall dimensions |
| Overall dimensions | 2,45 t circa |
FEATURES

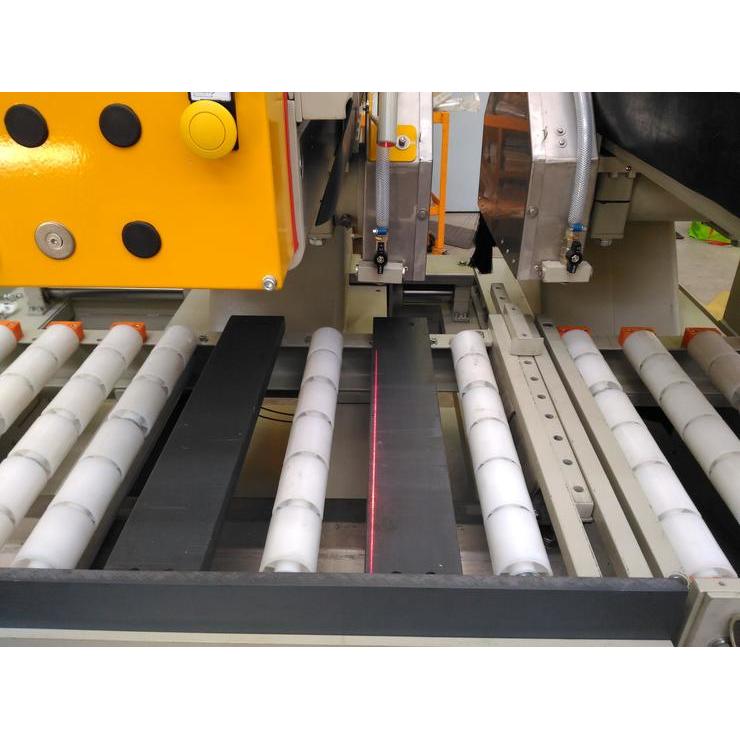

- Idle roller table;
- Fixed cutting unit and a mobile cutting unit;
- Units can work separately or synchronised;
- Precision and speed in positioning of the mobile unit controlled by touch screen;
- Random measure cutting with joystick
- Cutting with push buttons preset at different sizes;
- Utmost production flexibility
- Belt-driven power transmission (no direct power transmission to motor).
