Portable Saw with Stone, Marble & Granite

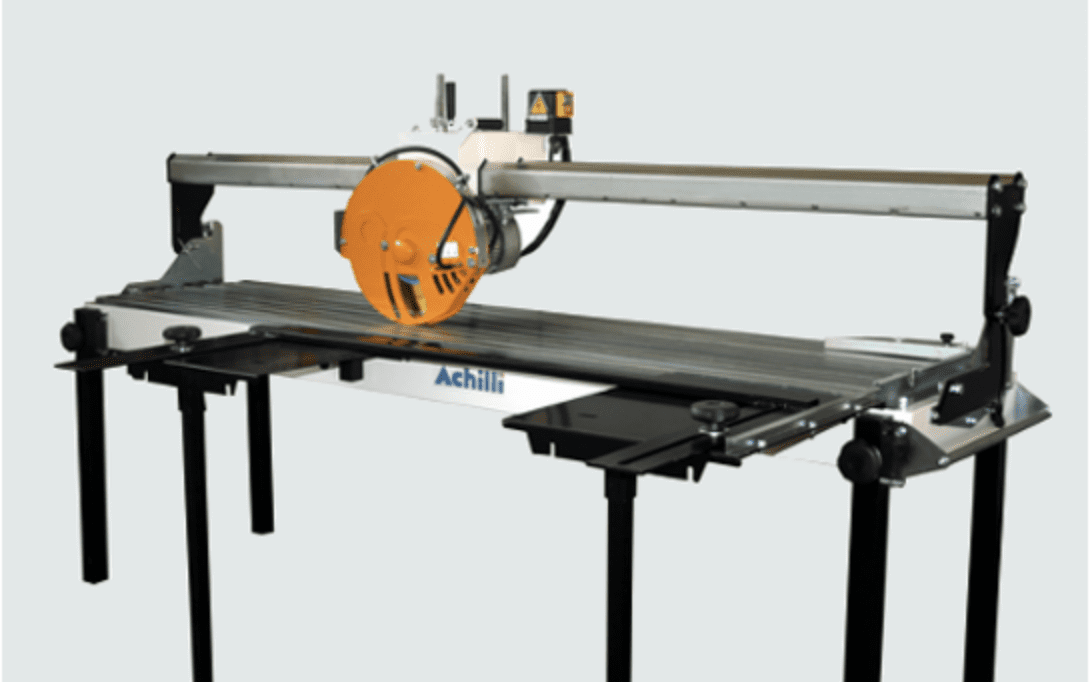

Portable stone saw with a sturdy structure to cut marble and granite slabs with extraordinary accuracy. The innovative optional Slot device makes it a multipurpose machine for performing horizontal cutting, profiling, and polishing of straight slab edges.
Technical Data
| Description | Data | ANR-HT |
|---|---|---|
| Useful Cut | 600–800–1000–1300–1500–2000 mm | 600–800–1000–1300–1500–2000 mm |
| Diamond blade diameter (not included) | 250-300-350 mm | 400-450-500mm |
| Blade bore size | 25,4 mm | 25,4 / 30 mm |
| Motor power | 2.2kW = 3HP 1ph. / 3Kw = 4HP 3ph. | 3.7kW = 5HP 3ph. |
| Motor rotation speed | 2800rpm 50Hz – 3400rpm 60Hz | 400rpm a 50Hz – 1700rpm a 60Hz |
| Standard voltage/frequency | 400V-50/60Hz | 400V-50/60Hz |
Advantages
ANR is a sturdy and accurate saw for stone slabs:
- Special beam design to attain a perfect cutting precision;
- Water tank with built-in recycling pump for blade cooling;
- Optional device to perform horizontal cutting and profiling of slab edges.
