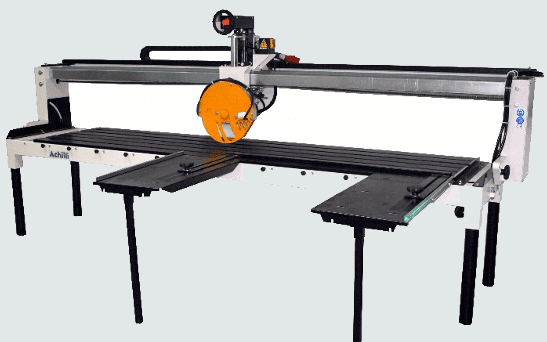

Stone cutting saw with variable speed for stone and ceramic

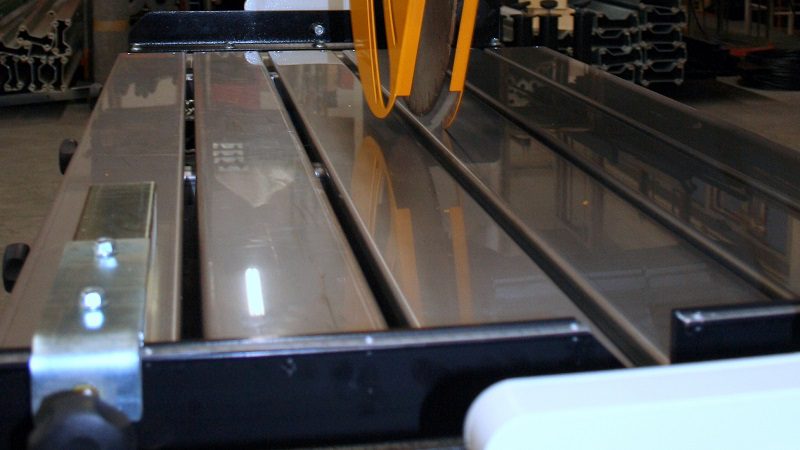

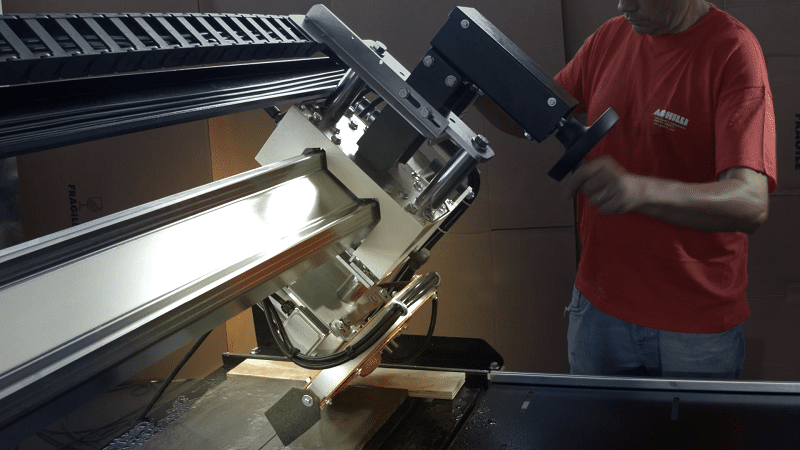

Compact, essential and sturdy bench saw with fixed bridge; the bridge tilts and the water tank with built-in recycling pump makes it the perfect saw for the stone fabricator. It is equipped with 1 or 2 side extension tables to enlarge the working surface and facilitate the positioning of the slabs.
Technical Data
| Description | Data | AFR-C |
|---|---|---|
| Useful Cut | 600–800–1000–1300–1500–2000 mm | 600–800–1000–1300–1500–2000 mm |
| Diamond blade diameter (not included) | 250-300-350 mm | 400-450-500mm |
| Blade bore size | 25,4 mm | 25,4 / 30 mm |
| Motor power | 2.2kW = 3HP 1ph. / 3Kw = 4HP 3ph. | 3.7kW = 5HP 3ph. |
| Motor rotation speed | 2800rpm 50Hz – 3400rpm 60Hz | 1400rpm a 50Hz – 1700rpm a 60Hz |
| Standard voltage/ frequency | 400V-50/60Hz | 400V-50/60Hz |
Advantages
AFR-C is a sturdy and accurate saw for stone slabs:
- Special beam design to attain a perfect cutting precision;
- Water tank with built-in recycling pump for blade cooling;
- Optional device to perform horizontal cutting and profiling of slab edges.
