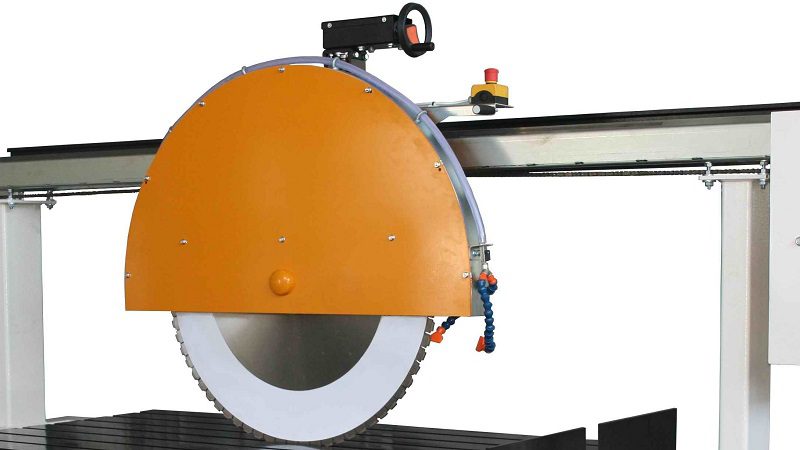

Bench Saw With Sliding Head for Thick Building Materials

Cutting machine with sliding head for thick building materials and stones. It can mount blades up to 1200mm in diameter. The saw is designed to cut traditional bricks, refractory bricks and soft stones.

Technical Data

Useful Cut1500 mm
Diamond blade diameter (not included)825-850 / 1000-1200 mm
Blade bore size25,4 mm (1")
Motor power7.5kW = 10HP 3phase
Motor rotation speed900 rpm 50Hz
Standard voltage/ frequency400V-50 Hz

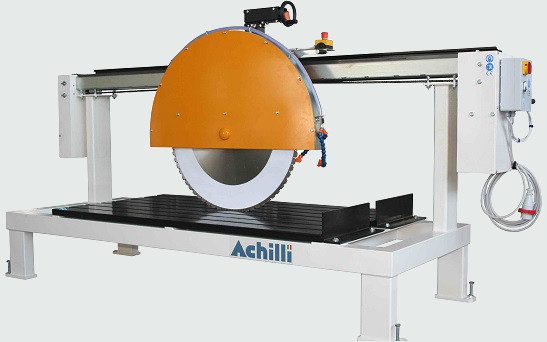

ADR XL is a sturdy and compact bench saw for blocks and thick building materials:

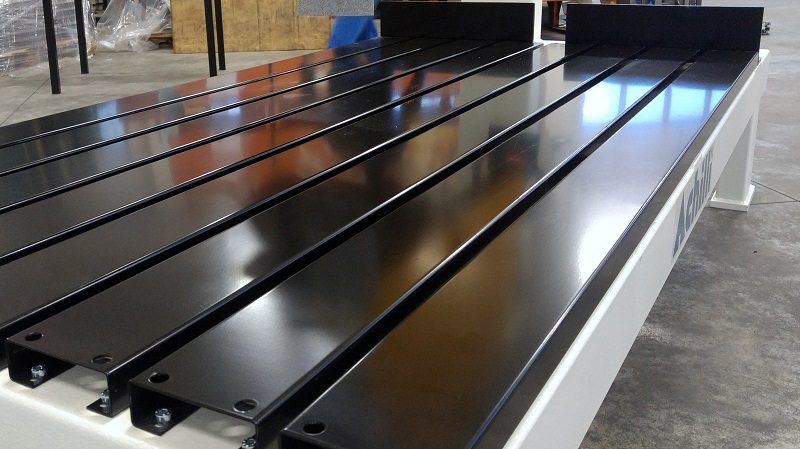

  • Worktable made of galvanized steel rails, finished with epoxy powder;
  • Available with manual or motorized cutting depth adjustment;

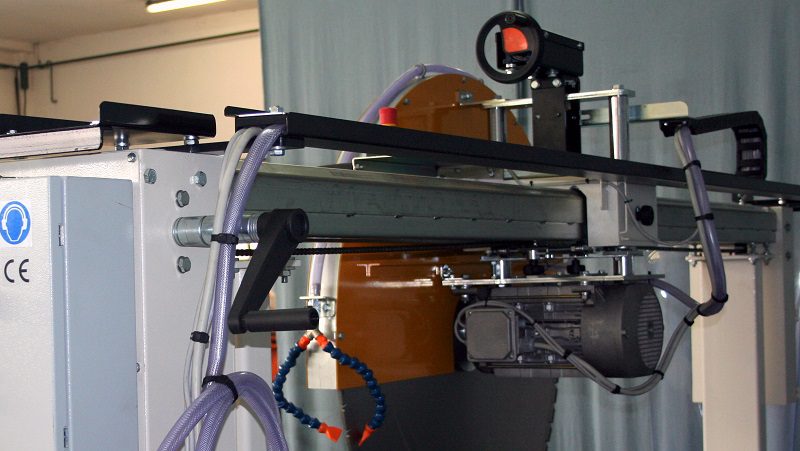

  • Available with manual or motorized head feed.
