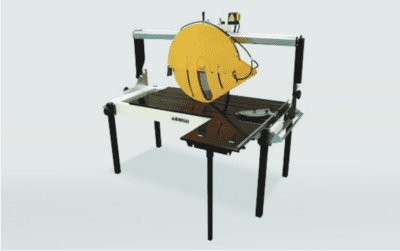

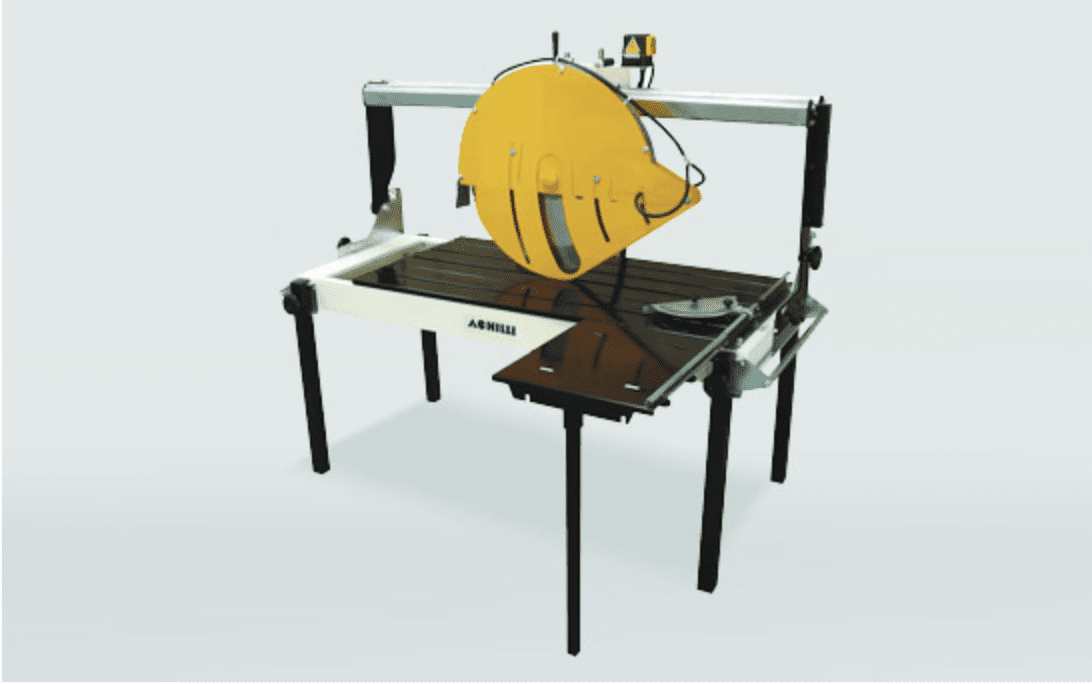

Portable Saw with Sliding Head for Thick Building Materials

Portable bench saw with sliding head for thick building materials. It can mount blades up to 650mm in diameter. Ideal to cut cement blocks and construction materials. Sturdy and compact structure; accuracy and durability are guaranteed.

Technical Data

Useful Cut1000-1300mm
Diamond blade diameter (not included)650 mm (26”)
Blade bore size25,4 mm (1")
Motor power4kW = 5.5HP 3phase
Motor rotation speed1400 rpm 50Hz – 1700rpm 60Hz
Standard voltage/ frequency400V-50 Hz


ADR is a portable cunstruction saw for cutting blocks and builiding materials:

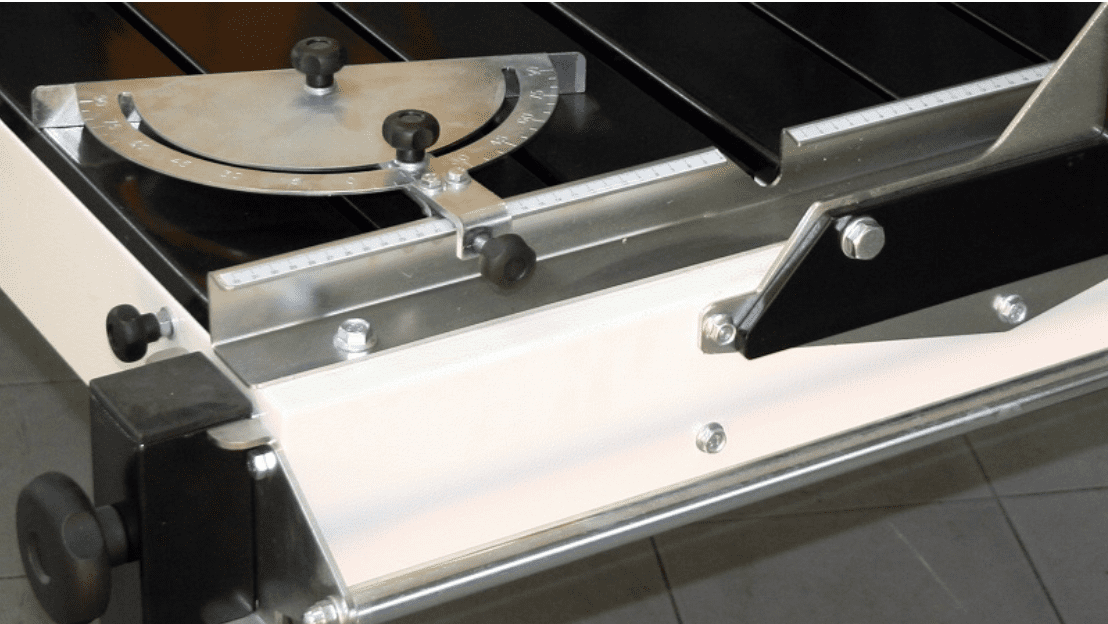

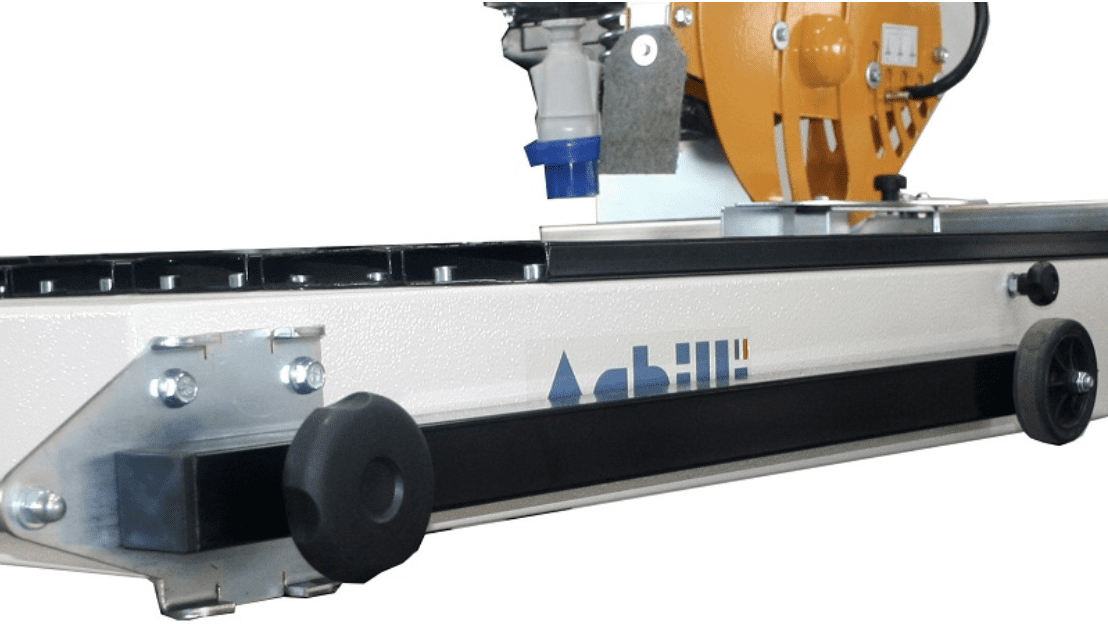

  • Worktable made of galvanized steel rails with transportation handle and adjustable squaring bar;
  • Self-contained water recycling tray and pump;
  • Folding legs for easy transport.
